Wireless Systems & Microphones
| Model: | Pro 88W |
| Manufacturer: | audio-technica |

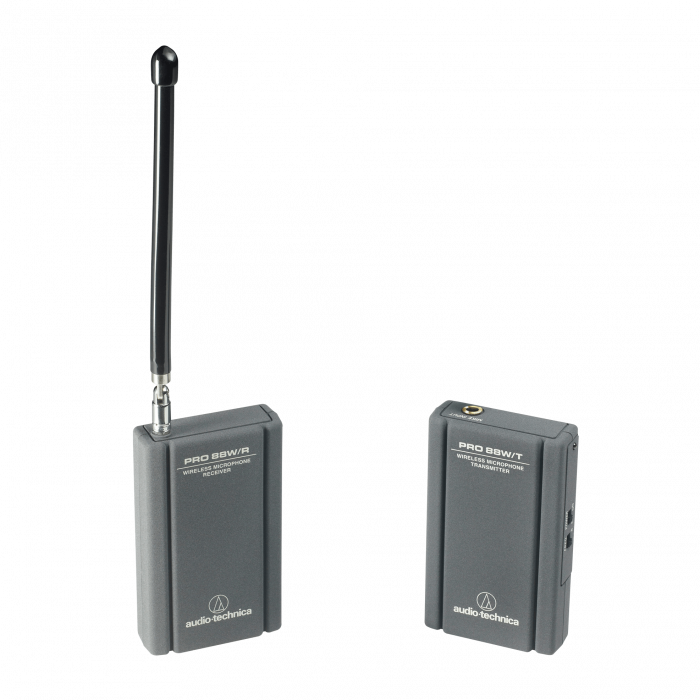

Audio-Technica Pro 88W
Audio-Technica Pro 88W VHF Wireless Systems |
Audio-Technica’s PRO 88W VHF wireless microphone systems are designed for camcorder and other applications requiring a small, easily portable wireless. Equipped with a flexible detachable antenna and a choice of two transmitter and receiver frequencies on each system, the small and inconspicuous VHF wireless system will mount on the light shoe of camcorders or on the back of a camera itself with a Velcro attachment. For fixed installations, a 9V DC input is available on the receiver. Eight VHF channels are available for interference-free operation in virtually any location.
• Provides freedom of movement for video production, computer applications and business presentations
• Two switchable frequencies for interference-free operation
• High-band VHF operation for superior sound
• Normal operating range 100'; up to 300' under optimum conditions
• Durable, flexible antenna can be positioned for best reception
• Real-time monitoring capability with included earphone
• Rugged design and construction with handsome non-reflective finish
• Quick and reliable mounting system for camcorder use
• Receiver and transmitter are each powered by a single 9V battery
Overall System
• Operating Frequencies
• PRO 88W-829, PRO 88W-830
T13 (169.445 MHz & 170.245 MHz)
T24 (169.505 MHz & 170.305 MHz)
T57 (171.045 MHz & 171.845 MHz)
T68 (171.105 MHz & 171.905 MHz)
TVHF (179.400 MHz & 180.600 MHz)
• PRO 88W-R35
T24 (169.505 MHz & 170.305 MHz)
• Modulation Mode: FM
• Frequency Response: n/a
• Number Of Channels: 2
• Notes
• MICROPHONES AT829mW
Miniature cardioid condenser microphone only, terminated for use with PRO 88W transmitter. Includes clothing clip and windscreen.
• MT830mW
Subminiature omnidirectional condenser microphone only, terminated for use with PRO 88W transmitter. Includes clothing clip and windscreens.
• PRO 8HEmW
Headworn Hi-ENERGY® hypercardioid dynamic microphone, terminated for use with PRO 88W transmitter. Includes two windscreens.
• ACCESSORIES CP8306
Transformer balanced adapter cable to use PRO 88W receiver with XLR-type balanced microphone inputs.
• Handheld Transmitter
• Microphone Capsule: FM Superheterodyne
• Operating Temperature Range: 2 µV for 30 dB S/N
• Body Pack
• Battery Life: 8 hours nominal
• Battery Type: 9V alkaline (not included)
• Current Consumption: 50 mA
• Dimensions: 4.09" (104.0 mm) H x 2.44" (62.0 mm) W x 0.94" (24.0 mm) D
• Net Weight: 2.8 oz (80 grams)
• Modulation: Frequency Modulation
• Modulation Sensitivity: 6 mV input for full deviation
Receiver
• Dimensions: 4.09" (104.0 mm) H x 2.44" (62.0 mm) W x 0.94" (24.0 mm) D
• Weight: 3.5 oz (100 grams)
• Battery Current/Life: 8 hours nominal
• Battery Type: 9V alkaline (not included)
• Current Consumption: 50 mA
• DC Input: 9V DC (center-positive)
• Output Connector: 1/8" (3.5 mm) TRS
• Reception Sensitivity: 2 µV for 30 dB S/N
• Reception System: FM Superheterodyne
