Designed for clarity and presence, QSC AD-S52 loudspeakers deliver pristine audio reproduction for installations requiring a refined audio experience.

Consistent and even conical coverage is achieved through Directivity Matched Transition (DMT™), a QSC innovation which matches the directivity patterns of the woofer and the high-frequency waveguide at the crossover point. The result is a coherent transition between transducers and improved off-axis response.

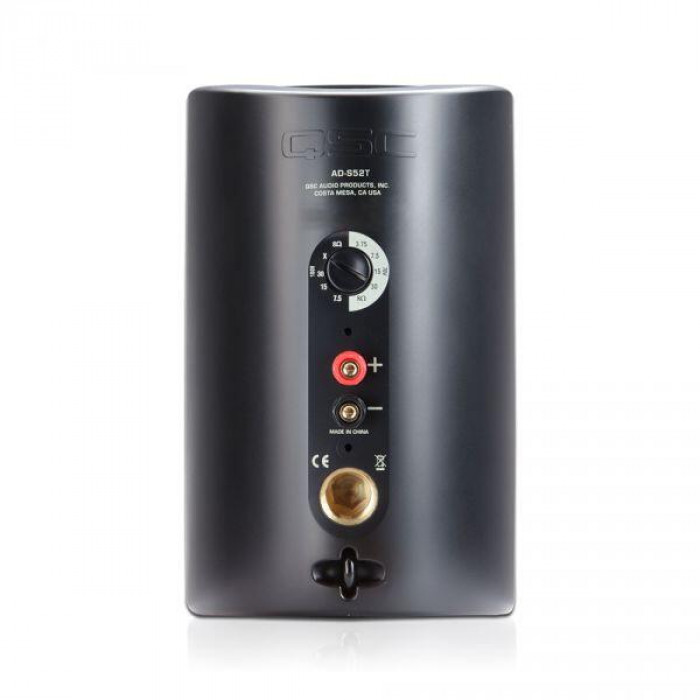

AcousticDesign models with (T) suffix feature low-loss, low-saturation transformers with selectable taps, including an 8 ohms bypass. To enhance weather resistance, the rotary selector is located on the back of the enclosure, protected by a weather grommet.

To further enhance performance and speed of install with optimum result, advanced voicing filter sets using QSC Intrinsic Correction™ techniques are available via Q-SYS networked audio processing or CXD amplifier platforms for a complete QSC systems solution.

With rugged ABS enclosures, sealed input panel covers, and powder-coated aluminum grilles for weather resistance, the AcousticDesign surface mounted series exceed IEC60529 IP-54 ratings for dust and splash resistance.

• 5.25 inch, 2-way design - in a lightweight, contemporary styled multipurpose enclosure
• Magnetically shielded LF transducer - ideal for use near video monitors
• Flexible ball mount assembly included - for convenient installation
• 70V/100V transformer versions available - for use with distributed audio systems
• Available optional yoke mount bracket
