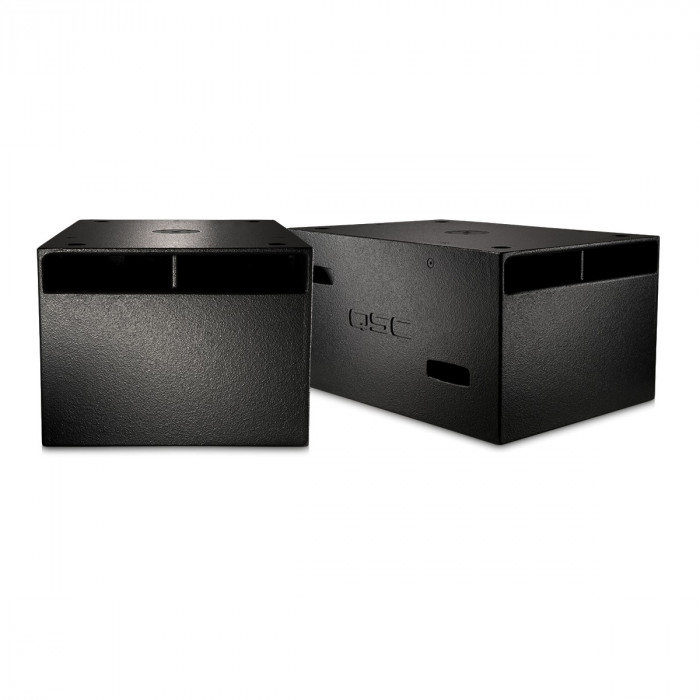

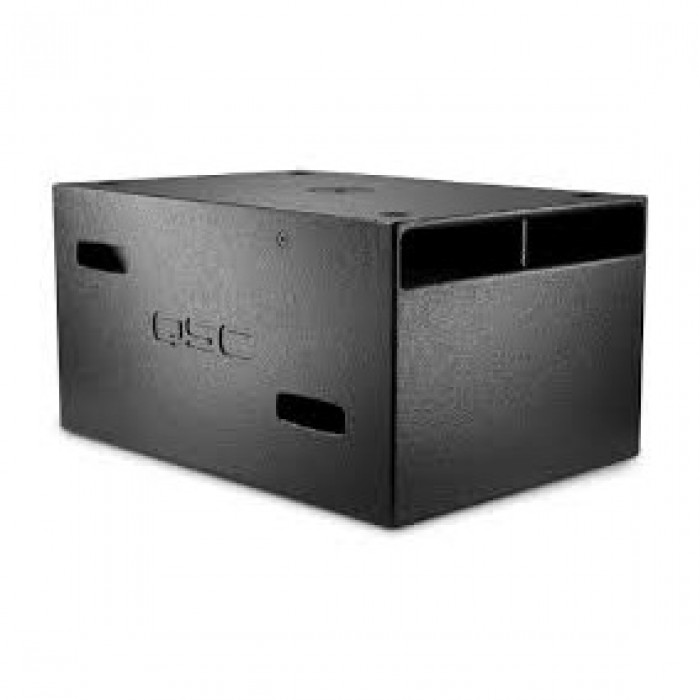

QSC GP212-sw |
Dual 12 in Subwoofer |
The GP212-sw is a premium, high-performance, rectangular dual 12 inch 4th order band-pass subwoofer designed for ground stacked use in touring or installed concert applications where space constraints or enclosure size are an issue. With an impressive combination of punch, low-frequency extension and musical accuracy, the GP212-sw is an ideal companion for QSC’s acclaimed WideLine series as well as other professional sound reinforcement systems.
For suspension in permanent installations each GP212-sw subwoofer comes with a total of six (6) threaded M10 inserts.
For ground-supported applications, the subwoofers may be stacked horizontally using their interlocking feet and recess features machined into the enclosure’s top panel. A screw-in (M20) pole mount has been added to provide flexibility in use with small 2-way pole mount full-range speakers.
• Very high output to size ratio—135.4 dB SPL (1 m) peak at only 15 tall
• Tight musical punch combined with low-frequency extension down to 32 Hz
• Extremely low profile (15) and small foot print

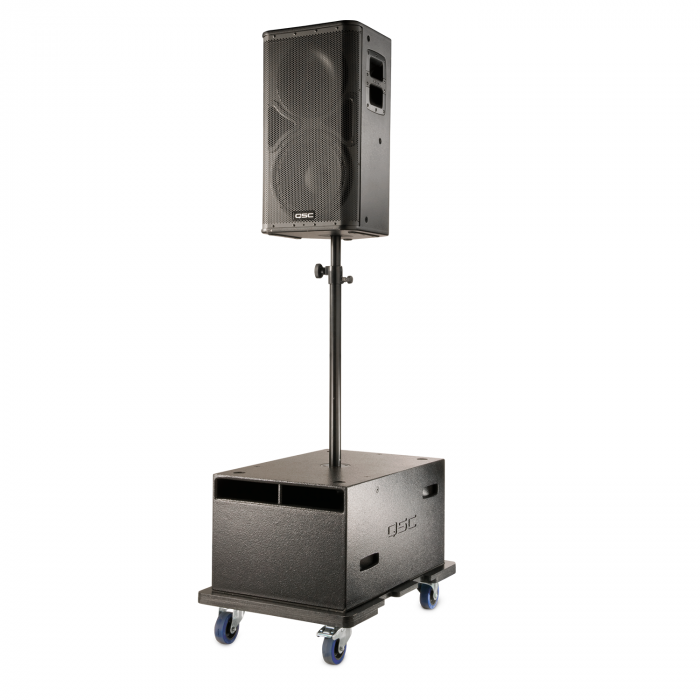

• Screw-in (M20) pole mount for use with full-range pole mountable speakers
• Elegant transport and handling features including an optional transport dolly plus soft cover and four thoughtfully placed handles
• Premium-grade, long-excursion, high-power woofers with 4 inch voice coils
• 15 mm Birch ply enclosure with extensive internal bracing for rigidity and solid, accurate reproduction
• Finish available in black.
SPECIFICATIONS: GP212-sw
• Configuration: 2 × 12-inch - 4th order band-pass subwoofer
• Transducers: 2 × 550 W, 8 ohm 12-inch woofer with a 4-inch voice coil, ceramic magnet assembly
• Frequency Response (±3 dB): 40 Hz - 100 Hz (without processing)
• Frequency Range (-10 dB): 32 Hz - 107 Hz (without processing)
• Nominal Impedance: 4 ohms
• Continuous Power Capacity: 1100 W
• Recommended Power: 1650–2200 W
• Sensitivity (1 W at 1 m): 99 dB
• Maximum Output—Continuous / Peak (SPL at 1 m): 129.4 dB / 135.4 dB
• Cabinet Type: 4th-order bandpass
• Enclosure Material: 15mm Baltic birch plywood
• Finish: Available in Black
• Connectors: 2 × NL4 in parallel
Pinout - Pins
• 1+/1-Sub
• 2+/2-NC
Attachment Points: Six threaded M10 inserts
Dimensions (HWD)
• 381 × 508 × 737 mm
• 15 × 20 × 29 in
Carton Dimensions (HWD)
• 640 × 510 × 813 mm
• 25.2 × 20 × 32 in
• Net Speaker Weight: 45.1 kg / 99.5 lb
• Shipping Weight: 52.3 kg / 115.3 lb
• Accessories Available (optional): CP212-0 – Wood cart
