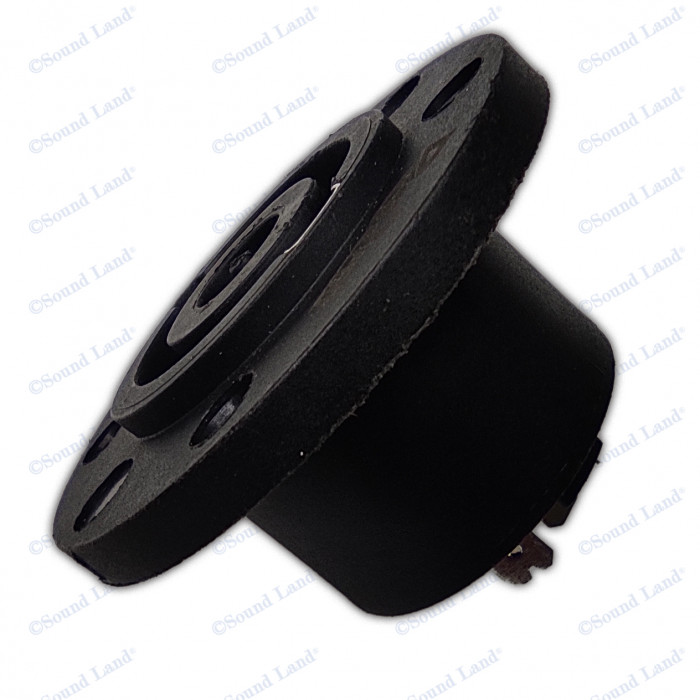

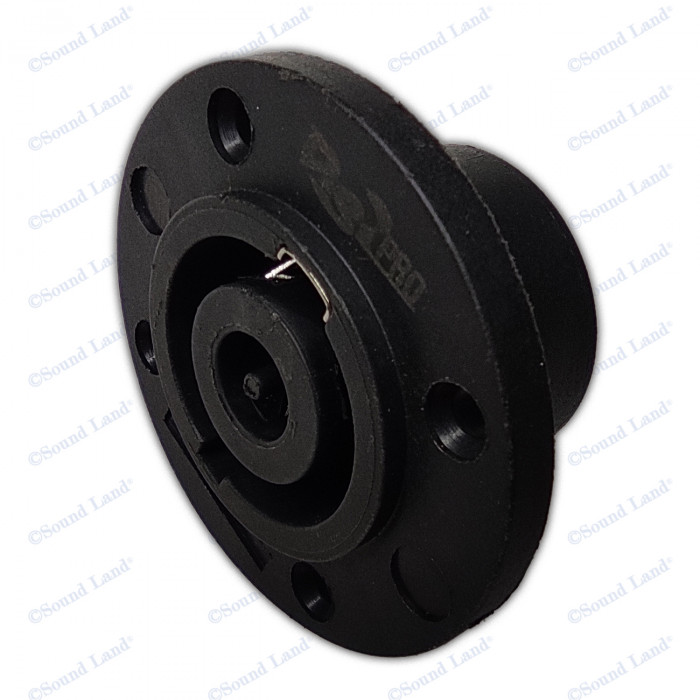

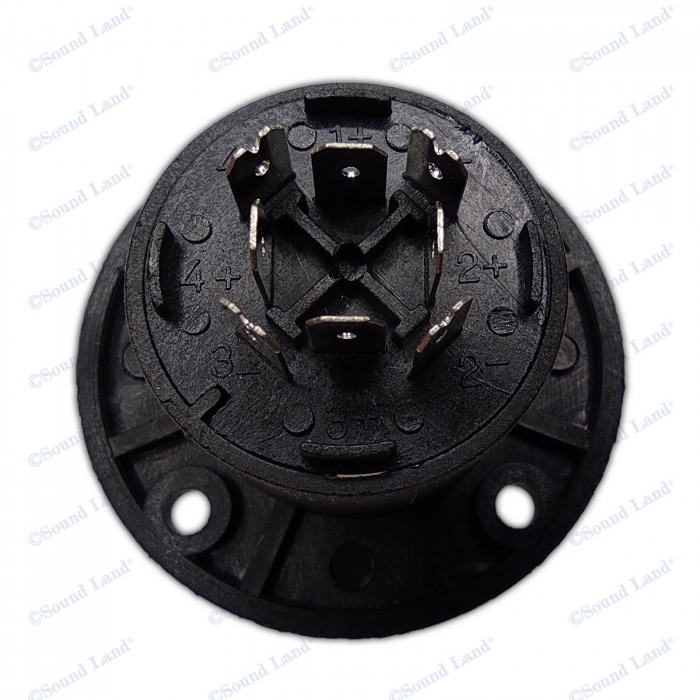

8 pole chassis connector, nickel metal square G-size flange, countersunk thru holes, 3/16" flat tabs

The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.

• Current rating 30 A rms
• Glass reinforced materials make it extremely robust and dependable
• Precise keyway for secure mating
• Accurate twist lock latching system
• Metal flange
• Airtight design - optimized for speaker applications

Product
• Title: DG8MPR
• Connection Type: speakON
• Gender: male

Electrical
• Contact resistance: 3 m ohms (after lifetime)
• Dielectric strength: 4 kVdc (peak)
• Insulation resistance: > 1 G ohms (after dampheat)
• Rated current per contact: 30 A rms continuous
• Rated current per contact: 40 A audiosignal, duty cycle 50 %
• Rated voltage: 250 V ac
• Attention: speakON is NOT to be used as an AC mains or power supply connector!

Mechanical
• Lifetime: > 5000 mating cycles
• Locking device: Quick Lock
• Chassis shape: square G-size flange
• Layout: four thru holes

Material
• Contact plating: 4 µm Ag
• Contacts: Bronze (CuSn6)
• Shell: Polyamide (PA 6 30 % GR) Ni

Environmental
• Flammability: UL 94 HB
• Solderability: Complies with IEC 68-2-20
• Temperature range: -30 °C to +80 °C

SpeakOn Chassis Connector
DigiPro DG8MPR
