SpeakOn Chassis Connector |

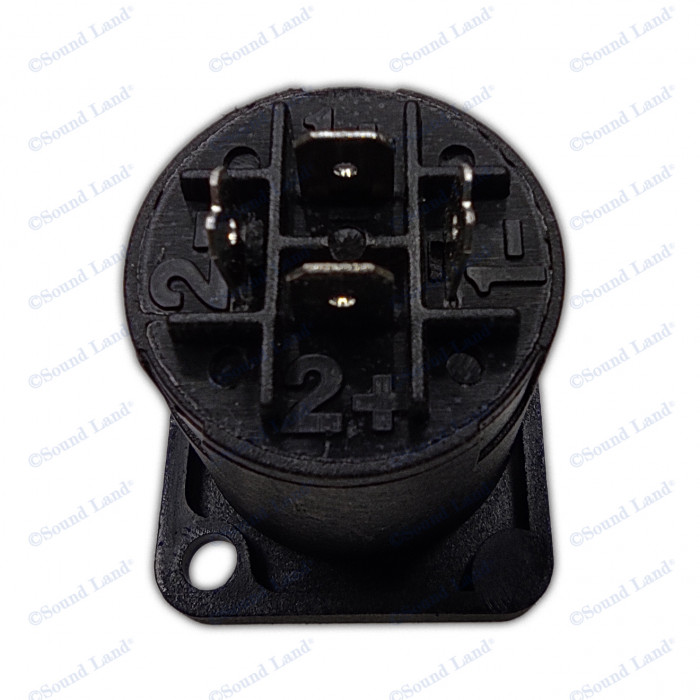

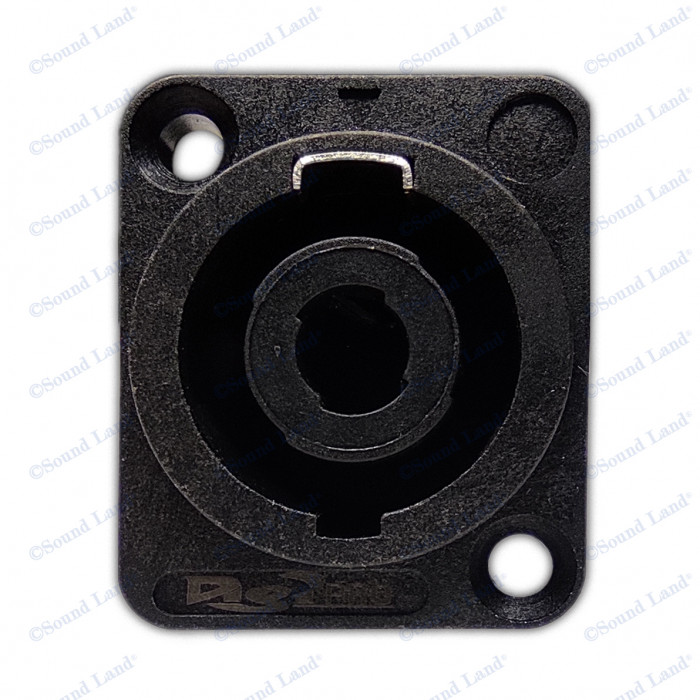

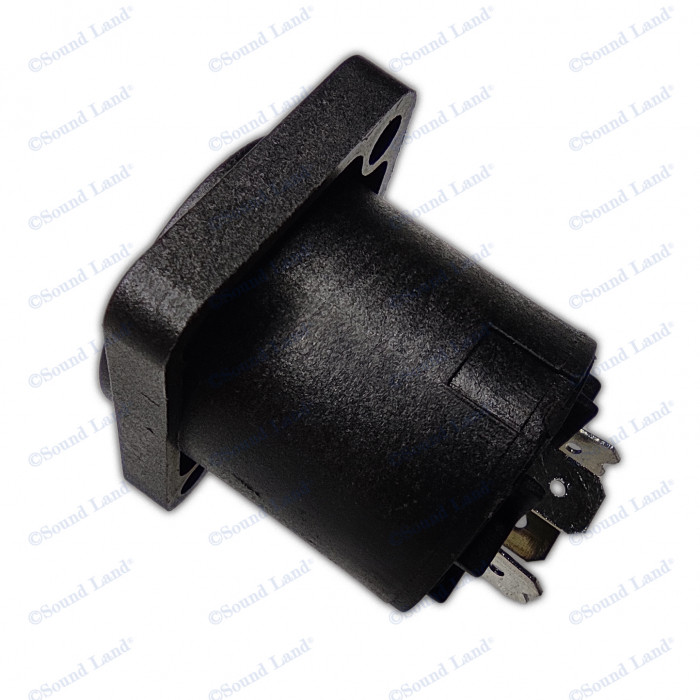

4 pole chassis connector, black D-size flange, countersunk thru holes, 3/16" flat tabs |
The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.
• Current rating 30 A rms
• Glass reinforced materials make it extremely robust and dependable
• Precise keyway for secure mating
• Accurate twist lock latching system
• Metal insert in locking area
• Airtight design - optimized for speaker applications
Product
• Title: DG4MP
• Connection Type: speakON
• Gender: male
Electrical
• Contact resistance: 3 m ohms (after lifetime)
• Dielectric strength: 4 kVdc (peak)
• Insulation resistance: > 1 G ohms (after dampheat)
• Rated current per contact: 30 A rms continuous
• Rated current per contact: 40 A audiosignal, duty cycle 50 %
• Rated voltage: 250 V ac
• Attention: speakON is NOT to be used as an AC mains or power supply connector!
Mechanical
• Lifetime: > 5000 mating cycles
• Locking device: Quick Lock
• Chassis shape: D
• Layout: standard hole position, thru holes
Material
• Contact plating: 4 µm Ag
• Contacts: Bronze (CuSn6)
• Shell: Polyamide (PA 6 30 % GR) black
Environmental
• Flammability: UL 94 HB
• Solderability: Complies with IEC 68-2-20
• Temperature range: -30 °C to +80 °C
