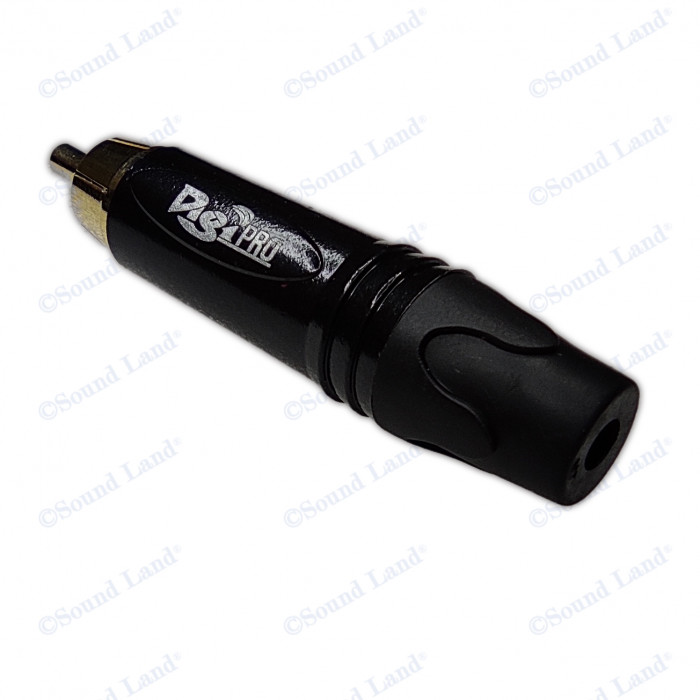

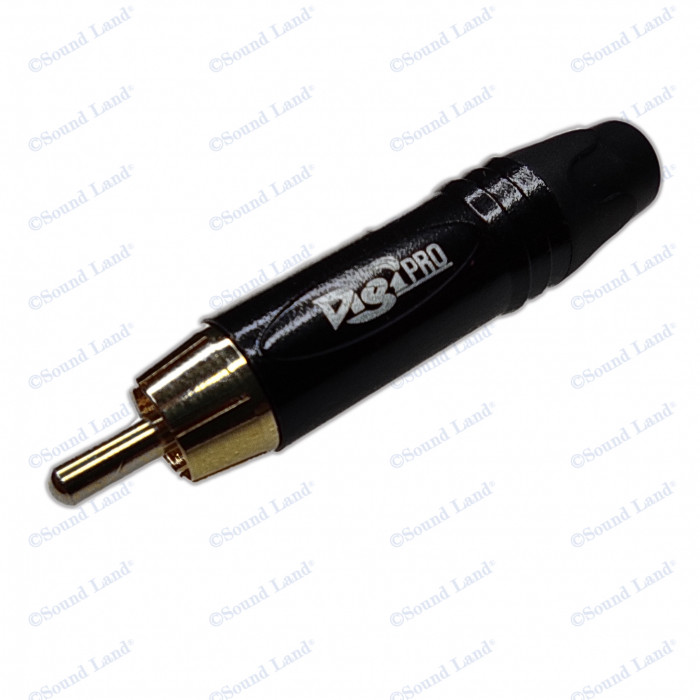

RCA Connector |
Spring loaded ground contact: retractable element with separate wedge contacts which keeps the shell in the front position when engaged thus also providing a direct and strictly coaxial electrical connection from the socket via the shell to the cable shield. All metal design, machined brass, black coated shell. Easy assembly and soldering (large soldering area, rapid-flow plating). High grade plastic insulator with high creep resistance.
• Makes ground before signal contact and breaks signal before ground
• No more disturbing noise and broken speaker cones
• Precisely machined to our demanding quality standards
• Neutrik unique chuck type strain relief
• Gold plated contacts
• Sleek barrel with soft touch surface and coloured shrink sleeve
• Improved ground solder lug for ease soldering
Product
• Title: DG2RC
• Connection Type: Profile
• Gender: male
Electrical
• Capacitance between contacts: 7 pF
• Contact resistance: >10G m ohms
• Dielectric strength: 1,5 kVdc
• Insulation resistance: > 5 G ohms
• Rated current per contact: depends on mating connector / A
• Rated voltage: < 50 V
Mechanical
• Cable O.D.: 3.0 - 7.3 mm
• Lifetime: > 2000 mating cycles
• Wiresize: 1,5 mm²
• Wiresize: 16 AWG
• Wiring: Solder contacts
Material
• Contact plating: 5 µm Au over 5 µm Ni
• Contacts: Brass (CuZn39Pb3)
• Insert: PBTP 20 % GR
• Shell: Brass (CuZn39Pb3)
• Strain relief: Polyacetal (POM)
Environmental
• Flammability: UL 94 HB
• Standard compliance: IEC 601-14
• Protection class: IP 40
• Solderability: Complies with IEC 68-2-20
• Temperature range: -30 °C to +80 °C
