QUIK LOK - CM/995 BK COIL MICROPHONE CABLE

Bulk Cable

QUIK LOK - CM/995 BK COIL MICROPHONE CABLE

Model: QUIK LOK - CM/995 BK
Manufacturer: Quik Lok

QuikLok CM/995 BK

QuikLok CM/995 BK

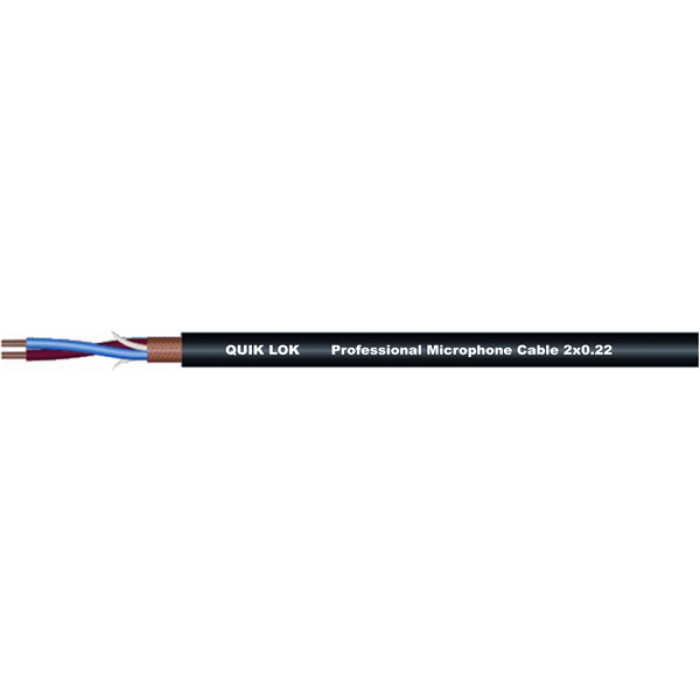

Coil Microphone Cable

• Microphone coil cable Made in Italy, Black Color, Reel Length 100 mt.
• 100 m reel balanced microphone cable, Ø 6.30 mm with 2 x 0.22 internal conductor + screen, PVC insulation Ø 1.45 mm and Super Flex PVC sheath.
• Cable mic.2X0,22+SCH. bobsleigh.
• Color: black
• Reel length: 100 mt.

Professional cable, built to be used in the harshest conditions such as stages and mobile installations. Maximum flexibility and absolutely transparent signal transfer.

Built for use in the harshest conditions such as stages and mobile installations, Quik Lok cables provide excellent mechanical strength while maintaining maximum flexibility. Their electrical characteristics guarantee an absolutely transparent signal transfer and a high immunity to disturbances.

Mechanical characteristics:
• Internal conductor: 2 x 0.22 (28 x 0.10 copper red AWG 24)
• Isolation: PVC Ø 1.45 mm. (color - white/red)
• Screen: Red copper spiral cover 100% corded with cotton padding
• Sheath: PVC Super Flex Ø 6.30
• Weight: 50 kg/km

Electrical characteristics:
• Resistance on the conductor: <86 ohm/km
• Conductor/shield capacity: 91 Pf/m
• Conductor/conductor capacity: 58 Pf/m
• Insulation resistance: >10000 MOhm/km
• Operating Temperature: -20° / +70°
• Available colors: Black
• Reel length: 100 m

QuikLok CM/995 BK Coil Microphone Cable
