Bulk Cable
| Model: | QUIK LOK - CM/780 BK |
| Manufacturer: | Quik Lok |
QuikLok - CM/780 BK
QuikLok - CM/780 BK |

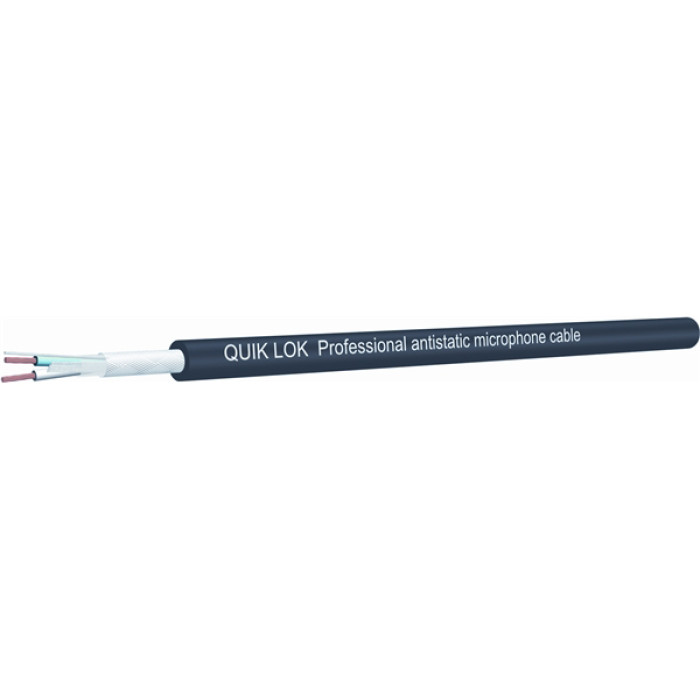

Coil Microphone Cable |
• Microphone coil cable Made in Italy, Black Color, Reel Length 100 mt.
• 100 m balanced microphone cable in reel, Ø 6.30 mm with internal conductor 2 x 0.50 + screen, insulation Ø 1.70 mm inLPE cross-linkedpolytene and PVC sheath hardness 60 Shore
• Cable mic.2X0,22+SCH. bobsleigh.
• Color: black
• Reel length: 100 mt
A cable with high mechanical and electrical qualities, built to meet the needs of highly professional users in recording studios, mobile installations or plachi.
Built for use in the harshest conditions such as stages and mobile installations, Quik Lok cables provide excellent mechanical strength while maintaining maximum flexibility. Their electrical characteristics guarantee an absolutely transparent signal transfer and a high immunity to disturbances.
Mechanical characteristics:
• Internal conductor: 2 x 0.50 (28 x 0.15 tinned copper AWG 20)
• Weight: 51.5 kg/km
• Isolation: Cross-linked polythene LPE Ø 1,70 mm (colour - white/light blue)
• Sheath: PVC Ø 6.35 hardness 60 shore
• Screen: Braid 8 x 0.10 tinned copper 90% corded with cotton padding + TNT ribbon
Electrical characteristics:
• Resistance on the conductor: <37 ohm/km
• Conductor/shield capacity: 92 pF/m
• Conductor/conductor capacity: 54 pF/m
• Insulation resistance: >5000 MOhm/km
• Operating Temperature: -30° / +70°
• Available colors: Black
• Reel length: 100 m
QuikLok - CM/780 BK Coil Microphone Cable
