Bulk Cable
| Model: | QUIK LOK - CM/675 BK |
| Manufacturer: | Quik Lok |

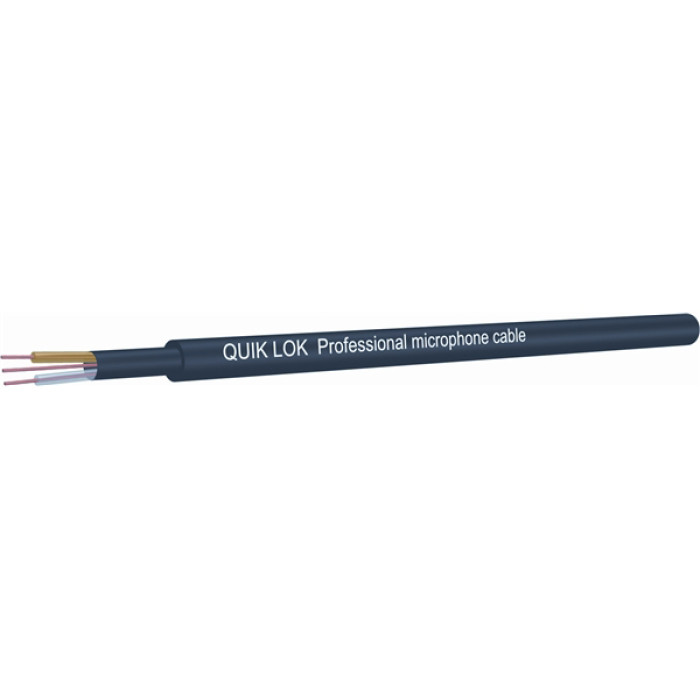

QuikLok - CM/675 BK
QuikLok - CM/675 BK |
Coil Microphone Cable |
• Microphone coil cable Made in Italy, Black Color, Reel Length 100 mt.
• Microphone cable MADE IN ITALY
• Professional balanced cable recommended in the use of standard connections.
• Cable mic.2X0,22+SCH. bobsleigh.
• Color: black
• Reel length: 100 mt.
Built for use in the harshest conditions such as stages and mobile installations, Quik Lok cables provide excellent mechanical strength while maintaining maximum flexibility. Their electrical characteristics guarantee an absolutely transparent signal transfer and a high immunity to disturbances.
Mechanical characteristics:
• Internal conductor: 2 x 0.22 (7 x 0.20 Red Copper AWG 22)
• Isolation: Polythene Ø 1,45 mm (colour - white/red)
• Screen: Drain Wire 0,22 7 x 0,20 Copper Red + PVC 100% Conductor
• Sheath: PVC Ø 6 mm hardness 65 Shore
• Weight: 39,5 kg/km
Electrical characteristics:
• Resistance on the conductor: <52 ohm/km
• Conductor/conductor capacity: 60 pF/m
• Insulation resistance: >5000 MOhm/km
• Operating Temperature: -30° / + 70°
• Available colors: Black
QuikLok - CM/675 BK Coil Microphone Cable
