Bulk Cable
Model: | QUIK LOK - CA/215 |
Manufacturer: | Quik Lok |
QuikLok - CA/215 BK
QuikLok |

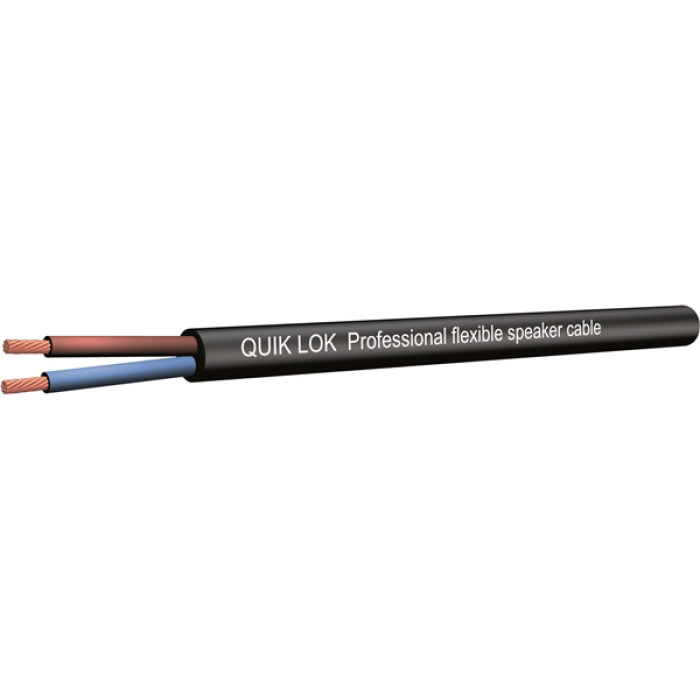

CA/215 BK Coil Cable For Speaker |
Power cable for passive speakers in reel MADE IN ITALY, Black Color, Coil length 100 mt (not divisible). Can be ordered in quantities 100 mt or multiple.
• Bipolar power coil cable for passive speakers, MADE IN ITALY
• Color: black
• Reel length: 100 mt.
Can be used in all fixed or mobile installations for the connection between Audio power units and passive speakers.
Available in different configurations based on power supported and number of conductors.
High feltness, conductor insulation and PVC outer sheath
The cable is the means through which the sound of our instrument arrives at its destination, which is why its quality is as important as that of the instrument we use.
It is useless to worry about the quality of our instrumentation and neglect the link that transfers the sound.
All our cables have as a fundamental feature an absolutely transparent and noise-free signal transport, of course they can change electrical and mechanical characteristics but always above everything emerges quality, transparency and depth of sound.
Mechanical characteristics
• Conductors: 2 x 1.5 mm - 28 x 0.245
• Outer Diameter: 6.7 mm +/- 0.2%
• Conductor diameter: 2.7 mm +/- 0.1%
• Insulation thickness: PVC - TI2 according to HD21 standard (CEI 20-29)
• Weight: 79 kg/km
Electrical characteristics
• Rated voltage: 300 / 500 V
• Operating Temp. (°C): 60°
• Electrical resistance at 20°: (Ohm/Km) according to IEC228/HD 383 S2 (CEI 20-29)
• Self-extinguishing degree: according to IEC332-1 standard (CEI 20-35)
• Available colors: Black
• Reel length: 100 m
QuikLok - CA/215 BK Coil Cable For Speaker
