Powercon Connectors & Sockets
| Model: | DGC3FCW |
| Manufacturer: | DigiPro |
DGC3FCW

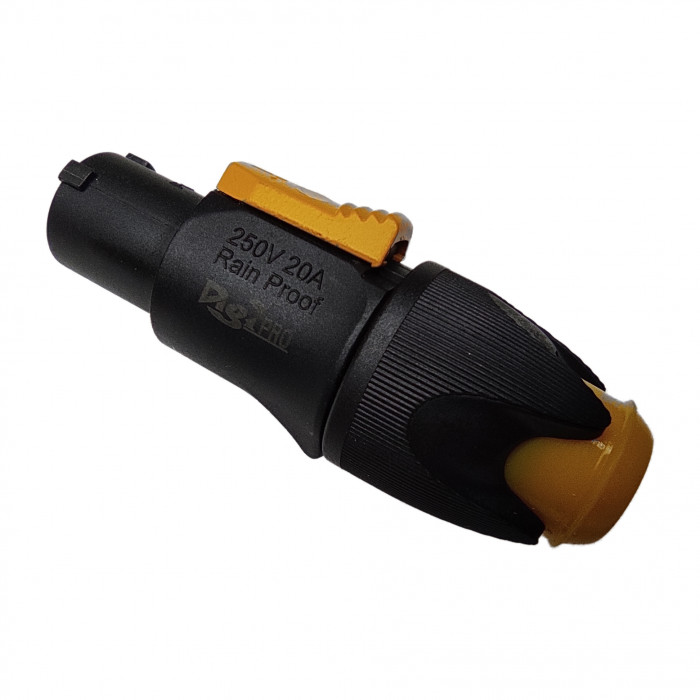

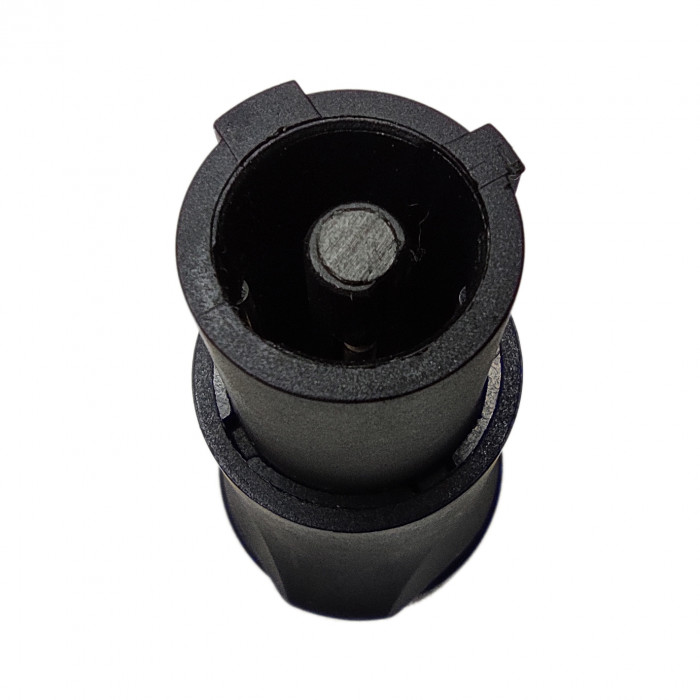

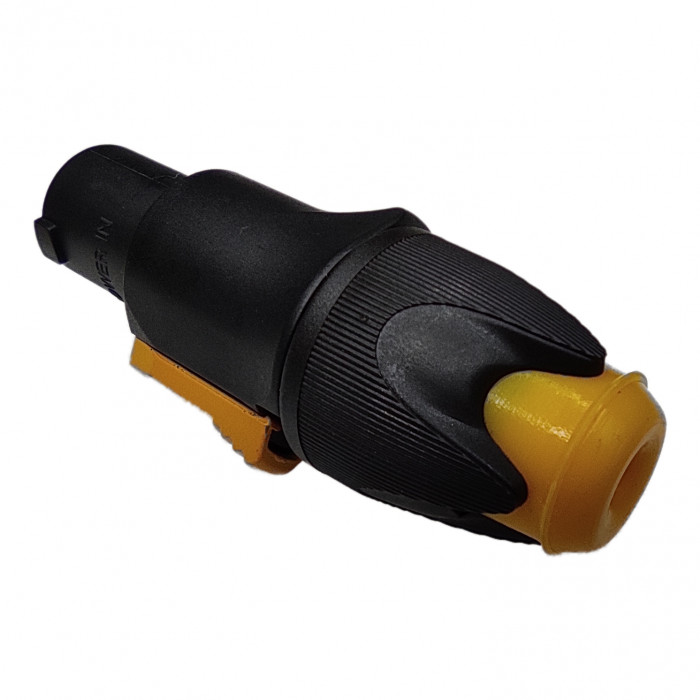

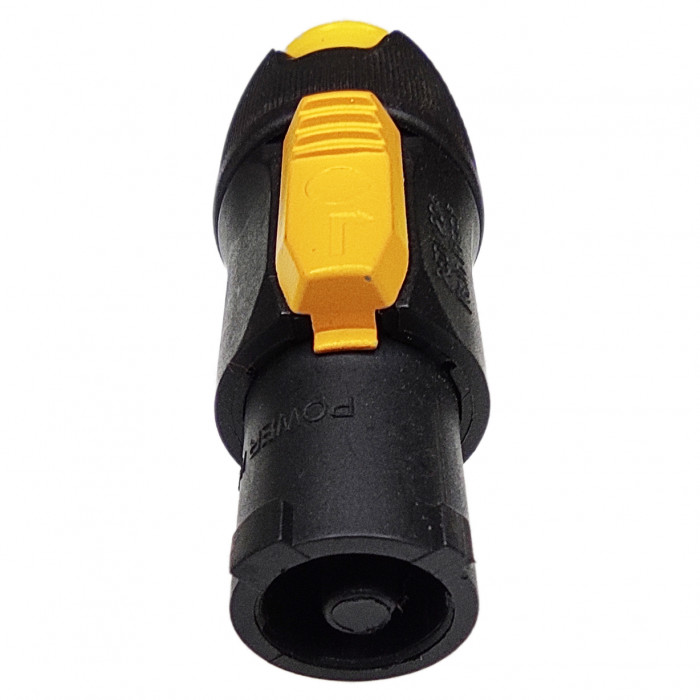

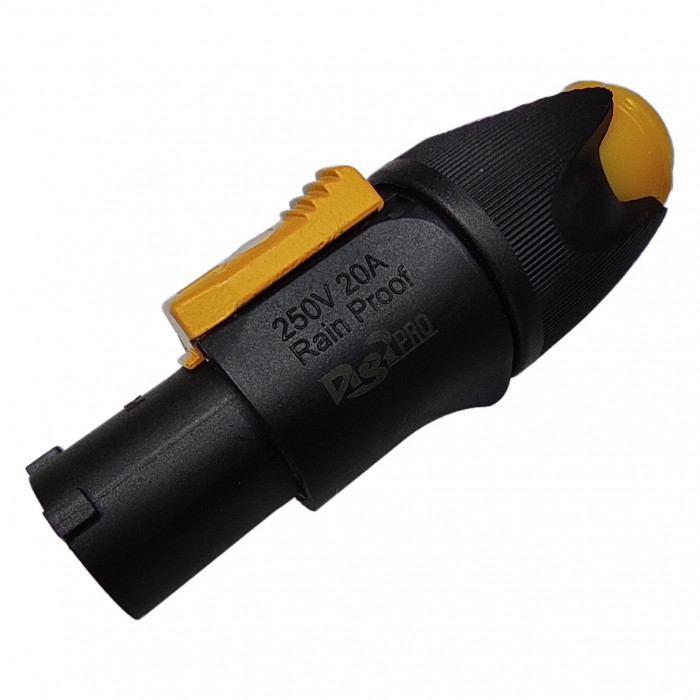

PowerCON Waterproof Connector |
Lockable cable connector, power-in, screw terminals, blue |
The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
• Fast and easy twist lock latching system
• Extremely robust and reliable
• Ergonomic design
• Unique Neutrik chuck type strain relief
• Improved kink protection by two-component bushing
Electrical
• Contact resistance: 3 m ohms
• Dielectric strength: 4 kVdc / 2.8 kVac
• Insulation resistance: > 0.1 G ohms (after damp heat test IEC 68-2-30)
• Number of electrical contacts: 2 + PE
• Rating Europe: EN 61984:20 A 250 V AC
• Rating USA: UL 1977:20 A 250 V AC
Mechanical
• Cable O.D.: 6 - 15 mm (1)
• Lifetime: > 1000 mating cycles
• Wiresize: 2,5 mm²
• Wiresize: 12 AWG
• Locking device: Quick Lock
• (1): Cable O.D. range limited to 6 mm - 14 mm acc. VDE
Material
• Contact plating: 4 µm Ag
• Contacts: Bronze (CuSn6)
• Insert: Polyamide (PA 6 30 % GR)
• Locking element: Zinc diecast (ZnAl4Cu1)
• Shell: Polyamide (PA 6 30 % GR)
• Strain relief: Polyacetal (POM)
Environmental
• Temperature range: -30 °C to +80 °C
• Protection class: IP20
• Flammability Rating: UL 94 V-0
PowerCON Waterproof Connector
