Powercon Connectors & Sockets
| Model: | DGC3FCAP |
| Manufacturer: | DigiPro |
DGC3FCAP

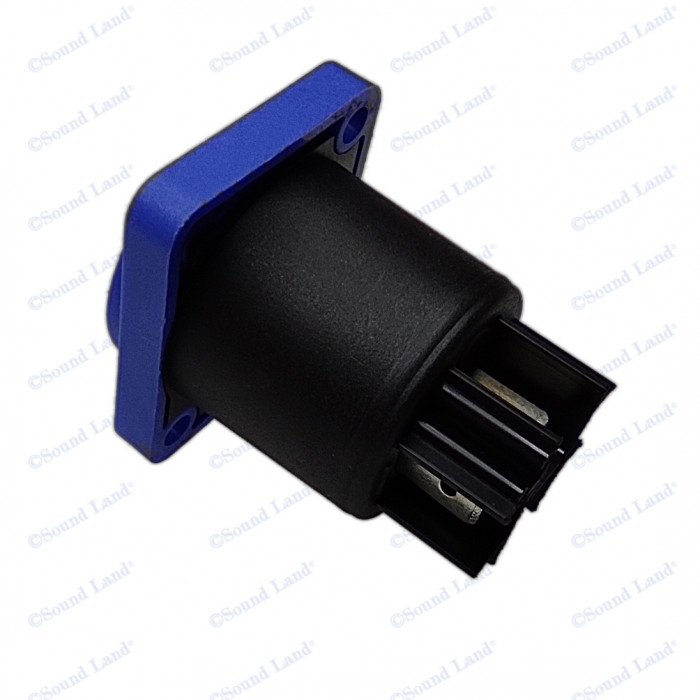

PowerCON Chassis Connector |

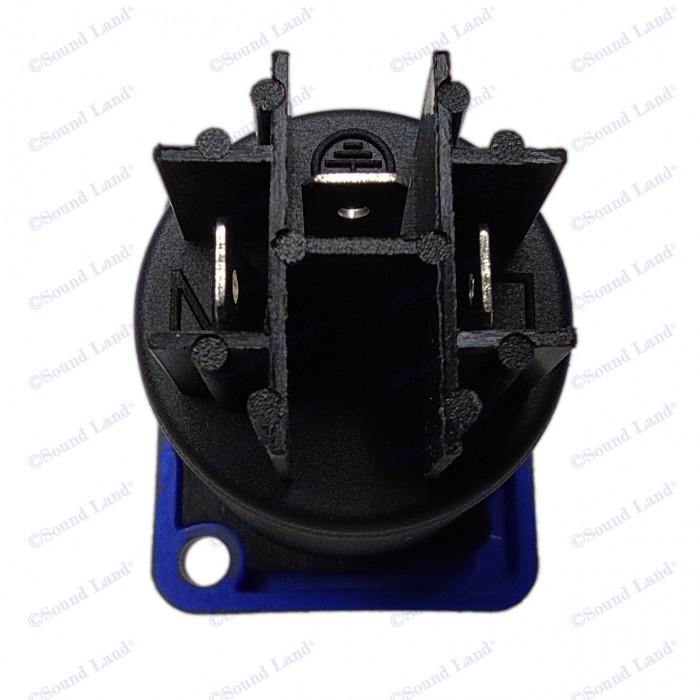

Chassis connector, power-in, 3/16 inch flat tab terminals, blue |
The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
• Locking 20 A / 250 V ac appliance coupler
• 3 contacts for line, neutral and premating safety ground
• Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
• Fast and easy twist lock latching system
• Extremely robust and reliable
• Ergonomic design
• User friendly latch design for easy handling
Product
• Title: DGC3FCAP
• Gender: male
Electrical
• Contact resistance: 3 m ohms
• Dielectric strength: 4 kVdc / 2.8 kVac
• Insulation resistance: > 0.1 G ohms (after damp heat test IEC 68-2-30)
• Number of electrical contacts: 2 + PE
• Rating Europe: EN 61984:20 A 250 V AC
• Rating USA: UL 1977:20 A 250 V AC
Mechanical
• Lifetime: > 1000 mating cycles
• Locking device: Quick Lock
• Mounting direction: Front mounting
• Chassis shape: D
Material
• Contact plating: 2um Ag
• Locking element: Steel Ck67
• Shell: Polyamide (PA 6.6 30 % GR)
• Contacts: Bronze (CuNi1Si0.2)
Environmental
• Flammability: UL 94 V-0
• Protection class: IP 20
• Temperature range: -30 °C to +80 °C
PowerCON Chassis Connector
