DSD12 DSp  is a 4-channel power amplifier, used to increase the amplify of electrical signals from audio sources, such as microphones, instruments, or line-level devices, to a level suitable for driving loudspeakers.

Power amplifiers play a crucial role in audio systems, wireless communication, and various other applications where signal amplification is necessary.

• Model: DSD12 DSP
• Number of channels: 4

Output Power
• FTC: 20Hz - 20kHz at 0.03% THD
• 8 ohms per Channel: 1250w
• 4 ohms per Channel: 2500w

• Frequency Response Frequency Response Frequency Response: 20Hz - 20KHz, ±0.15dB
• (10 dB output power): -3 dB points: 5Hz and 50kHz

• THD 20Hz - 20kHz for 1W: <0.03%
• Damping Factor: > 400 at 8 ohms
• Hum & Noise: 102 dB
• Input Sensitivity: 0.775V, 1V, 1.4V
• Input Impedence: 10k ohms Unbalanced, 20k ohms Balanced

Connectors
• Input: 2 Channels of XLR-F & XLR-M; 4 Channels of XLR-F
• Output: SpeakOn

• Cooling: Front-to-Rear Airflow, Temperature controlled Fans

Protection
• Short Circuit, Open Circuit, Overheat, Ratio-Frequency,
• Ultra high or Ultra Low frequency protection

• Power Requirement: AC 220 V (+/- 10%) 50-60 Hz
• Product Dimensions (H*W*L): 88 x 483 x 425 mm
• Net Weight: 2-Channel: 11 Kg, 4-Channel: 12 Kg
• Gross Weight: 2-Channel: 15 Kg, 4-Channel: 16 Kg

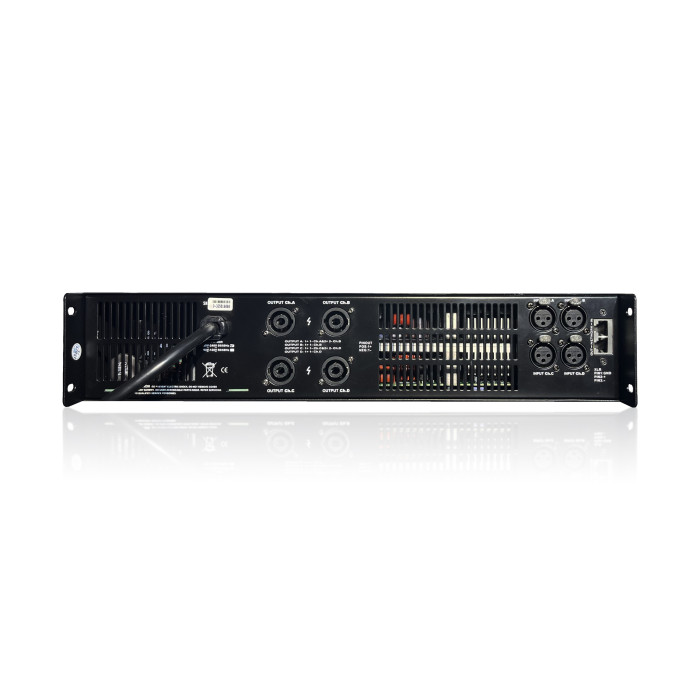

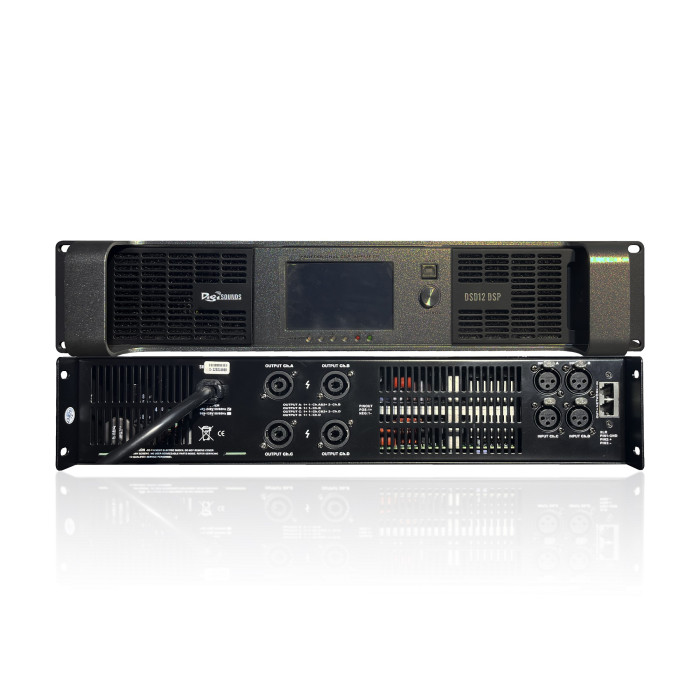

Digisounds DSD12 DSP
Power Amplifier
