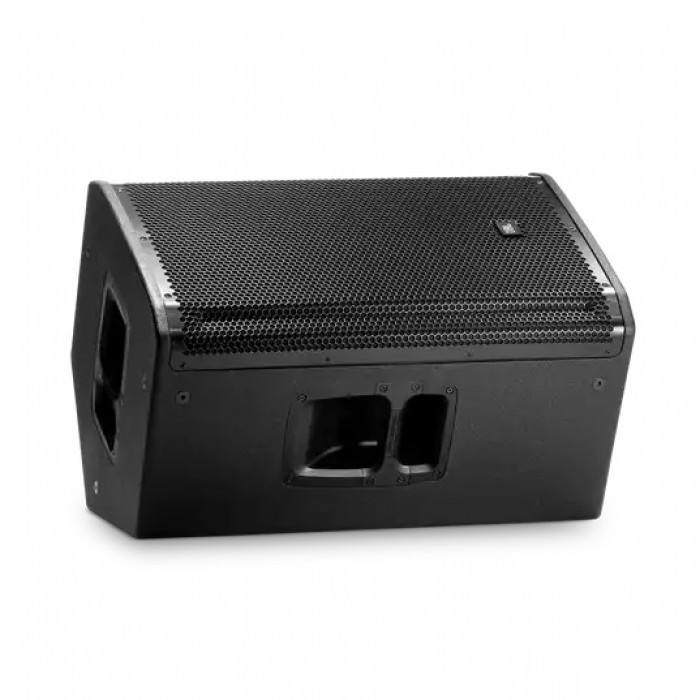

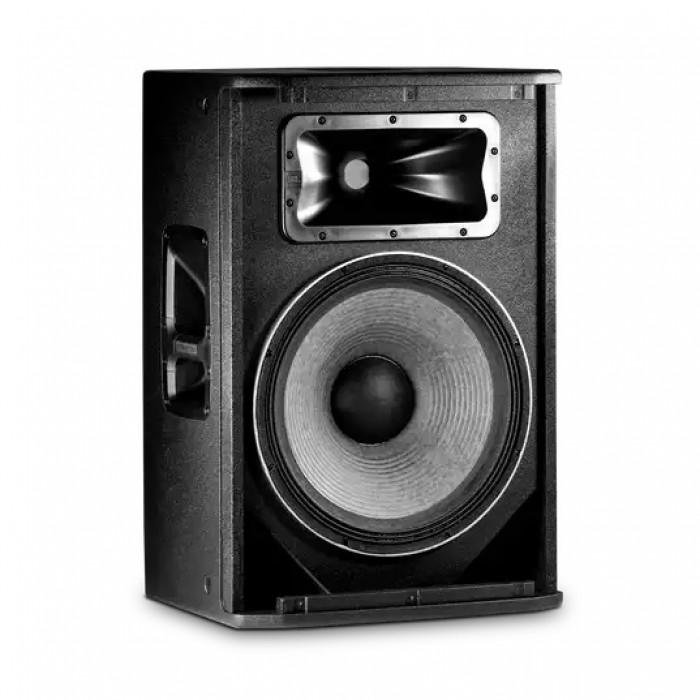

JBL SRX815 |
15" Two-Way Bass Reflex Passive System |
Ultimate performance without compromise
SRX815 is a two-way full range speaker with a 15” woofer made for use as a light to medium duty main PA, monitor, or rear or side fill. Featuring M10 suspension points and feet for both floor standing and monitor use, the SRX815 is an ideal solution for musicians, bands, and DJs, concert use, public speaking, or installations such as performance venues, corporate spaces, educational facilities or houses of worship. Tunings and presets are available for Crown ITech HD and XTI 2 amps as well as dbx VENU360 signal processors.
• Purposeful design
• Transducer technology
• JBL professional tunings available
Design:
• FinishObsidian DuraFlex™ finish
Features:
• Dual-angle pole-mount socketYes
• M10 suspension pointsYes
• JBL professional tunings and presents availableYes
• System Type: Passive 381mm, two-way, bass-reflex
• Maximum SPL Output: 136dB
• Frequency Range (-10dB): 41hz - 20khz
• Frequency Response (- 3dB): 56hz - 20khz
• Sensitivity (1W/1m): 95dB
• System Power Rating: 3200W Peak, 1600W Program, 800W Continuous
• Nominal Impedance: 8 Ohm

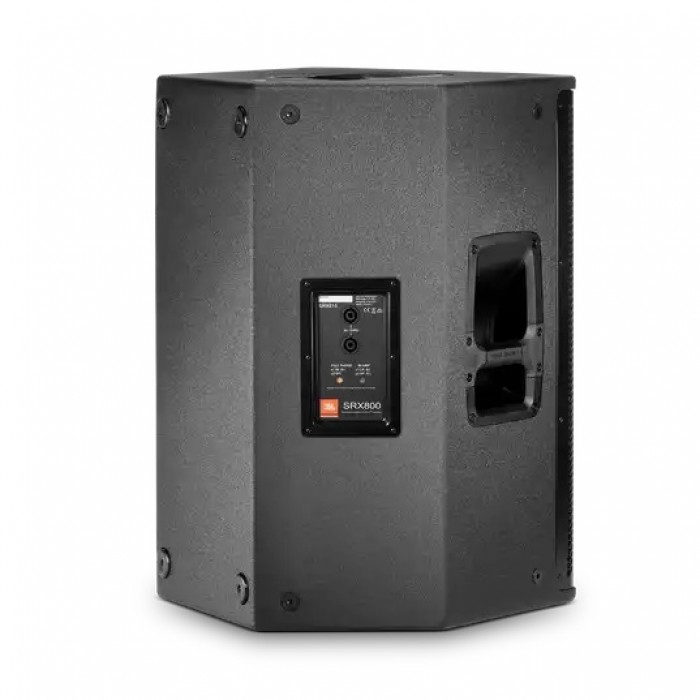

• Connectors: NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
• Operational Modes: Passive/Bi-Amp
• LF Driver: 2275H
• HF Driver: 2432H
• Coverage Pattern: 90° x 50°
• Crossover Frequency: 1.9khz
• Enclosure Material: 18mm plywood
• Monitor Angle: 50°
• Suspension/Mounting: Dual 36mm pole socket, 12 x M10 Suspension points
Handles3
• Grille: Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
Dimensions:
• Height (mm): 691.0
• Width (mm): 458.0
• Depth (mm): 478.0
• Weight (kg): 25.9
JBL SRX815
15" Two-Way Bass Reflex Passive System
