2-way Passive PA & Stage Monitor

Professional high efficiency sound diffuser with injection - moulded polypropylene cabinet provided with steel protection grille and 2 threaded inserts (M8). Designed to be used in the most different situations, NM250P8 is the ideal instrument for musician, service or installer that requiring high sound pressure and extended frequency response in a compact size.

FEATURES
• Speakers: 1x8" high efficiency and long excursion with 2" coil + 1x1"
• 1" throat Driver
• Frequency response: (±3 dB): 58Hz - 20 kHz
• Coverage angle: H 90° x V 60°
• Applicable power: 200 W
• Sensitivity: (SPL / 1 W @ 1m), 98 dB SPL
• SPL max @ 1m: 121 dB
• Nominal impedance: 8 Ohm
• NL4 Neutrik® Speakon® connectors + 6.3 mm jack

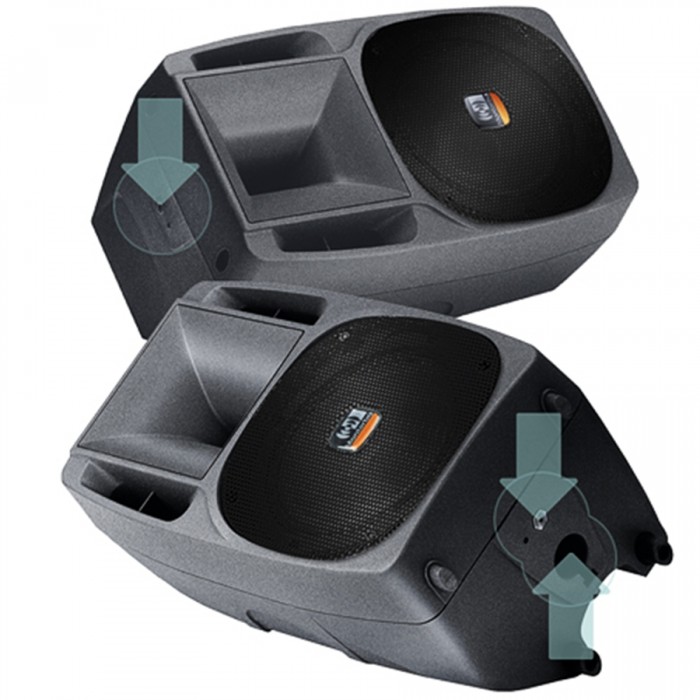

• Fastening: M8 threaded inserts and 35mm stand
• Dimensions: L 250 x H 425 x P 230
• Weight: 7 Kg
• Colour: grey

ACOUSTIC DATA
• Frequency Response [-6dB]: 58 Hz – 20 Khz
• Max SPL: 12 dB
• HF: 1"
• HF Voice Coil: 1"
• HF Type: Driver with CD horn
• Dispersion (HxV): 60° x 60°
• Crossover Frequency (passive): 2800 Hz
• LF: 8”
• LF Voice Coil: 2”
• LF Type: Reflex
• Program Power Rating: 200 Watt
• Impedance: 8 Ohm

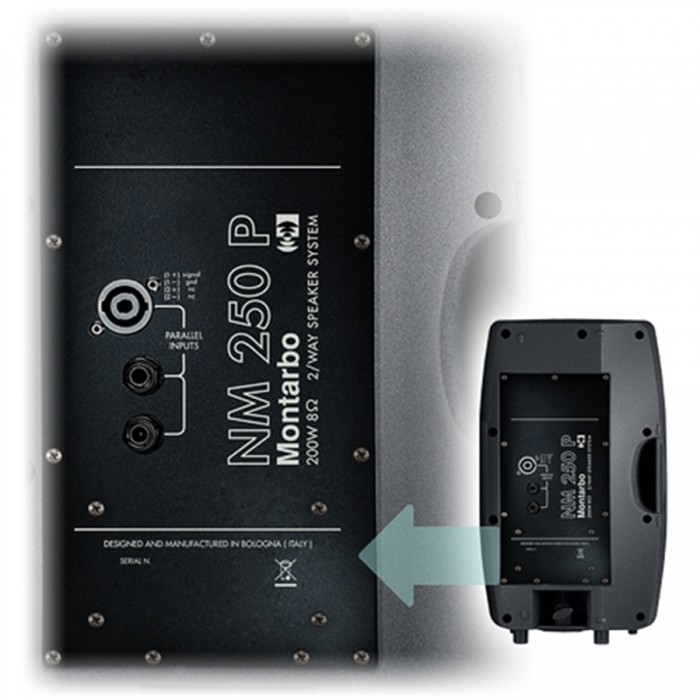

INPUT SECTION
• Signal input: 1 x Speakon / 1 x jack 6,3mm
• Signal Out: 1 x jack 6,3 mm

HARDWARE
• Housing: polyethylene
• Flyable: Yes
• Handles: Yes
• Pole mount: Yes
• Width: 250 mm (9,8 in)
• Height: 425 mm (16,73 in)
• Depth: 230 mm (9,05 in)
• Weight: 7 Kg (15,4 lb)

Montarbo NM250P
2-way Passive PA & Stage Monitor
