Passive Speakers
Model: | Passive Speaker |
Brand: | Montarbo |Made in Italy |
Passive Speaker

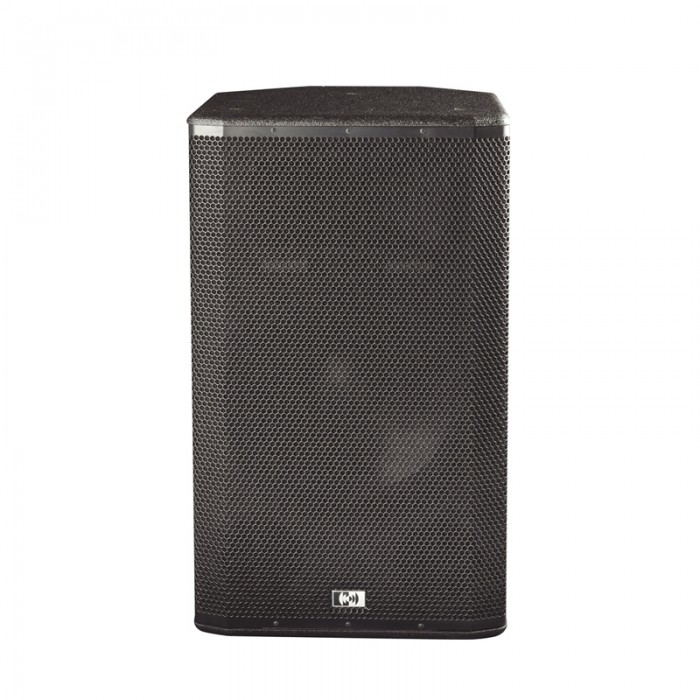

Montarbo Fire 15LPMK2 |
Passive Speaker |
Technology, Design, and Power.
The new FIRE LP MK2 Series includes 3 two-way passive full-range systems. The new FIRE LP MK2 Series loudspeakers provide 400 W nominal power at 8 ohms impedance. As regards the connections, the FIRE LP MK2 Series loudspeakers feature a 2-pole Speakon connector Input and a 2-pole Speakon connector Output.
The FIRE LP MK2 series comes with a birch plywood cabinet; the various fixing and positioning modes, from the rubber feet to the seven M10 threaded inserts for suspended uses, and the standard 35mm hole for pole-mounting allow fast and efficient installations. The new FIRE LP MK2 Series provides three different models, with 10” - 12” - 15” woofer.
The FIRE15LP MK2 combines a 15" ferrite-magnet woofer and a 1" horn-loaded compression driver (80° x 60°), developing a 800 W maximum power, maintaining an excellent performance and tone over the entire frequency range.
ACOUSTIC DATA
• Frequency Response [-6 dB]: 50 Hz – 20 kHz
• Max SPL: 126 dB
• HF: 1”
• HF Voice Coil: 1,4”
• HF Type: Driver with CD horn
• Dispersion (HxV): 80° x 60°
• Cossover Frequency (passive): 2000 Hz
• LF: 15" neodymiun magnet
• LF Voice Coil: 2,5"
• LF Type: Reflex
• Program Power Rating: 400 W aes
• Impedance: 8 ohm
INPUT SECTION

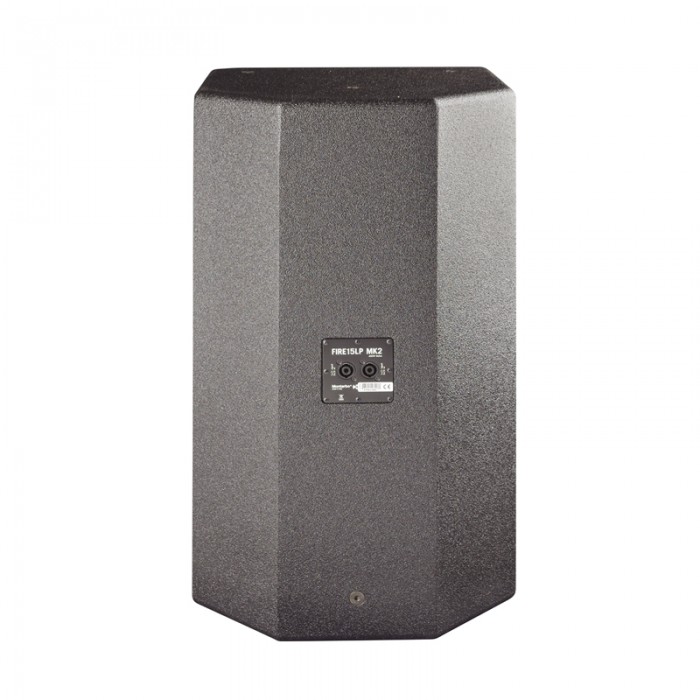

• Signal input: Speakon 2P
• Signal Out: Speakon 2P
MECHANIC
• Housing: Plywood
• Flyable: Yes
• Handles: Yes
• Pole mount: Yes
• Width: 440 mm (17,32 in)
• Height: 780 mm (30,70 in)
• Depth: 440 mm (17,32 in)
• Weight: 23,8 Kg (52,47 lb)
Montarbo Fire 15LPMK2
Passive Speaker sound speaker
