Passive Speakers
| Model: | FIRE12LPMK2 |
| Manufacturer: | Montarbo |Made in Italy |
The new FIRE LP MK2 Series includes 3 two-way passive full-range systems. The new FIRE LP MK2 Series loudspeakers provide 400 W nominal power at 8 Ohms impedance. As regards the connections, the FIRE LP MK2 Series loudspeakers feature a 2-pole Speakon connector Input, and a 2-pole Speakon connector Output.

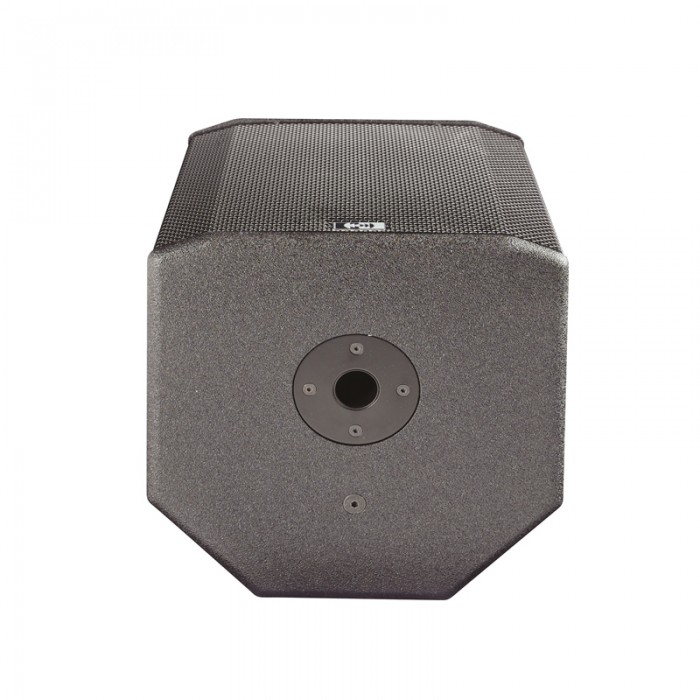

The FIRE LP MK2 series comes with a birch plywood cabinet; the various fixing and positioning modes, from the rubber feet to the seven M10 threaded inserts for suspended uses, and the standard 35mm hole for pole-mounting allow fast and efficient installations. The new FIRE LP MK2 Series provides three different models, with 10” - 12” - 15” woofer.

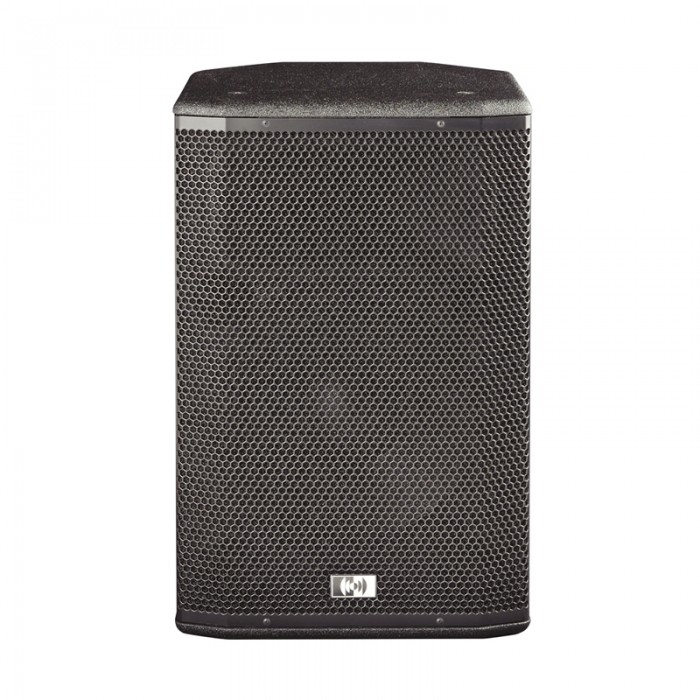

The FIRE12LP MK2 combines a 12" ferrite-magnet woofer and a 1" horn-loaded compression driver (80° x 60°), developing a 800 W maximum power, maintaining excellent performance and tone over the entire frequency range.
| ACOUSTIC DATA | |
| Frequency Response [-6 dB] | 60 Hz – 20 kHz |
| Max SPL | 124 dB |
| HF | 1” |
| HF Voice Coil | 1,4” |
| HF Type | Driver with CD horn |
| Dispersion (HxV) | 80° x 60° |
| Crossover Frequency (passive) | 2000 Hz |
| LF | 12” |
| LF Voice Coil | 2,5” |
| LF Type | Reflex |
| Program Power Rating | 400 W aes |
| Impedance | 8 ohm |
| INPUT SECTION | |

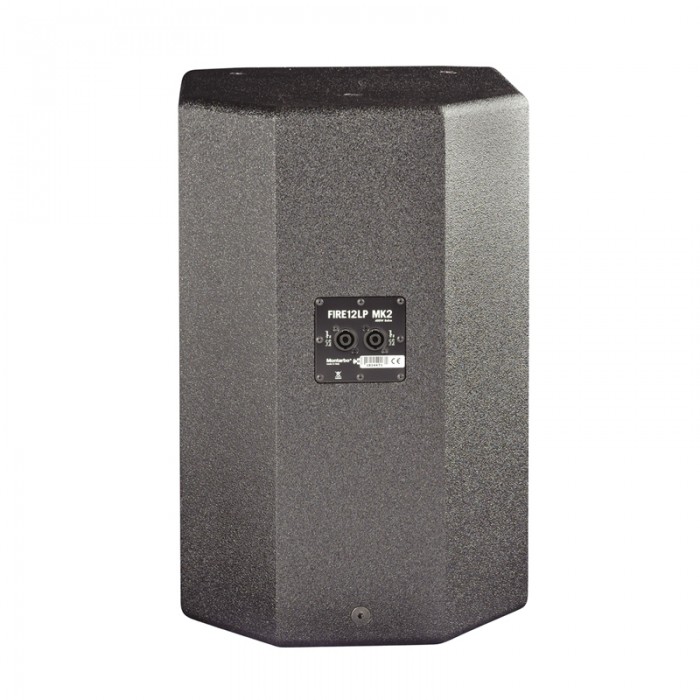

| Signal input | Speakon 2P |
| Signal Out | Speakon 2P |
| MECHANIC | |
| Housing | Plywood |
| Flyable | Yes |
| Handles | Yes |
| Pole mount | Yes |
| Width | 366 mm (14,40 in) |
| Height | 580 mm (22,83 in) |
| Depth | 365 mm (14,37 in) |
| Weight | 19 Kg (41,88 lb) |
