DI-Box
Model: | Montarbo MDI-2M |
Manufacturer: | Montarbo |Made in Italy |
MDI-2M

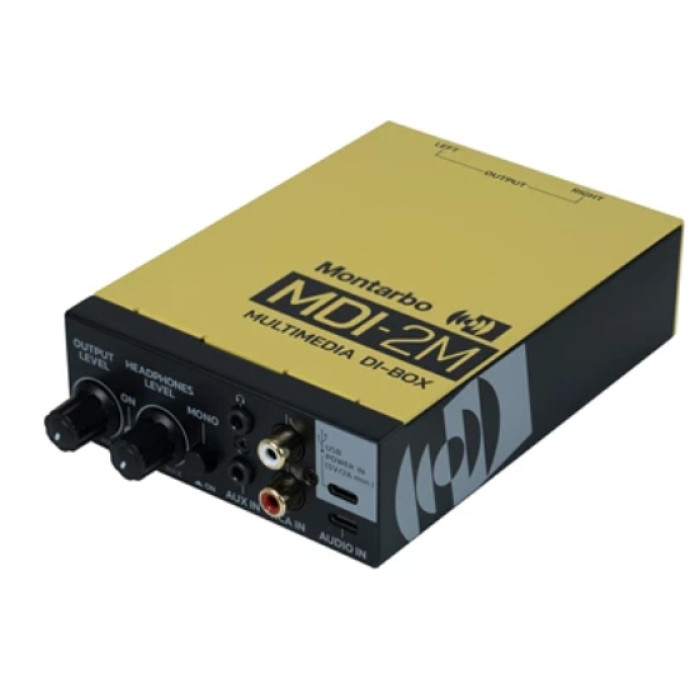

Montarbo MDI-2M Multimedia DI Box |
Montarbo MDI-2M
• Multimedia D.I. Box
• USB to Stereo Balanced output
• Plug & Play
• Works with iOS and Android, no Drivers needed
Multimedia D.I. Box
MDI-2M is a powerful, easy-to-use device that combines the features of a high quality D/A converter (up to 192 kHz - 24 bit) and a D.I. box in a compact, rugged and lightweight unit.
It allows you to send a balanced, high quality audio signal that is free of noise from your mobile devices to a mixer, PA system or studio monitor.
The headphones output allows you to monitor the stereo or mono signal.
This a completely plug & play device, iOS and Android compatible.
With additional USB-C Power supply MDI-2M charges your device also during playback
Features
• Multimedia DI Box
• 2x XLR-M balanced outputs
• USB powered
• Selectable PAD
• Ground Lift switch
• Headphones Output
• 101 x 38 x 140 mm
• 610gr
Product Code: 1740000071
TECHNICAL SPECIFICATIONS
• Type: Multimedia D.I. Box
• Enclosure: Metal Housing
• Dimensions: 101mm x 38mm x 140mm
• Weight: 610g
Input & Controls
• Input: 1x 3.5mm stereo jack Aux In on |1x RCA input | 1x Digital audio signal on USB-C
• Output: 2x XLR-M | 1x 3.5mm stereo jack Headphones output
• Sampling frequency: 4.1/48/88.2/96/192 kHz; 16/24 bit
• Compatibility: Windows 10 or later, Mac OS
• Supported Formats: WDM, MME, CoreAudio, Direct Sound, WASAPI and .WAV
• THD: <0.009%
• Dynamic Range: 102 dBu
• Controls: 1x Ground/Lift | 1x Mono |1x Output level | 1x Power ON LED | 1x Headphone output level
