Audio Tools

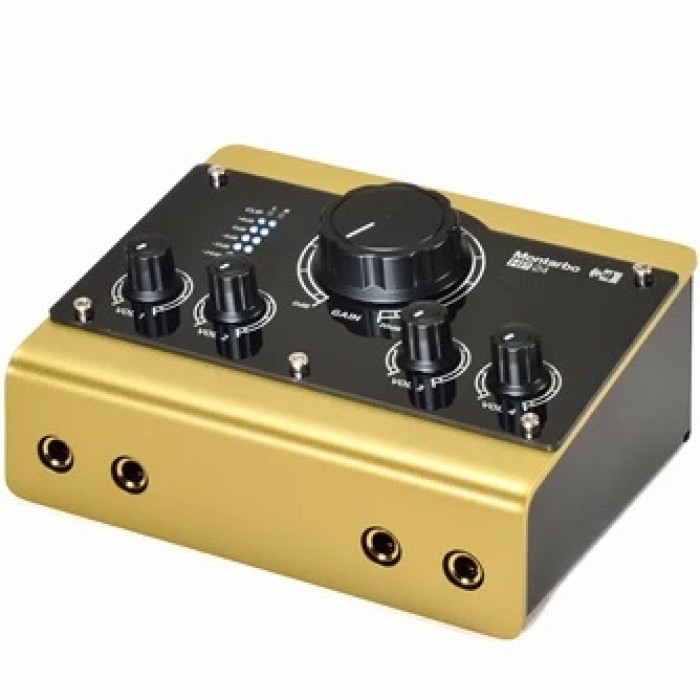

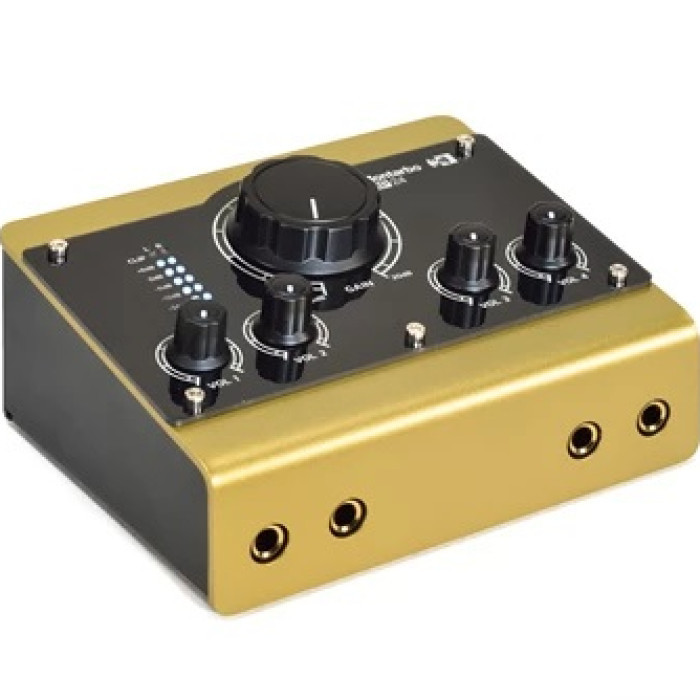

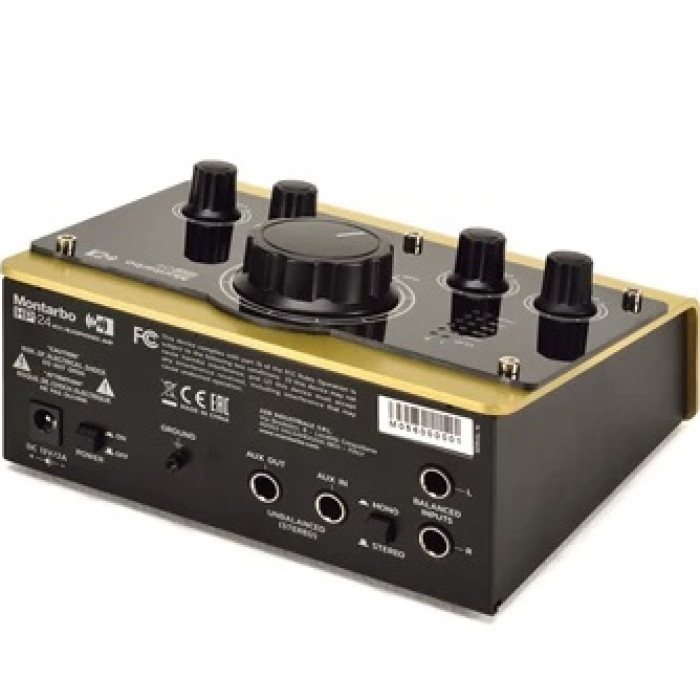

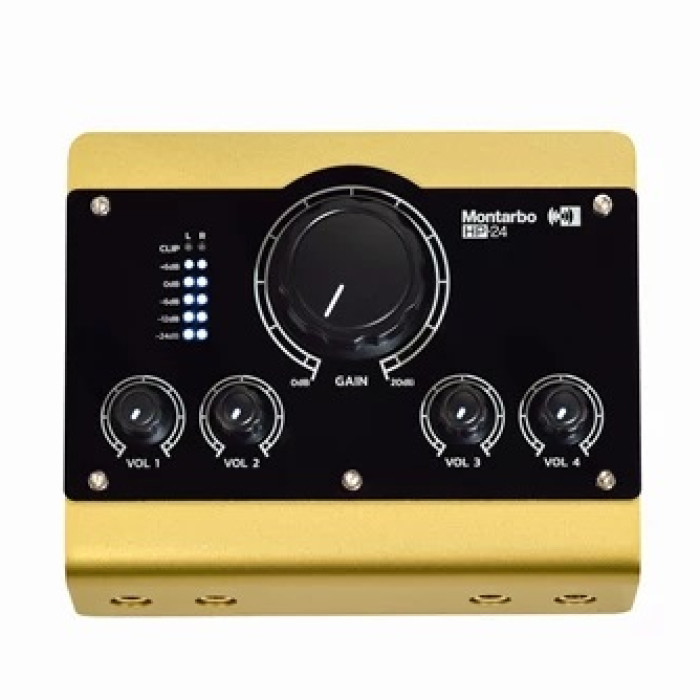

| Model: | HP-24 |
| Manufacturer: | Montarbo |Made in Italy |
4 Output Headphone Amplifier
Compact Headphone Amplifier.
Up to 4 Headphone outputs.
Easy Daisy-Chain configuration for multiple units thanks to auxiliary in-out.
Features
• 2x 6.35mm balanced Input
• 1x 6.35mm stereo AUX Input
• 4x 6.35mm stereo Output
• 1x 6.35mm stereo AUX Output
• Stereo-Mono Switch
• Individual output level for each of the 4 channels
• Easy daisy-chain operations for multiple units
A dedicated auxiliary input and output allows multiple HP-24 modules to be connected together, increasing the total number of available channels when needed. The ground terminal eliminates any buzz due to connection between different devices.
UNIQUE SOFTWARE BUNDLE
Everything you need to get right on track
This product comes with a number of premium software for every engineer’s needs!
Thanks to partnerships with several Italian and International specialized software houses, you’ll get every tool you need to get the job done right out of the box. From specialized audio plugins to online training resources to learn the first steps into Home Recording: Montarbo has got you covered.
| Input Impedance | 50 kohm |
| Frequency Response | 10 Hz - 35 kHz |
| S/N Ratio | 101.7 dB |
| THD+N Ratio | 0.006% @1kHz 32ohm 0.0008% @1kHz 300ohm/600ohm |
| Max Input level | 5.5 dB (32ohm) 12.2 dB (300ohm) 12.3 dB (600ohm) |
| Max Output power | 2x 227mW@32ohm 2x 140mW@300ohm 2x 138mW@600ohm |
| Stereo Isolation | 62.3 dB (32ohm) 77.1 dB (300ohm) 86.4 dB (600ohm) |
| Power | SMPS with interchangeable plugs INPUT: 100-240V~ 50/60Hz 0.75A OUTPUT: 12V DC / 2A 24W |
| Input | 2x 6.35mm balanced 1x 6.35mm stereo AUX |
| Output | 4x 6.35mm stereo 1x 6.35mm stereo AUX |
| Controls | 1x Gain knob 4x Volume Knobs |
| Switch buttons | 1x Stereo-Mono switch 1x ON/OFF switch |
The compact, versatile headphone amplifier able to get the most from any professional headphone. Practically speaking, HP-24 not only allows up to 4 users to listen at the same time but also customizes the sound experience to suit the needs of sound engineers, musicians, and performers, while maintaining the optimal audio performance.
HP-24 perfectly combines the ability to apply high gain with very low distortion levels. The amplifier features L/R balanced inputs. The central knob controls the amplification level of the audio signal, while the LED meter displays the stereo audio level, visually reporting possible saturation/clipping.
Each of the 4 channels has an independent level control. A dedicated button allows switching the signal from stereo to mono and vice versa, when necessary. In addition to this, auxiliary input and output also allow multiple HP-24 modules to be connected together, increasing the total number of available channels when needed. The ground terminal eliminates any buzz due to connection between different devices.
The amplifier is supplied with an external power supply unit with interchangeable plugs (EU/UK/US).
