Sound In Motion

The D40 professional instrumental microphone with its solid all-metal body will stand up to the hardships of night-after-night onstage use with a smile. Its patented Varimotion diaphragm uses a unique laminated material to damp high resonance peaks, leading to a quantum leap in audio performance. The transducer is protected by a sturdy wire-mesh cap and can take extremely high sound pressure levels with ease.

An integrated stand adapter in combination with the included H440 mounting bracket makes the D40 a highly versatile tool for use on drums, percussion, wind instruments and guitar amps.

General Specifications:
• Type: Dynamic pressure gradient microphone
• Polar Pattern: Cardioid
• Audio frequency bandwidth: 50 - 20000 Hz
• Sensitivity at 1000 Hz: 2.5 mV/Pa (–52 dBV re 1 V/Pa)
• Equivalent noise level: 18 dB(A) (IEC 60268-4)
• Max. SPL for 1  / 3  THD: 147 dB SPL / 156 dB SPL
• Electrical impedance at 1000 Hz:  600 Ohms
• Recommended load impedance:  2000 Ohms

Dimensions:
• Length: 104 mm
• Height: 79 mm
• Diameter: 44 mm
• Net Weight: 245 g

Design:
• Body: metal
• Finish: dark stage blue

Audio Output:
• Type: Balanced XLR
• Gender: Male
• Contacts: 3-pin

Application:
• Live Instrument: Yes

Instrument:
• Drums / Percussion: Yes
• Guitar Amps / Bass Amps: Yes

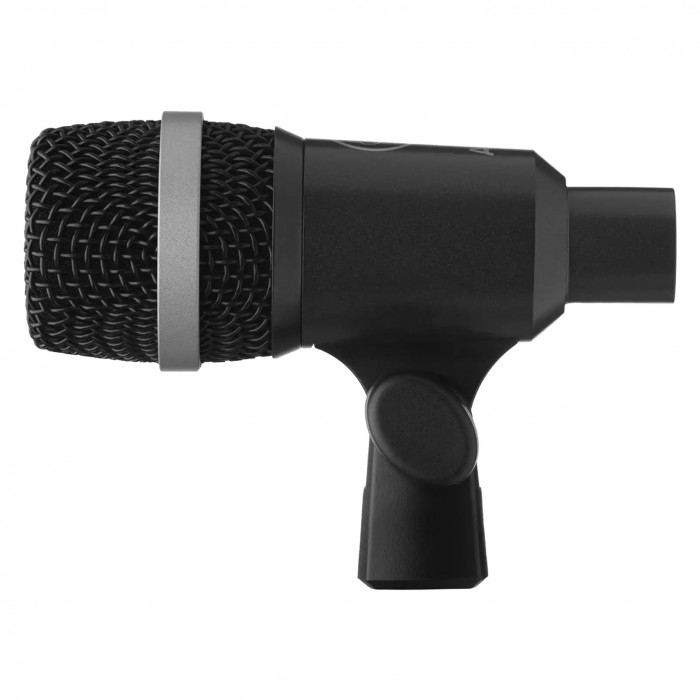

AKG D40
Professional dynamic instrument microphone
