DBX 286A Mic Pre-Amp Processor |
The dbx® 286A's Mic Preamp and Five processors can be used independently or in any combination. Why mic up vocals and instruments through a noisy, blurry mixer? The dbx 286A's sonically pristine Mic Preamp has all the features you need, including wide-ranging input gain control, switchable 48V phantom power and an 80Hz high-pass filter. Use the 286A's newly designed and patented OverEasy® Compressor to transparently smooth out uneven acoustic tracks or deliver that classic "in your face" rock vocal. Take out vocal sibilance and high frequency distortion in cymbals with the 286A's frequency tunable De-Esser. Fine-tune the Enhancer's HF Detail control to add sparkle and crispness to tracks. LF Detail control adds fullness and depth to vocals and bass instruments while simultaneously cleaning up muddy low midrange frequencies. And, the Expander/Gate's separate threshold and ratio controls allow you to subtly reduce headphone leakage or radically gate noisy guitar amps.

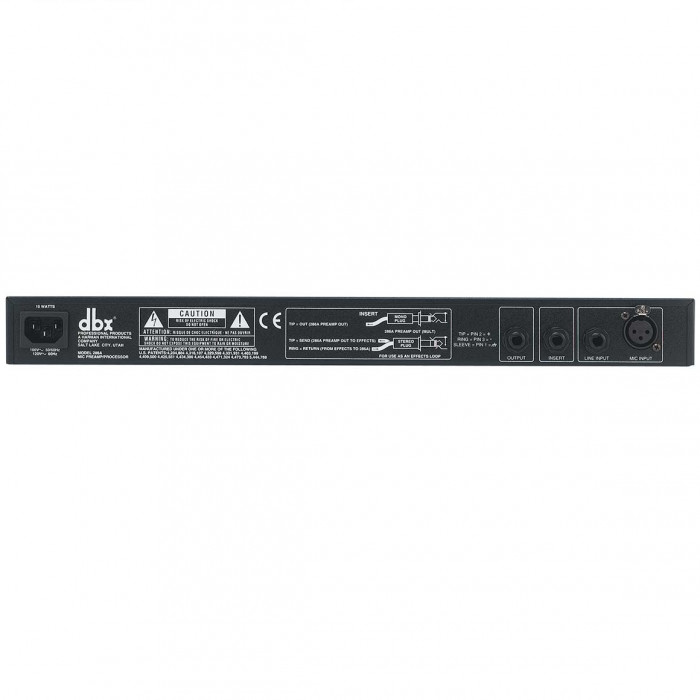

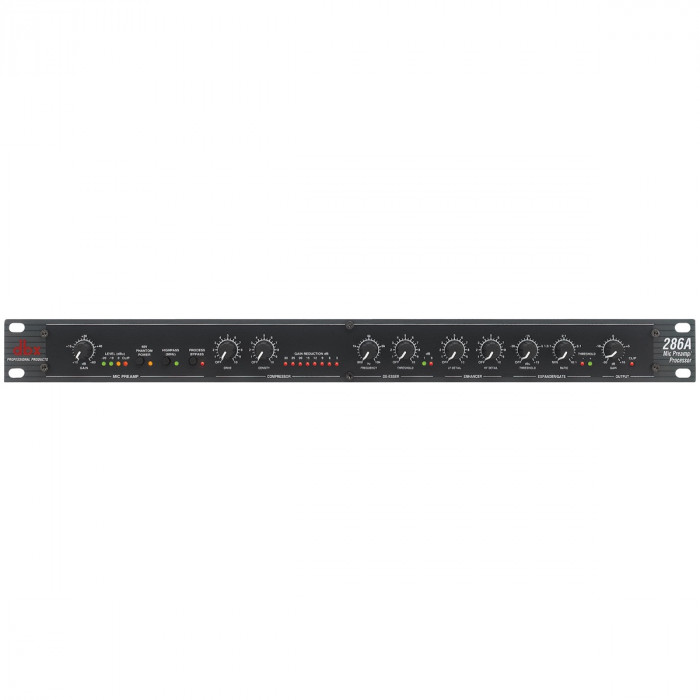

The dbx® 286A's full complement of metering and status LEDs visually guide you to achieving the right sound. The floating balanced XLR mic input accepts balanced or unbalanced inputs. An additional 14" TRS phone jack can accept balanced/ unbalanced line signals to process live electronic instruments or pre-recorded tracks at mixdown. An insert jack between the 286A's Mic Preamp and signal processing sections can be used to "loop out" to external processors (such as EQ) or to mix the Mic Preamp's signal out to an external destination.
The cost and hassle of patching together multiple processors for use on one track can be frustrating. The dbx® 286A gives you all the tools you'll need in one box, with the shortest signal path to help keep your music sounding clean.
• New dbx® standard internal power supply
• Frequency control for De-Esser
• Expanded meter to show heavy De-Essing
• Above/Below threshold indicator for gate
• +48VDC Phantom Power
• Precision detented controls
• Mic Preamp Connector: XLR Floating balanced, Pin 2 Hot
• Mic Preamp Input Impedance: 1.75k ohms
• Mic Preamp gain: +10dB to +60dB
• Mic Preamp Phantom Power: +48 V
• CMRR: >40dB, typically 55dB
• Mic Preamp max input level: 0.2Vrms
• Input Connectors: (line) Floating balanced, TIP Hot
• Input Impedance: (line) 30k ohms unbalanced, 60k ohms balanced
• Max Input: (line) >+21dBu, balanced or unbalanced
• Input Gain Range: (line) -20dB to +30 dB
• Insert Connector: 1/4" TRS: Normalled; tip is Send, ring is Return
• Insert Impedance: >5k ohms (ring-return); 100 ohms (tip-send)
• Insert Max Level: >+21dBu
• Insert Noise: <-84dBu, unweighted (20Hz-20kHz)
• Insert Distortion: <0.01% THD, 20Hz-20kHz, +10dBu
• Output Connectors: 1/4" Balanced/Unbalanced TRS Connectors
• Output Impedance: 100 ohms unbalanced, 200 ohms balanced
• Max Output: >+21dBu, >+20dBm (600 ohms load)
• Gain Adjustment Range: -30dB to +10dB
• Noise: <-80dBu (typically -85dBu, unweighted (20Hz-20kHz)
• Frequency Response: 20Hz to 20kHz, +0.5, -0.5dB
• THD: <0.08%THD, 20Hz-20kHz, +10dBu, all Processing Controls OFF
• Compressor Threshold Range: -40dBu to +20dBu
• Compressor Threshold Characteristic: OverEasy
• Compressor Ratio: >4:1 For input levels beyond 20dB above threshold
• Max Compression: 30dB
• Compressor Attack Time: Program-dependent; adjustable
• Compressor Release Time: Program-dependent; adjustable
• Compressor Distortion: Typically <0.05%THD, 20Hz-20kHz, 15dB G/R, +10dBu Output, DENSITY 0
• De-esser Characteristic: Wideband Gain Reduction
• De-esser Frequency Range: 800Hz to 10kHz High Pass
• De-esser Release Time: 12dB/octave Program-Dependent; approximately 1mS/dB
• Enhancer HF Detail Characteristic: Program-controlled shelving equalizer, approximately 15dB maximum HF boost
• Enhancer LF Detail Characteristic: Bell-shaped boost 80Hz, bell-shaped cut 250Hz, ratio is approximately 2:1
• Expander/Gate Threshold Range: OFF to +15dBu
• Expander/Gate Ratio: Adjustable 1.5:1 to 10:1
• Expander/Gate Max Depth: >50dB
• Expander/Gate Attack Time: Program-Dependent, approximately 2mS
• Expander/Gate Release Time: Program-Dependent, approxiamtely 10mS/dB
• Expander/Gate Dynamic Range: Typically 105dB
• Power Consumption: 15W
• Operating Voltage: DO: 120VAC 60Hz, 100VAC 50/60Hz; EU: 230VAC 50/60Hz
• Operating Temperature: 0°C to 45°C (32°F to 113°F)
• Dimensions: 1.75" x 5.75" x 19" (4.5cm x 14.6cm x 48.5cm)
• Unit Weight: 4.68 lbs/2.13 Kgs
• Shipping Weight: 6.54 lbs/2.97 Kgs
