FaitalPro 8PR200 |
LF Loudspeakers 8 ohms |
8" - 200 W - 95 dB - 8 Ohm
| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 6.4 Ohm |
| AES Power Handling (1) | 200 W |
| Maximum Power Handling (2) | 400 W |
| Sensitivity (1W/1m) | 95 dB |
| Frequency Range | 70÷5000 Hz |
| Voice Coil Diameter | 52 mm (2 in) |
| Winding Material | Al |
| Former Material | Glass Fiber |
| Winding Depth | 19.3 mm (0.76 in) |
| Magnetic Gap Depth | 9 mm (0.35 in) |
| Flux Density | 1.15 T |
| Magnet | Neodymium Ring |
| Basket Material | Aluminum |
| Demodulation | Aluminum Ring |
| Cone Surround (3) | Triple Roll |
| NET Air Volume filled by Loudspeaker | 1 dm^3 (0.035 ft^3) |
| Spider Profile | 1x variable height waves |
NOMINAL SPECIFICATIONS

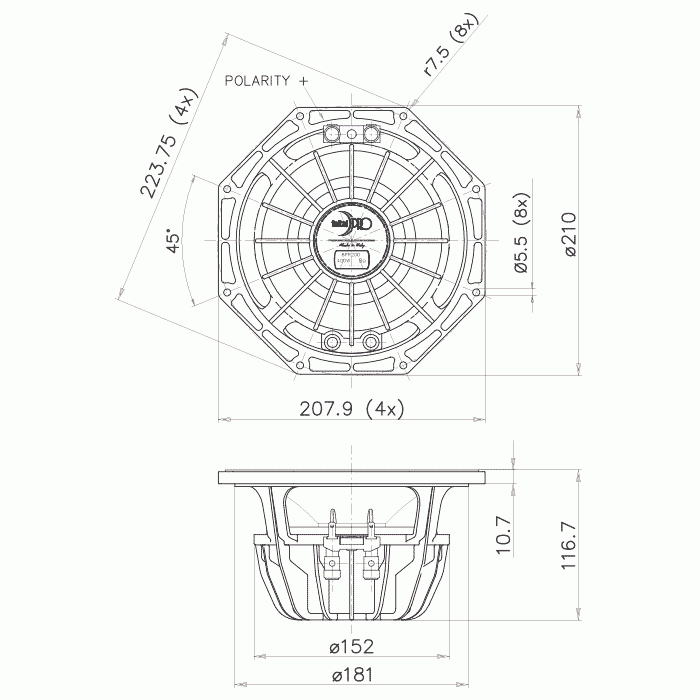

| Nominal Diameter | 200 mm (8 in) |
| Overall Diameter | 223.75/207.9 mm (8.81/8.18 in) |
| Bolt Circle Diameter | 210 mm (8.27 in) |
| Baffle Cutout Diameter | 183 mm (7.20 in) |
| Depth | 116.7 mm (4.59 in) |
| Flange and Gasket Thickness | 10.7 mm (0.42 in) |
| Net Weight | 2.1 Kg (4.6 lb) |
| Shipping Box (Single Carton Box) | 235 x 235 x 155 mm (9.3 x 9.3 x 6.1 in) |
| Shipping Weight | 2.5 Kg (5.5 lb) |
THIELE AND SMALL PARAMETERS
| Fs | 58 Hz |
| Re | 5.1 Ohm |
| Qes | 0.38 |
| Qms | 9.4 |
| Qts | 0.37 |
| Vas | 16.9 dm^3 (0.60 ft^3) |
| Sd | 209 cm^2 (32.40 in^2) |
| Xmax (4) | 8.15 mm |
| Xdamage (5) | 13.5 mm |
| Mms | 27.2 g |
| Bl | 11.5 N/A |
| Le | 0.55 mH |
| Mmd | 23.8 g |
| Cms | 0.28 mm/N |
| Rms | 1.1 Kg/s |
| Eta Zero | 0.84 % |
| EBP | 153 Hz |
PART NUMBER (P/N)
| Push Terminals - 8 Ohm Version | 02003993 |
FaitalPro 8PR200
LF Loudspeakers 8 ohms
