| TECHNICAL PARAMETERS |
{ LF } |
{ HF } |
| Nom. Impedance |
8 Ohm |
8 Ohm |
| Minimum Impedance |
8 Ohm |
7 Ohm |
| AES Power Handling (1) |
250 W |
30 W |
| Max Power Handling (2) |
500 W |
60 W |
| Sensitivity (1W/1m) (3) |
94 dB |
105 dB |
| Frequency Range |
70÷4000 Hz |
1200÷20000 Hz |
| Voice Coil Diameter |
65 mm (2.56 in) |
37 mm (1.46 in) |
| Winding Material |
Al |
Al |
| Former Material |
Glass Fiber |
Kapton |
| Winding Depth |
15 mm (0.59 in) |
2.1 mm (0.08 in) |
| Magnetic Gap Depth |
8 mm (0.31 in) |
2.6 mm (0.10 in) |
| Flux Density |
1.12 T |
1.85 T |
| Min. Cross. Freq. (4) |
- |
1.7 kHz |
| Dispersion Angle |
- |
100° |
| Diaphragm Material |
- |
Ketone Polymer |
| Diaphragm Shape |
- |
Annular |
| Magnet |
Ferrite Ring |
Neodymium Ring |
| Basket Material |
Aluminum |
- |
| Demodulation |
Aluminum Ring |
- |
| Cone Surround (5) |
Triple Roll |
- |
| NET Air Volume filled by Loudspeaker |
1 dm^3 (0.035 ft^3) |
- |
| Spider Profile |
1x variable height waves |
- |
|
THIELE |
NOMINAL SPECIFICATIONS

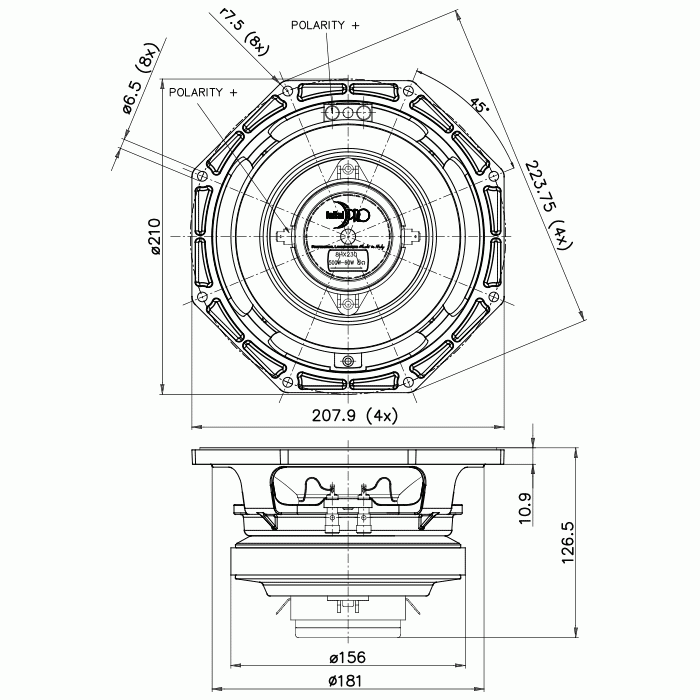

| Nom. Diameter |
200 mm (8 in) |
| Overall Diameter |
223.75/207.9 mm (8.81/8.18 in) |
| Bolt Circle Diameter |
210 mm (8.27 in) |
| Baffle Cutout Diameter |
183 mm (7.20 in) |
| Depth |
126.5 mm (4.98 in) |
| Flange and Gasket Thickness |
10.7 mm (0.42 in) |
| Net Weight |
4.7 Kg (10.4 lb) |
Shipping Box
(Single Carton Box) |
235 x 235 x 155 mm
(9.3 x 9.3 x 6.1 in) |
| Shipping Weight |
5 Kg (11.0 lb) |
