FaitalPro 8HX200 Coaxial Loudspeakers 8 ohms |
LF 8" - 250 W - 95 dB - 8 Ohm | HF 30 W - 107 dB - 8 Ohm |

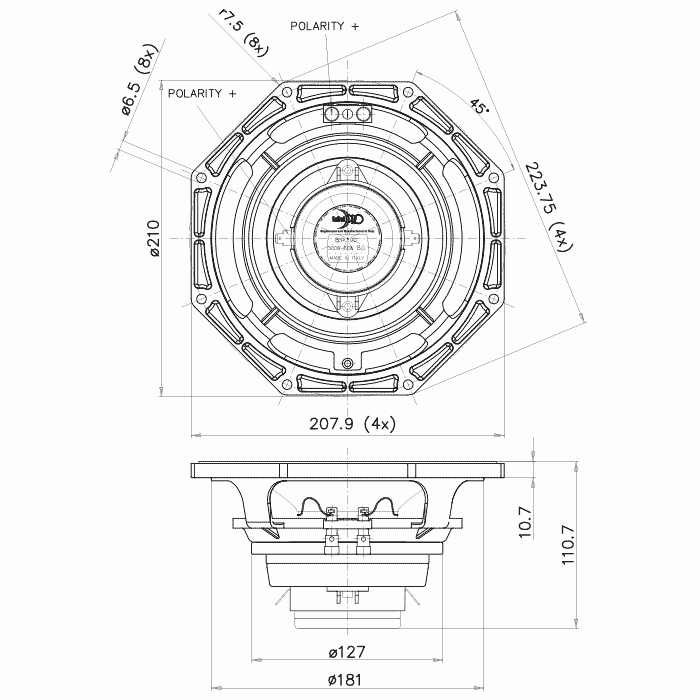

Nominal Specifications
• Nom. Diameter: 200 mm (8 in)
• Overall Diameter: 223.75/207.9 mm (8.81/8.18 in)
• Bolt Circle Diameter: 210 mm (8.27 in)
• Baffle Cutout Diameter: 183 mm (7.20 in)
• Depth: 110.7 mm (4.36 in)
• Flange and Gasket Thickness: 10.7 mm (0.42 in)
• Net Weight: 2.7 kg (6.0 lb)
• Shipping Box (Single Carton Box): 227 x 224 x 132 mm (8.9 x 8.8 x 5.2 in)
• Shipping Weight: 3.4 kg (7.5 lb)
Technical Parameters
Nom. Impedance: LF 8 Ohm | HF 8 Ohm
Minimum Impedance: LF 6.6 Ohm | HF 6.9 Ohm
AES Power Handling (1): LF 250 W | HF 30 W
Max Power Handling (2): LF 500 W | HF 60 W
Sensitivity (1W/1m) (3): LF 95 dB | 107 dB
Frequency Range: LF 75÷4000 Hz | HF 1500÷20000 Hz
Voice Coil Diameter: LF 65 mm (2.56 in) | HF 37 mm (1.46 in)
Winding Material: LF Al | HF Al
Former Material: LF Glass Fiber | HF Kapton
Winding Depth: LF 12.5 mm (0.49 in) | HF 2.1 mm (0.08 in)
Magnetic Gap Depth: LF 8 mm (0.31 in) | HF 2.6 mm (0.10 in)
Flux Density: LF 1.2 T | HF 1.85 T
Min. Cross. Freq. (4): LF - | HF 1.7 kHz
Dispersion Angle: LF - | HF 90°
Diaphragm Material: LF - | HF Ketone Polymer
Diaphragm Shape: LF - | HF Annular
Magnet: LF Neodymium Ring | HF Neodymium Ring
Basket Material: LF Aluminum | HF -
Demodulation: LF Aluminum Ring | HF -
Cone Surround (5): LF Triple Roll | HF -
NET Air Volume filled by Loudspeaker: LF 0.8 dm^3 (0.028 ft^3) |HF -
Spider Profile: LF 1x constant height waves | HF -
Thiele and small parameters LF
• Fs: 76 Hz
• Re [LF]: 5.5 Ohm
• Re [HF]: 5.5 Ohm
• Qes: 0.31
• Qms: 10.5
• Qts: 0.30
• Vas: 13.1 dm^3 (0.46 ft^3)
• Sd: 217.2 cm^2 (33.67 in^2)
• Xmax (6): 4.92 mm
• Xdamage (7): 10.2 mm
• Mms: 22.0 g
• Bl: 13.8 N/A
• Le: 0.51 mH
• Mmd: 18.4 g
• Cms: 0.20 mm/N
• Rms: 1.0 kg/s
• Eta Zero: 1.84 %
• EBP: 245 Hz
PART NUMBER (P/N)
• Push Terminals - 8 Ohm Version - 02004048
