LF 8" - 250 W - 94 dB - 8 Ohm | HF 15 W - 104 dB - 8 Ohm

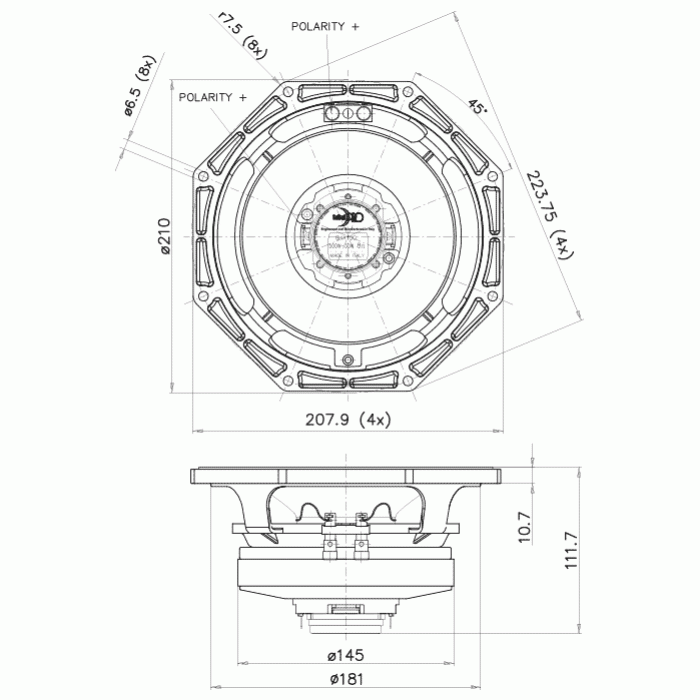

NOMINAL SPECIFICATIONS
• Nom. Diameter: 200 mm (8 in)
• Overall Diameter: 223.75/207.9 mm (8.81/8.18 in)
• Bolt Circle Diameter: 210 mm (8.27 in)
• Baffle Cutout Diameter: 183 mm (7.20 in)
• Depth: 111.7 mm (4.40 in)
• Flange and Gasket Thickness: 10.7 mm (0.42 in)
• Net Weight: 3.6 Kg (7.9 lb)
• Shipping Box (Single Carton Box): 227 x 224 x 132 mm | (8.9 x 8.8 x 5.2 in)
• Shipping Weight: 4.3 Kg (9.5 lb)

Technical Parameters
• Nom. Impedance: LF 8 Ohm | HF 8 Ohm
• Minimum Impedance: LF 6.6 Ohm | HF 6.3 Ohm
• AES Power Handling (1): LF 250 W | HF 15 W
• Max Power Handling (2): LF 500 W | HF 30 W
• Sensitivity (1W/1m) (3): LF 94 dB | HF 104 dB
• Frequency Range: LF 75÷4000 Hz | HF 1500÷18000 Hz
• Voice Coil Diameter:  LF 65 mm (2.56 in) | HF 25 mm (1 in)
• Winding Material: LF Al  | HF Al
• Former Material: LF Glass Fiber| HF Kapton
• Winding Depth: LF 12.5 mm (0.49 in) | HF 1.7 mm (0.07 in)
• Magnetic Gap Depth: LF 8 mm (0.31 in) | HF  2 mm (0.08 in)
• Flux Density: LF  1 T  | HF  1.3 T
• Min. Cross. Freq. (4) : LF - | HF  1.7 kHz
• Dispersion Angle : LF - | HF  90°
• Diaphragm Material: LF - | HF Ketone Polymer
• Diaphragm Shape: LF -  | HF Dome
• Magnet: LF Ferrite Ring | HF Neodymium Ring
• Basket Material: LF -  Aluminum | HF -
• Demodulation No: LF - | HF -
• Cone Surround (5): LF - Triple Roll | HF -
• NET Air Volume filled by Loudspeaker): LF - 0.96 dm^3 (0.034 ft^3) | HF -
• Spider Profile: LF - 1x constant height waves | HF -

Thiele and small parameters  LF
• Fs: 76 Hz
• Re [LF]:  5.5 Ohm
• Re [HF]: 6 Ohm
• Qes: 0.43
• Qms: 9.5
• Qts: 0.41
• Vas: 13.0 dm^3 (0.46 ft^3)
• Sd: 217.2 cm^2 (33.67 in^2)
• Xmax (6): 4.92 mm
• Xdamage (7): 10.25 mm
• Mms: 22.3 g
• Bl: 11.6 N/A
• Le: 0.51 mH
• Mmd: 18.7 g
• Cms: 0.20 mm/N
• Rms: 1.1 kg/s
• Eta Zero: 1.27 %
• EBP: 177 Hz

PART NUMBER (P/N):
• Push Terminals - 8 Ohm Version 02004050

FaitalPro 8HX150
8 Ohms Coaxial Loudspeakers
