FaitalPro 8FE200 |
LF Loudspeakers 8 Ohms |
8" - 130 W - 95 dB
• Nominal Impedance: 8 Ohm
• Minimum Impedance: 6.8 Ohm
• AES Power Handling (1): 130 W
• Maximum Power Handling (2): 260 W
• Sensitivity (1W/1m): 95 dB
• Frequency Range: 60÷5000 Hz
• Voice Coil Diameter: 37 mm (1.46 in)
• Winding Material: Al
• Former Material: Kapton
• Winding Depth: 12 mm (0.47 in)
• Magnetic Gap Depth: 8 mm (0.31 in)
• Flux Density: 1 T
• Magnet: Ferrite Ring
• Basket Material: Steel
• Demodulation: No
• Cone Surround (3): Triple Roll
• NET Air Volume filled by Loudspeaker: 0.6 dm^3 (0.021 ft^3)
• Spider Profile: 1x constant height waves

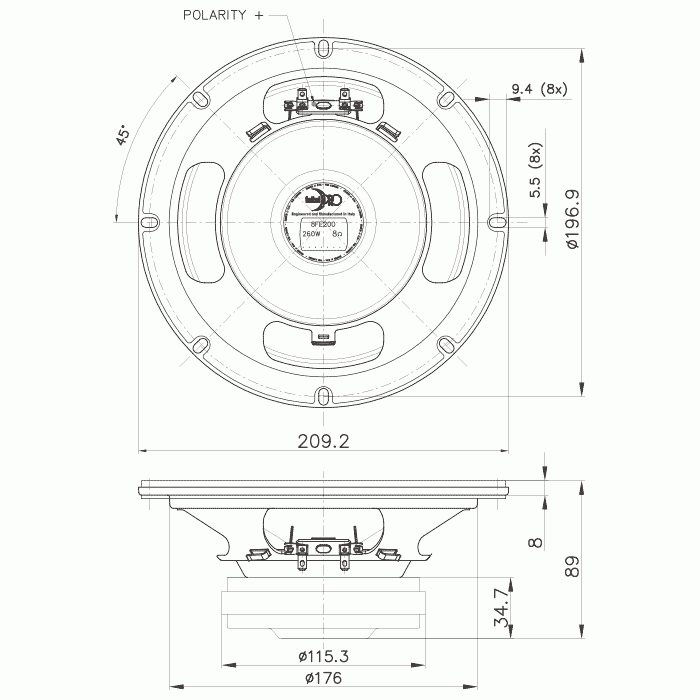

NOMINAL SPECIFICATIONS
• Nominal Diameter: 200 mm (8 in)
• Overall Diameter: 209.2 mm (8.24 in)
• Bolt Circle Diameter: 196.9 mm (7.75 in)
• Baffle Cutout Diameter: 178 mm (7.01 in)
• Depth: 89 mm (3.50 in)
• Flange and Gasket Thickness: 8 mm (0.31 in)
• Net Weight: 2.2 Kg (4.7 lb)
• Shipping Box (Single Carton Box): 227 x 224 x 113 mm | (8.9 x 8.8 x 4.4 in)
• Shipping Weight: 3 Kg (6.6 lb)
THIELE AND SMALL PARAMETERS
• Fs: 80 Hz
• Re: 5.9 Ohm
• Qes: 0.66
• Qms: 13.0
• Qts: 0.63
• Vas: 16.1 dm^3 (0.57 ft^3)
• Sd: 209 cm^2 (32.44 in^2)
• Xmax (4): 4.67 mm
• Xdamage (5): 10.4 mm
• Mms: 15.0 g
• Bl: 8.2 N/A
• Le: 0.44 mH
• Mmd: 11.6 g
• Cms: 0.26 mm/N
• Rms: 0.6 Kg/s
• Eta Zero: 1.21 %
• EBP: 121 Hz
PART NUMBER (P/N)
• Faston Terminals - 8 Ohm Version: 02004018
FaitalPro 8FE200
LF Loudspeakers 8 ohms
