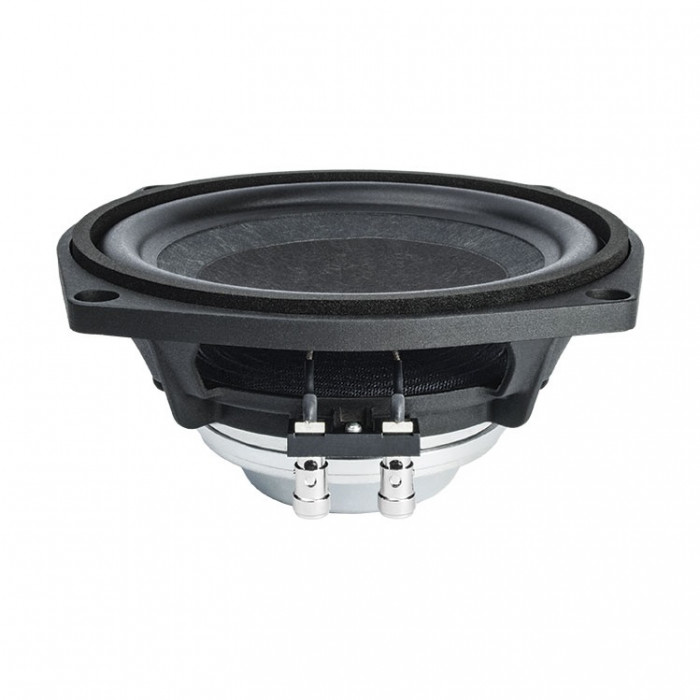

FaitalPro 6RS140 | LF Loudspeakers 8 ohms |
6" - 200 W - 93 dB |
• Nominal Impedance: 8 Ohm
• Minimum Impedance: 6.3 Ohm
• AES Power Handling (1): 200 W
• Maximum Power Handling (2): 400 W
• Sensitivity (1W/1m): 93 dB
• Frequency Range: 60÷6000 Hz
• Voice Coil Diameter: 44 mm (1.73 in)
• Winding Material: AI
• Former Material: Glass Fiber
• Winding Depth: 13.2 mm (0.52 in)
• Magnetic Gap Depth: 6 mm (0.24 in)
• Flux Density: 1.5 T
• Magnet: Neodymium Ring
• Basket Material: Aluminum
• Demodulation: Aluminum Ring
• Cone Surround (3): Half Roll
• NET Air Volume filled by Loudspeaker: 0.37 dm^3 (0.013 ft^3)
• Spider Profile: 1x variable height waves
NOMINAL SPECIFICATIONS
• Nominal Diameter: 160 mm (6 in)
• Overall Diameter: 186.5/162 mm (7.34/6.37 in)
• Bolt Circle Diameter: 172 mm (6.77 in)
• Baffle Cutout Diameter: 147 mm (5.78 in)
• Depth: 76 mm (2.99 in)
• Flange and Gasket Thickness: 11 mm (0.43 in)
• Net Weight: 1.2 Kg (2.6 lb)
• Shipping Box (Single Carton Box): 190 x 185 x 103 mm | (7.5 x 7.3 x 4.1 in)
• Shipping Weight: 1.3 Kg (2.9 lb)
THIELE AND SMALL PARAMETERS
• Fs: 65 Hz
• Re: 5.3 Ohm
• Qes: 0.28
• Qms: 5.8
• Qts: 0.27
• Vas: 9.3 dm^3 (0.33 ft^3)
• Sd: 133 cm^2 (20.62 in^2)
• Xmax (4): 5.60 mm
• Xdamage (5): 11.6 mm
• Mms: 16.0 g
• Bl: 11 N/A
• Le: 0.28 mH
• Mmd: 14.3 g
• Cms: 0.37 mm/N
• Rms: 1.1 Kg/s
• Eta Zero: 0.86 %
• EBP: 232 Hz
PART NUMBER (P/N)
• Push Terminals - 8 Ohm Version: 01604292
