FaitalPro 6PR122 |
LF Loudspeakers - 8 ohms |
6" - 120 W - 97 dB
• Nominal Impedance: 8 Ohm
• Minimum Impedance: 6.8 Ohm
• AES Power Handling (1): 120 W
• Maximum Power Handling (2): 240 W
• Sensitivity (1W/1m): 97 dB
• Frequency Range: 125÷10000 Hz
• Voice Coil Diameter: 37 mm (1.46 in)
• Winding Material: Al
• Former Material: Kapton
• Winding Depth: 7.5 mm (0.30 in)
• Magnetic Gap Depth: 6 mm (0.24 in)
• Flux Density: 1.6 T
• Magnet: Neodymium Ring
• Basket Material: Aluminum
• Demodulation: Aluminum Ring
• Cone Surround (3): Half Roll
• NET Air Volume filled by Loudspeaker: 0.38 dm^3 (0.013 ft^3)
• Spider Profile: 1x constant height waves

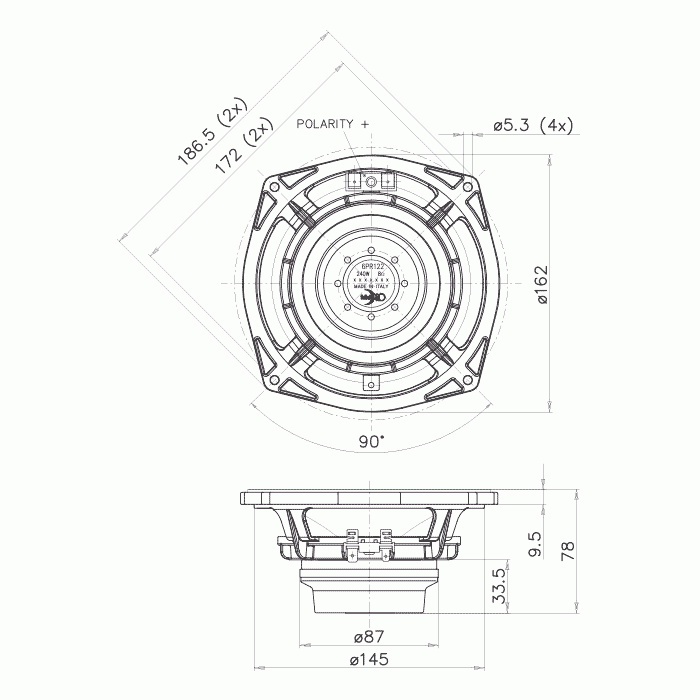

NOMINAL SPECIFICATIONS
• Nominal Diameter: 160 mm (6 in)
• Overall Diameter: 186.5/162 mm (7.34/6.37 in)
• Bolt Circle Diameter: 172 mm (6.77 in)
• Baffle Cutout Diameter: 147 mm (5.79 in)
• Depth: 78 mm (3.07 in)
• Flange and Gasket Thickness: 9.5 mm (0.37 in)
• Net Weight: 1.3 Kg (2.8 lb)
• Shipping Box (Single Carton Box): 190 x 185 x 103 mm | (7.5 x 7.3 x 4.1 in)
• Shipping Weight: 1.5 Kg (3.2 lb)
THIELE AND SMALL PARAMETERS
• Fs: 110 Hz
• Re: 6 Ohm
• Qes: 0.44
• Qms: 3.3
• Qts: 0.39
• Vas: 4.7 dm^3 (0.17 ft^3)
• Sd: 137.3 cm^2 (21.28 in^2)
• Xmax (4): 2.75 mm
• Xdamage (5): 11.6 mm
• Mms: 11.7 g
• Bl: 10.5 N/A
• Le: 0.15 mH
• Mmd: 9.9 g
• Cms: 0.18 mm/N
• Rms: 2.4 Kg/s
• Eta Zero: 1.38 %
• EBP: 250 Hz
PART NUMBER (P/N)
• Faston Terminals - 8 Ohm Version: 01604160
FaitalPro 6PR122
LF Loudspeakers 8 ohms
