FaitalPro 6PR110 |
LF Loudspeakers 8 ohms |
6" - 150 W - 96 dB
• Nominal Impedance: 8 Ohm
• Minimum Impedance: 7 Ohm
• AES Power Handling (1): 150 W
• Maximum Power Handling (2): 300 W
• Sensitivity (1W/1m): 96 dB
• Frequency Range: 100÷6000 Hz
• Voice Coil Diameter: 37 mm (1.46 in)
• Winding Material: Al
• Former Material: Kapton
• Winding Depth: 7.5 mm (0.30 in)
• Magnetic Gap Depth: 6 mm (0.24 in)
• Flux Density: 1.35 T
• Magnet: Ferrite Ring
• Basket Material: Aluminum
• Demodulation: No
• Cone Surround (3): Half Roll
• NET Air Volume filled by Loudspeaker: 0.7 dm^3 (0.025 ft^3)
• Spider Profile: 1x constant height waves

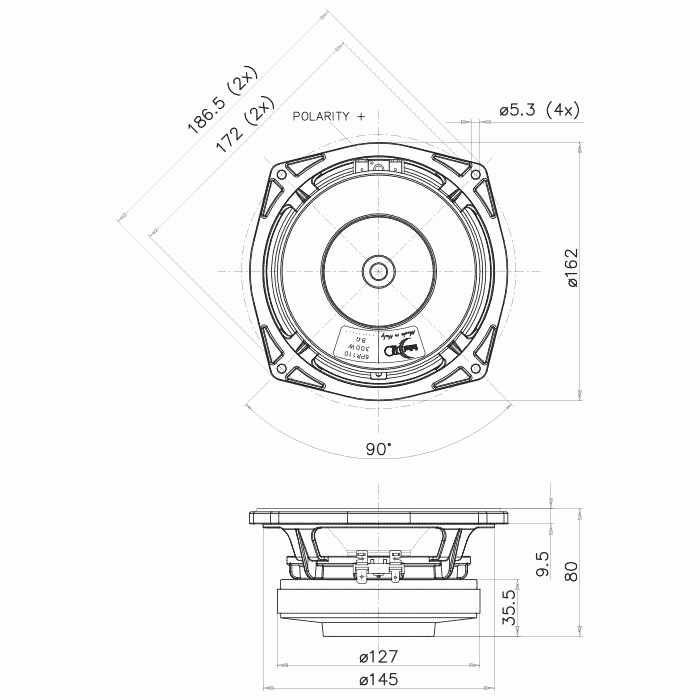

NOMINAL SPECIFICATIONS
• Nominal Diameter: 160 mm (6 in)
• Overall Diameter: 186.5/162 mm (7.34/6.37 in)
• Bolt Circle Diameter: 172 mm (6.77 in)
• Baffle Cutout Diameter: 147 mm (5.79 in)
• Depth: 80 mm (3.15 in)
• Flange and Gasket Thickness: 9.5 mm (0.37 in)
• Net Weight: 2.2 Kg (4.9 lb)
• Shipping Box (Single Carton Box): 190 x 185 x 103 mm | (7.5 x 7.3 x 4.1 in)
• Shipping Weight: 2.4 Kg (5.3 lb)
THIELE AND SMALL PARAMETERS
• Fs: 100 Hz
• Re: 6 Ohm
• Qes: 0.60
• Qms: 4.2
• Qts: 0.53
• Vas: 5.6 dm^3 (0.20 ft^3)
• Sd: 137 cm^2 (21.28 in^2)
• Xmax (4): 2.75 mm
• Xdamage (5): 11.6 mm
• Mms: 12.0 g
• Bl: 8.5 N/A
• Le: 0.22 mH
• Mmd: 10.2 g
• Cms: 0.20 mm/N
• Rms: 1.8 Kg/s
• Eta Zero: 0.86 %
• EBP: 167 Hz
PART NUMBER (P/N)
• Faston Terminals - 8 Ohm Version: 01604091
FaitalPro 6PR110
LF Loudspeakers 8 ohms
