FaitalPro 6FE200 |
LF Loudspeakers 8 ohms |
6" - 130 W - 95 dB
• Nominal Impedance: 8 Ohm
• Minimum Impedance: 6.8 Ohm
• AES Power Handling (1): 130 W
• Maximum Power Handling (2): 260 W
• Sensitivity (1W/1m): 95 dB
• Frequency Range: 85÷6000 Hz
• Voice Coil Diameter: 37 mm (1.46 in)
• Winding Material: Al
• Former Material: Kapton
• Winding Depth: 12 mm (0.47 in)
• Magnetic Gap Depth: 8 mm (0.31 in)
• Flux Density: 1 T
• Magnet: Ferrite Ring
• Basket Material: Steel
• Demodulation: No
• Cone Surround (3): M-Roll
• NET Air Volume filled by Loudspeaker: 0.45 dm^3 (0.016 ft^3)
• Spider Profile: 1x constant height waves
NOMINAL SPECIFICATIONS

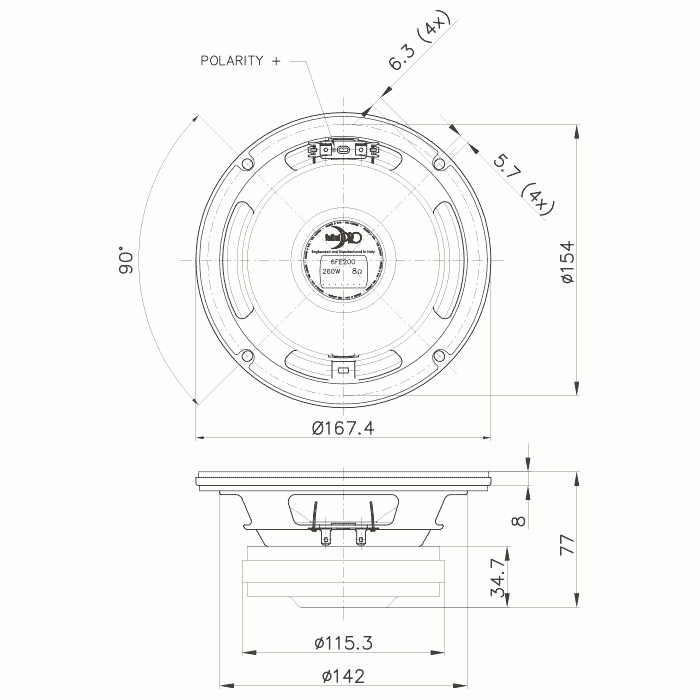

• Nominal Diameter: 160 mm (6 in)
• Overall Diameter: 167.4 mm (6.59 in)
• Bolt Circle Diameter: 154 mm (6.06 in)
• Baffle Cutout Diameter: 144 mm (5.67 in)
• Depth: 77 mm (3.03 in)
• Flange and Gasket Thickness: 8 mm (0.31 in)
• Net Weight: 2 Kg (4.4 lb)
• Shipping Box (Single Carton Box): 190 x 185 x 103 mm | (7.5 x 7.3 x 4.1 in)
• Shipping Weight: 2.2 Kg (4.9 lb)
THIELE AND SMALL PARAMETERS
• Fs: 120 Hz
• Re: 5.9 Ohm
• Qes: 0.75
• Qms: 6.2
• Qts: 0.67
• Vas: 3.6 dm^3 (0.13 ft^3)
• Sd: 131 cm^2 (20.23 in^2)
• Xmax (4): 4.67 mm
• Xdamage (5): 10.4 mm
• Mms: 11.5 g
• Bl: 8.2 N/A
• Le: 0.4 mH
• Mmd: 9.8 g
• Cms: 0.15 mm/N
• Rms: 1.4 Kg/s
• Eta Zero: 0.80 %
• EBP: 160 Hz
PART NUMBER (P/N)
• Faston Terminals - 8 Ohm Version: 01604017
FaitalPro 6FE200
LF Loudspeakers 8 ohms
