FaitalPro 6FE100 |
LF Loudspeakers 8 ohms |
6" - 100 W - 91 dB
• Nominal Impedance: 8 Ohm
• Minimum Impedance: 5.9 Ohm
• AES Power Handling (1): 100 W
• Maximum Power Handling (2): 200 W
• Sensitivity (1W/1m): 91 dB
• Frequency Range: 63÷5000 Hz
• Voice Coil Diameter: 32 mm (1.26 in)
• Winding Material: Cu
• Former Material: Kapton
• Winding Depth: 12.5 mm (0.49 in)
• Magnetic Gap Depth: 6 mm (0.24 in)
• Flux Density: 1 T
• Magnet: Ferrite Ring
• Basket Material: Steel
• Demodulation: Aluminum Ring
• Cone Surround (3): Half Roll
• NET Air Volume filled by Loudspeaker: 0.4 dm^3 (0.014 ft^3)
• Spider Profile: 1x constant height waves

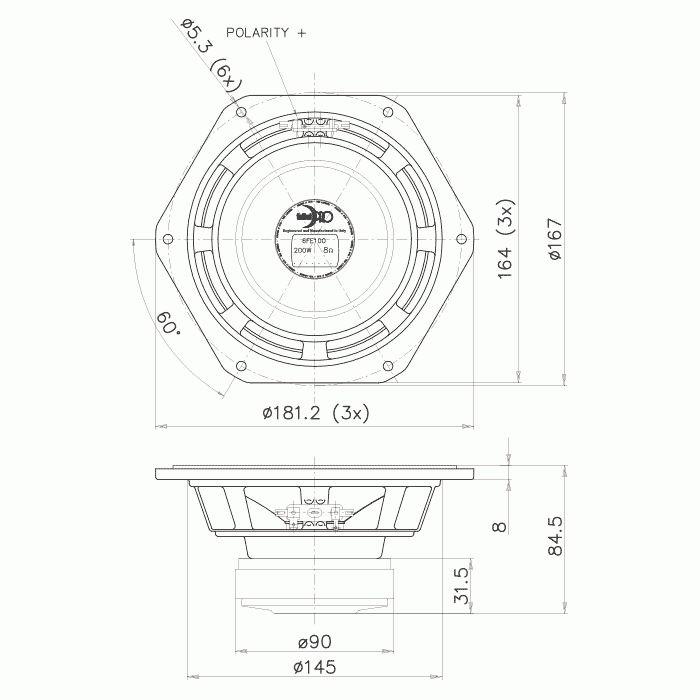

NOMINAL SPECIFICATIONS
• Nominal Diameter: 160 mm (6 in)
• Overall Diameter: 181.2/164 mm (7.13/6.46 in)
• Bolt Circle Diameter: 167 mm (6.57 in)
• Baffle Cutout Diameter: 147 mm (5.79 in)
• Depth: 84.5 mm (3.33 in)
• Flange and Gasket Thickness: 8 mm (0.31 in)
• Net Weight: 1.2 Kg (2.6 lb)
• Shipping Box (Single Carton Box - 4 units): 393 x 380 x 128 mm | (15.5 x 15.0 x 5.0 in)
• Shipping Weight (4 units): 5.6 Kg (12.3 lb)
THIELE AND SMALL PARAMETERS
• Fs: 61 Hz
• Re: 5.4 Ohm
• Qes: 0.60
• Qms: 6.0
• Qts: 0.55
• Vas: 15.1 dm^3 (0.53 ft^3)
• Sd: 149 cm^2 (23.10 in^2)
• Xmax (4): 5.25 mm
• Xdamage (5): 13.15 mm
• Mms: 14.0 g
• Bl: 6.8 N/A
• Le: 0.5 mH
• Mmd: 11.9 g
• Cms: 0.48 mm/N
• Rms: 0.90 Kg/s
• Eta Zero: 0.53 %
• EBP: 102 Hz
PART NUMBER (P/N)
• Faston Terminals - 8 Ohm Version: 01603942
FaitalPro 6FE100
LF Loudspeakers 8 ohms
