FaitalPro 5FE120 |
LF Loudspeakers 8 ohms |
5" - 80 W - 88 dB
• Nominal Impedance: 8 Ohm
• Minimum Impedance: 6.2 Ohm
• AES Power Handling (1): 80 W
• Maximum Power Handling (2): 160 W
• Sensitivity (1W/1m): 88 dB
• Frequency Range: 63÷6300 Hz
• Voice Coil Diameter: 32 mm (1.26 in)
• Winding Material: Cu
• Former Material: Kapton
• Winding Depth: 12.5 mm (0.49 in)
• Magnetic Gap Depth: 6 mm (0.24 in)
• Flux Density: 1 T
• Magnet: Ferrite Ring
• Basket Material: Steel
• Demodulation: Aluminum Ring
• Cone Surround (3): Half Roll
• NET Air Volume filled by Loudspeaker: 0.3 dm^3 (0.011 ft^3)
• Spider Profile: 1x constant height waves
NOMINAL SPECIFICATIONS

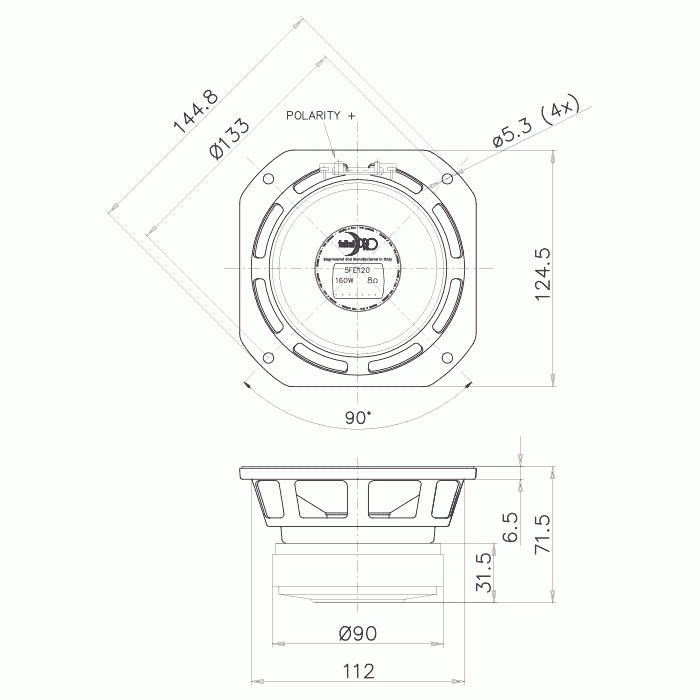

• Nominal Diameter: 130 mm (5 in)|
• Overall Diameter: 144.8/124.5 mm (5.7/4.9 in)
• Bolt Circle Diameter: 133 mm (5.24 in)
• Baffle Cutout Diameter: 114 mm (4.49 in)
• Depth: 71.5 mm (2.81 in)
• Flange and Gasket Thickness: 6.5 mm (0.25 in)
• Net Weight: 1.13 Kg (2.5 lb)
• Shipping Box (Single Carton Box - 8 units): 302 x 275 x 186 mm | (11.9 x 10.8 x 7.3 in)
• Shipping Weight (8 units): 10.2 Kg (22.5 lb)
THIELE AND SMALL PARAMETERS
• Fs: 65 Hz
• Re: 5.4 Ohm
• Qes: 0.51
• Qms: 7.4
•Qts: 0.48
• Vas: 5.4 dm^3 (0.19 ft^3)
• Sd: 84 cm^2 (13.07 in^2)
• Xmax (4): 5.25 mm
• Xdamage (5): 9.5 mm
• Mms: 11.0 g
• Bl: 6.9 N/A
• Le: 0.41 mH
• Mmd: 10.1 g
• Cms: 0.55 mm/N
• Rms: 0.6 Kg/s
• Eta Zero: 0.28 %
• EBP: 127 Hz
PART NUMBER (P/N)
• Faston Terminals - 8 Ohm Version: 01303979
