FaitalPro 4FE35 |
LF Loudspeakers 8 ohms |
4" - 30 W - 91 dB
• Nominal Impedance: 8 Ohm
• Minimum Impedance: 7.2 Ohm
• AES Power Handling (1): 30 W
• Maximum Power Handling (2): 60 W
• Sensitivity (1W/1m): 91 dB
• Frequency Range: 90÷20000 Hz
• Voice Coil Diameter: 19 mm (0.75 in)
• Winding Material: Al
• Former Material: Kapton
• Winding Depth: 6.8 mm (0.27 in)
• Magnetic Gap Depth: 4 mm (0.16 in)
• Flux Density: 1.1 T
• Magnet: Ferrite Ring
• Basket Material: Steel
• Demodulation: Copper Cap
• Cone Surround (3): Half Roll
• NET Air Volume filled by Loudspeaker: 0.150 dm^3 (0.005 ft^3)
• Spider Profile: 1x constant height waves

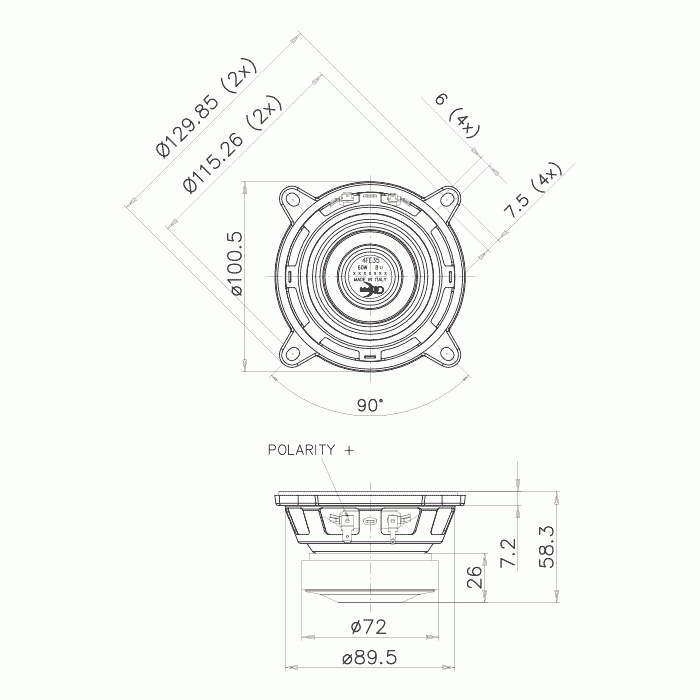

NOMINAL SPECIFICATIONS
• Nominal Diameter: 100 mm (4 in)
• Overall Diameter: 129.85/100.5 mm (5.11/3.96 in)
• Bolt Circle Diameter: 115.26 mm (4.54 in)
• Baffle Cutout Diameter: 91.5 mm (3.60 in)
• Depth: 58.3 mm (2.30 in)
• Flange and Gasket Thickness: 7.2 mm (0.28 in)
• Net Weight: 570 g (1.3 lb)
• Shipping Box Single Carton Box - 8 units): 225 x 225 x 150 mm | (8.9 x 8.9 x 5.9 in)
• Shipping Weight (8 units): 5 Kg (11.0 lb)
THIELE AND SMALL PARAMETERS
• Fs: 100 Hz
• Re: 6.5 Ohm
• Qes: 1.04
• Qms: 4.2
• Qts: 0.83
• Vas: 2.4 dm^3 (0.07 ft^3)
• Sd: 51.9 cm^2 (8.04 in^2)
• Xmax (4): 2.73 mm
• Xdamage (5): 6.8 mm
• Mms: 3.9 g
• Bl: 3.9 N/A
• Le: 0.1 mH
• Mmd: 3.5 g
• Cms: 0.65 mm/N
• Rms: 0.6 Kg/s
• Eta Zero: 0.23 %
• EBP: 96 Hz
PART NUMBER (P/N)
• Faston Terminals - 8 Ohm Version: 01004086
FaitalPro 4FE35
LF Loudspeakers 8 ohms
