4" - 30 W - 91 dB
• Nominal Impedance: 8 Ohm
• Minimum Impedance: 7 Ohm
• AES Power Handling (1): 30 W
• Maximum Power Handling (2): 60 W
• Sensitivity (1W/1m): 91 dB
• Frequency Range: 90÷20000 Hz
• Voice Coil Diameter: 19 mm (0.75 in)
• Winding Material: Al
• Former Material: Kapton
• Winding Depth: 6.8 mm (0.27 in)
• Magnetic Gap Depth: 4 mm (0.16 in)
• Flux Density: 1.4 T
• Magnet: Neodymium Ring
• Basket Material: Steel
• Demodulation: No
• Cone Surround (3): Half Roll
• NET Air Volume filled by Loudspeaker: 0.075 dm^3 (0.003 ft^3)
• Spider Profile: 1x constant height waves

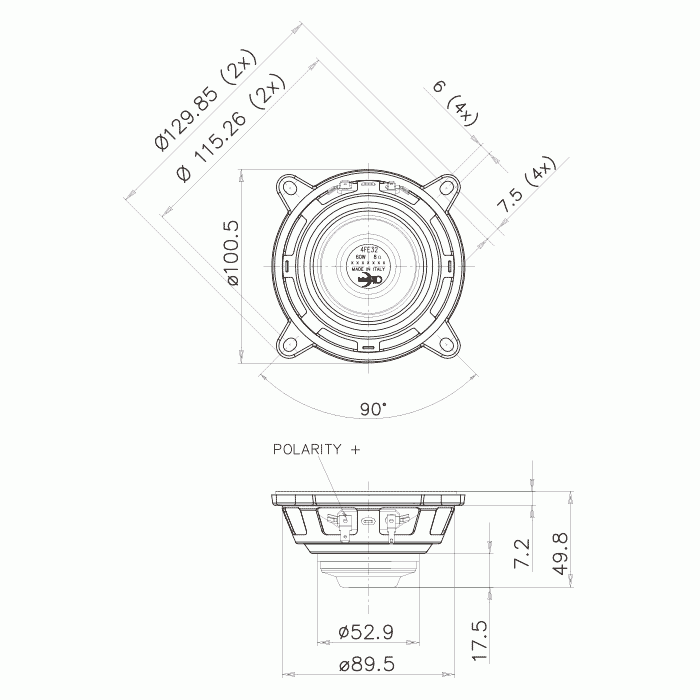

NOMINAL SPECIFICATIONS
• Nominal Diameter: 100 mm (4 in)
• Overall Diameter: 129.85/100.5 mm (5.11/3.96 in)
• Bolt Circle Diameter: 115.26 mm (4.54 in)
• Baffle Cutout Diameter: 91.5 mm (3.60 in)
• Depth: 49.8 mm (1.96 in)
• Flange and Gasket Thickness: 7.2 mm (0.28 in)
• Net Weight: 270 g (0.6 lb)
• Shipping Box (Single Carton Box - 8 units): 225 x 225 x 150 mm | (8.9 x 8.9 x 5.9 in)
• Shipping Weight (8 units): 2.8 Kg (6.2 lb)

THIELE AND SMALL PARAMETERS
• Fs: 100 Hz
• Re: 6.5 Ohm
• Qes: 0.70
• Qms: 4.9
• Qts: 0.61
• Vas: 2.3 dm^3 (0.08 ft^3)
• Sd: 51.9 cm^2 (8.04 in^2)
• Xmax (4): 2.73 mm
• Xdamage (5): 6.8 mm
• Mms: 4.2 g
• Bl: 4.8 N/A
• Le: 0.18 mH
• Mmd: 3.8 g
• Cms: 0.60 mm/N
• Rms: 0.5 Kg/s
• Eta Zero: 0.30 %
• EBP: 143 Hz

PART NUMBER (P/N)
• Faston Terminals - 8 Ohm Version: 01004084

FaitalPro 4FE32
LF Loudspeakers 8 ohms
