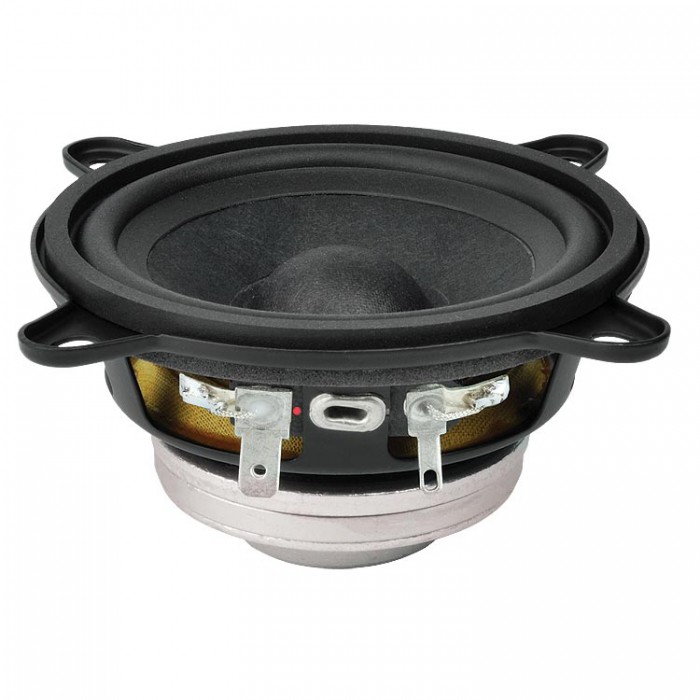

FaitalPro 3FE22 | LF Loudspeakers 8 ohms |
3" - 20 W - 91 dB |
TECHNICAL PARAMETERS
• Nominal Impedance: 8 Ohm
• Minimum Impedance: 6.2 Ohm
• AES Power Handling (1): 20 W
• Maximum Power Handling (2): 40 W
• Sensitivity (1W/1m): 91 dB
• Frequency Range: 100÷20000 Hz
• Voice Coil Diameter: 19 mm (0.75 in)
• Winding Material: Al
• Former Material: Kapton
• Winding Depth: 5 mm (0.20 in)
• Magnetic Gap Depth: 4 mm (0.16 in)
• Flux Density: 1.4 T
• Magnet: Neodymium Ring
• Basket Material: Steel
• Demodulation: No
• Cone Surround (3): Half Roll
• NET Air Volume filled by Loudspeaker: 0.060 dm^3 (0.002 ft^3)
• Spider Profile: 1x constant height waves

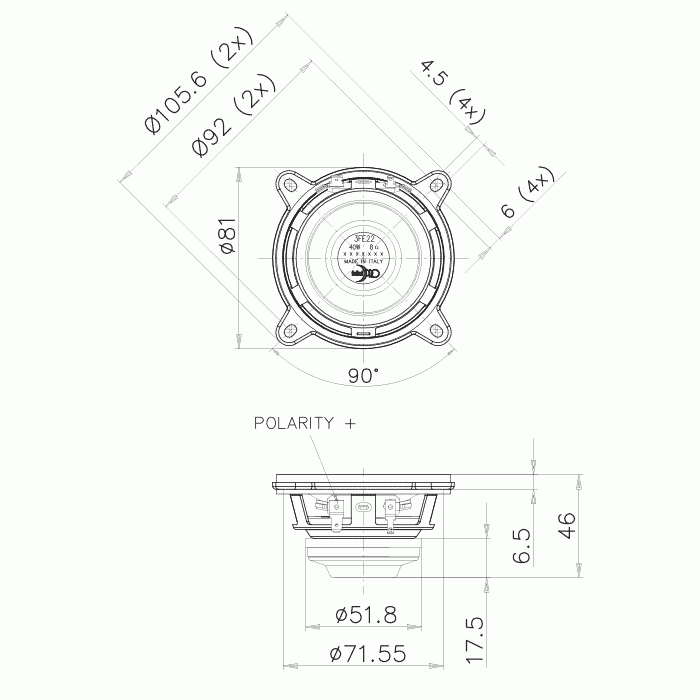

NOMINAL SPECIFICATIONS
• Nominal Diameter: 80 mm (3 in)
• Overall Diameter: 105.6/81 mm (4.16/3.19 in)
• Bolt Circle Diameter: 92 mm (3.62 in)
• Baffle Cutout Diameter: 73.6 mm (2.90 in)
• Depth: 46 mm (1.81 in)
• Flange and Gasket Thickness: 6.5 mm (0.26 in)
• Net Weight: 240 g (0.53 lb)
• Shipping Box (Single Carton Box - 36 units): 285 x 285 x 255 mm | (11.2 x 11.2 x 10.0 in)
• Shipping Weight (36 units): 10 Kg (22.00 lb)
THIELE AND SMALL PARAMETERS
• Fs: 110 Hz
• Re: 6.2 Ohm
• Qes: 0.52
• Qms: 5.0
• Qts: 0.47
• Vas: 1.3 dm^3 (0.04 ft^3)
• Sd: 33 cm^2 (5.12 in^2)
• Xmax (4): 1.83 mm
• Xdamage (5): 7.3 mm
• Mms: 2.5 g
• Bl: 4.5 N/A
• Le: 0.15 mH
• Mmd: 2.3 g
• Cms: 0.84 mm/N
• Rms: 0.3 Kg/s
• Eta Zero: 0.31 %
• EBP: 212 Hz
PART NUMBER (P/N)
• Faston Terminals - 8 Ohm Version: 00804083
FaitalPro LF Loudspeakers 3FE22 8 ohms
