FaitalPro 18XL1800 |
LF Loudspeakers 8 ohms |
18" - 1600 W - 95 dB
• Nominal Impedance: 8 Ohm
• Minimum Impedance: 6.7 Ohm
• AES Power Handling (1): 1600 W
• Maximum Power Handling (2): 3200 W
• Sensitivity (1W/1m): 95 dB
• Frequency Range: 30÷1600 Hz
• Voice Coil Diameter: 100 mm (4 in)
• Winding Material: Cu
• Former Material: Glass Fiber
• Winding Depth: 45 mm (1.77 in)
• Magnetic Gap Depth: 14 mm (0.55 in)
• Flux Density: 1.15 T
• Magnet: Neodymium Sectors
• Basket Material: Aluminum
• Demodulation: Aluminum Ring
• Cone Surround (3): Triple Roll
• NET Air Volume filled by Loudspeaker: 7.3 dm^3 (0.258 ft^3)
• Spider Profile: 2x non-adjacent symmetrical constant height waves
NOMINAL SPECIFICATIONS

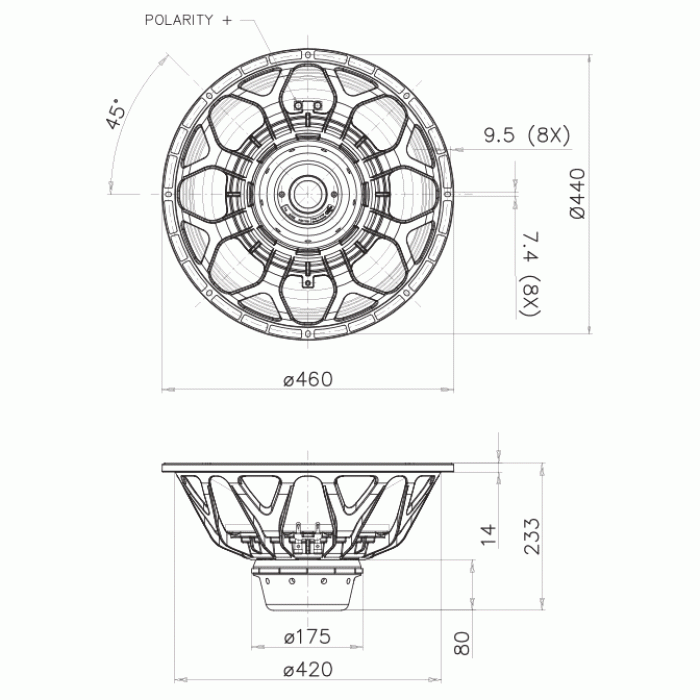

• Nominal Diameter: 460 mm (18 in)
• Overall Diameter: 460 mm (18.11 in)
• Bolt Circle Diameter: 440 mm (17.32 in)
• Baffle Cutout Diameter: 422 mm (16.61 in)
• Depth: 233 mm (9.17 in)
• Flange and Gasket Thickness: 14 mm (0.55 in)
• Net Weight: 10.2 Kg (22.5 lb)
• Shipping Box (Single Carton Box): 490 x 485 x 275 mm | (19.3 x 19.1 x 10.8 in)
• Shipping Weight: 11.7 Kg (25.8 lb)
THIELE AND SMALL PARAMETERS
• Fs: 29 Hz
• Re: 5.35 Ohm
• Qes: 0.42
• Qms: 9.9
• Qts: 0.4
• Vas: 215.5 dm^3 (7.61 ft^3)
• Sd: 1187 cm^2 (183.99 in^2)
• Xmax (4): 20.17 mm
• Xdamage (5): 36 mm
• Mms: 275.0 g
• Bl: 25.4 N/A
• Le: 2.04 mH
• Mmd: 228.8 g
• Cms: 0.11 mm/N
• Rms: 5.1 Kg/s
• Eta Zero: 1.24 %
• EBP: 69 Hz
