FaitalPro 18XL1600 |
LF Loudspeakers 8 ohms |
18" - 1600 W - 98 dB
• Nominal Impedance: 8 Ohm
• Minimum Impedance: 7.4 Ohm
• AES Power Handling (1): 1600 W
• Maximum Power Handling (2): 3200 W
• Sensitivity (1W/1m): 98 dB
• Frequency Range: 30÷1500 Hz
• Voice Coil Diameter: 100 mm (4 in)
• Winding Material: Cu
• Former Material: Glass Fiber
• Winding Depth: 31 mm (1.22 in)
• Magnetic Gap Depth: 15.5 mm (0.61 in)
• Flux Density: 1.05 T
• Magnet: Neodymium Slug Crown
• Basket Material: Aluminum
• Demodulation: Triple Al Dem. Ring
• Cone Surround (3): Triple Roll
• NET Air Volume filled by Loudspeaker: 7.3 dm^3 (0.258 ft^3)
• Spider Profile: 2x non-adjacent symmetrical constant height waves
NOMINAL SPECIFICATIONS

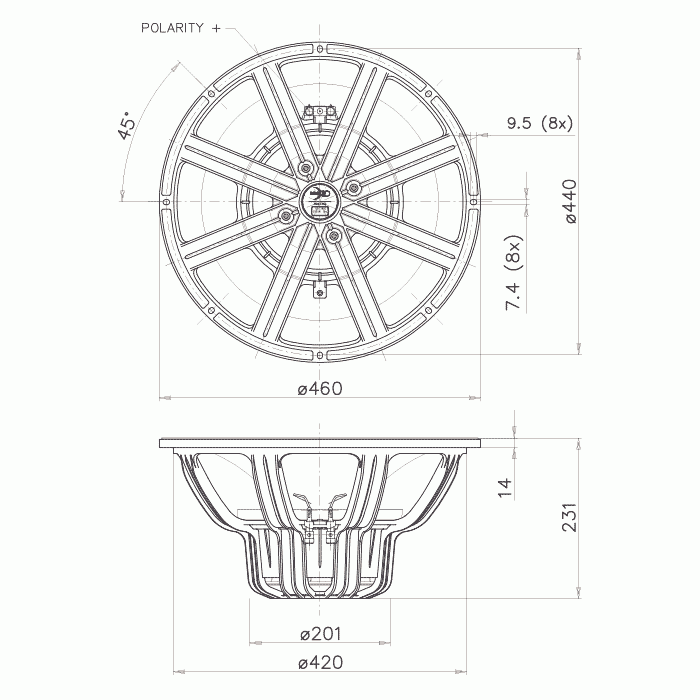

• Nominal Diameter: 460 mm (18 in)
• Overall Diameter: 460 mm (18.11 in)
• Bolt Circle Diameter: 440 mm (17.32 in)
• Baffle Cutout Diameter: 422 mm (16.61 in)
• Depth: 231 mm (9.09 in)
• Flange and Gasket Thickness: 14 mm (0.55 in)
• Net Weight: 12.2 Kg (26.9 lb)
• Shipping Box (Single Carton Box): 490 x 485 x 275 mm | (19.3 x 19.1 x 10.8 in)
• Shipping Weight: 13.7 Kg (30.2 lb)
THIELE AND SMALL PARAMETERS
• Fs: 32 Hz
• Re: 5.4 Ohm
• Qes: 0.37
• Qms: 9.3
• Qts: 0.36
• Vas: 211.4 dm^3 (7.47 ft^3)
• Sd: 1212 cm^2 (187.86 in^2)
• Xmax (4): 12.92 mm
• Xdamage (5): 28 mm
• Mms: 240.0 g
• Bl: 26.7 N/A
• Le: 1.45 mH
• Mmd: 192.3 g
• Cms: 0.10 mm/N
• Rms: 5.2 Kg/s
• Eta Zero: 1.84 %
• EBP: 86 Hz
