| Model: | 18HW 1070 |
| Manufacturer: | FAITAL PRO |
FaitalPro LF 18HW1070
FaitalPro LF 18HW1070 |
Loudspeakers 8 ohms |
18" - 1600 W - 97 dB
• Nominal Impedance: 8 Ohm
• Minimum Impedance: 6.5 Ohm
• AES Power Handling (1): 1600 W
• Maximum Power Handling (2): 3200 W
• Sensitivity (1W/1m): 97 dB
• Frequency Range: 30÷1500 Hz
• Voice Coil Diameter: 100 mm (4 in)
• Winding Material: Cu
• Former Material: Glass Fiber
• Winding Depth: 31 mm (1.22 in)
• Magnetic Gap Depth: 15 mm (0.59 in)
• Flux Density: 1.1 T
• Magnet: Ferrite Ring
• Basket Material: Aluminum
• Demodulation: Triple Al Dem. Ring
• Cone Surround (3): Triple Roll
• NET Air Volume filled by Loudspeaker: 7.4 dm^3 (0.261 ft^3)
• Spider Profile: 2x non-adjacent symmetrical constant height waves

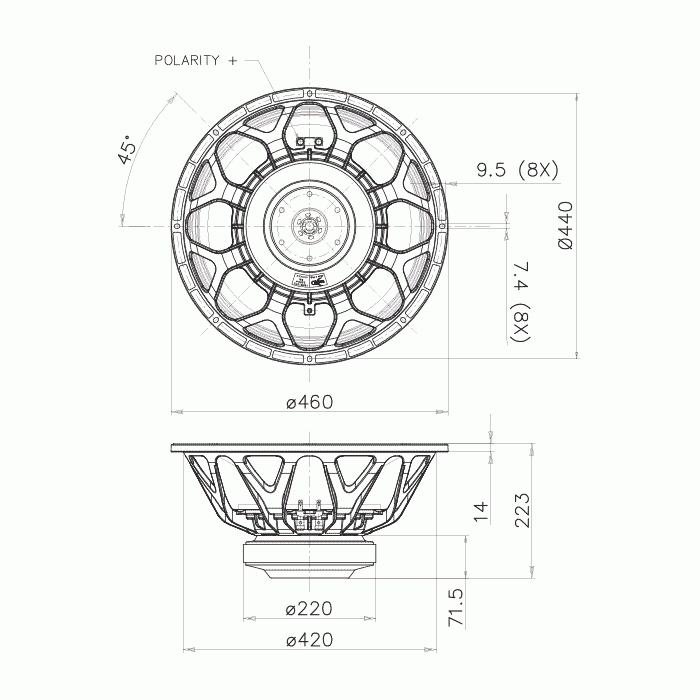

NOMINAL SPECIFICATIONS
• Nominal Diameter: 460 mm (18 in)
• Overall Diameter: 460 mm (18.11 in)
• Bolt Circle Diameter: 440 mm (17.32 in)
• Baffle Cutout Diameter: 422 mm (16.61 in)
• Depth: 223 mm (8.78 in)
• Flange and Gasket Thickness: 14 mm (0.55 in)
• Net Weight: 14.7 Kg (32.4 lb)
• Shipping Box (Single Carton Box): 490 x 485 x 275 mm | (19.3 x 19.1 x 10.8 in)
• Shipping Weight: 16.2 Kg (35.7 lb)
THIELE AND SMALL PARAMETERS
• Fs: 32 Hz
• Re: 5.4 Ohm
• Qes: 0.39
• Qms: 10.0
• Qts: 0.38
• Vas: 195.9 dm^3 (6.92 ft^3)
• Sd: 1212 cm^2 (187.86 in^2)
• Xmax (4): 13.00 mm
• Xdamage (5): 30 mm
• Mms: 259.0 g
• Bl: 27 N/A
• Le: 1.68 mH
• Mmd: 211.3 g
• Cms: 0.10 mm/N
• Rms: 5.2 Kg/s
• Eta Zero: 1.61 %
• EBP: 82 Hz
PART NUMBER (P/N)
• Push Terminals - 8 Ohm Version: 04604151
