FaitalPro 18HP1060 | |
LF Loudspeakers 8 ohms |
18" - 1200 W - 98 dB
• Nominal Impedance: 8 Ohm
• Minimum Impedance: 6.3 Ohm
• AES Power Handling (1): 1200 W
• Maximum Power Handling (2): 2400 W
• Sensitivity (1W/1m): 98 dB
• Frequency Range: 35÷1600 Hz
• Voice Coil Diameter: 100 mm (4 in)
• Winding Material: Cu
• Former Material: Glass Fiber
• Winding Depth: 28.9 mm (1.14 in)
• Magnetic Gap Depth: 12 mm (0.47 in)
• Flux Density: 1.22 T
• Magnet: Neodymium Ring
• Basket Material: Aluminum
• Demodulation: Aluminum Ring
• Cone Surround (3): Triple Roll
• NET Air Volume filled by Loudspeaker: 5.3 dm^3 (0.187 ft^3)
• Spider Profile: 2x non-adjacent symmetrical variable height waves

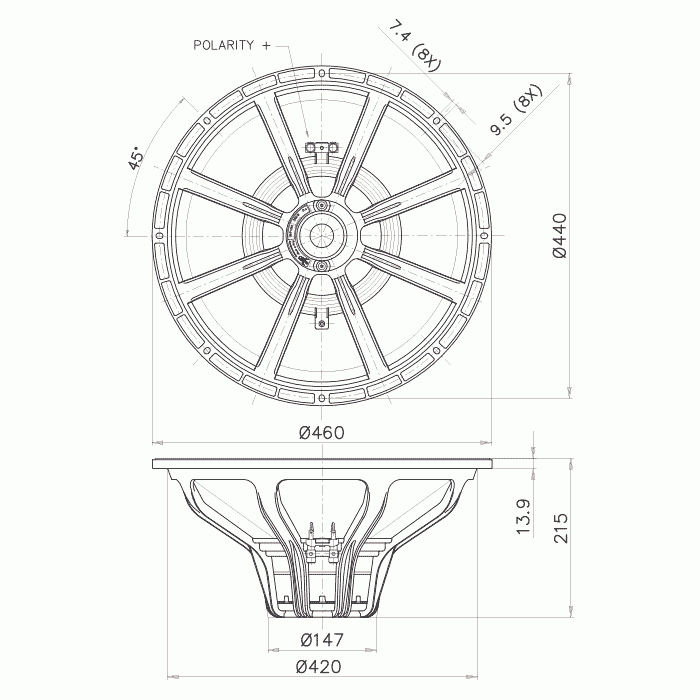

NOMINAL SPECIFICATIONS
• Nominal Diameter: 460 mm (18 in)
• Overall Diameter: 460 mm (18.11 in)
• Bolt Circle Diameter: 440 mm (17.32 in)
• Baffle Cutout Diameter: 422 mm (16.61 in)
• Depth: 215 mm (8.46 in)
• Flange and Gasket Thickness: 13.9 mm (0.55 in)
• Net Weight: 7.3 Kg (16.1 lb)
• Shipping Box (Single Carton Box): 503 x 500 x 258 mm | (19.8 x 19.7 x 10.2 in)
• Shipping Weight: 8.7 Kg (19.2 lb)
THIELE AND SMALL PARAMETERS
• Fs: 35 Hz
• Re: 5 Ohm
• Qes: 0.38
• Qms: 11.1
• Qts: 0.37
• Vas: 200.3 dm^3 (7.07 ft^3)
• Sd: 1212 cm^2 (187.86 in^2)
• Xmax (4): 12.45 mm
• Xdamage (5): 21 mm
• Mms: 211.8 g
• Bl: 24.8 N/A
• Le: 1.26 mH
• Mmd: 164.1 g
• Cms: 0.10 mm/N
• Rms: 4.2 Kg/s
• Eta Zero: 2.20 %
• EBP: 92 Hz
PART NUMBER (P/N)
• Push Terminals - 8 Ohm Version: 04604053
