FaitalPro 18HP1030 |
LF Loudspeakers 8 ohms |
18" - 1200 W - 98 dB
• Nominal Impedance: 8 Ohm
• Minimum Impedance: 6.5 Ohm
• AES Power Handling (1): 1200 W
• Maximum Power Handling (2): 2400 W
• Sensitivity (1W/1m): 98 dB
• Frequency Range: 35÷1600 Hz
• Voice Coil Diameter: 100 mm (4 in)
• Winding Material: Cu
• Former Material: Glass Fiber
• Winding Depth: 28.9 mm (1.14 in)
• Magnetic Gap Depth: 12 mm (0.47 in)
• Flux Density: 1.1 T
• Magnet: Ferrite Ring
• Basket Material: Aluminum
• Demodulation: Aluminum Ring
• Cone Surround (3): Triple Roll
• NET Air Volume filled by Loudspeaker: 6.5 dm^3 (0.230 ft^3)
• Spider Profile: 2x non-adjacent symmetrical constant height waves

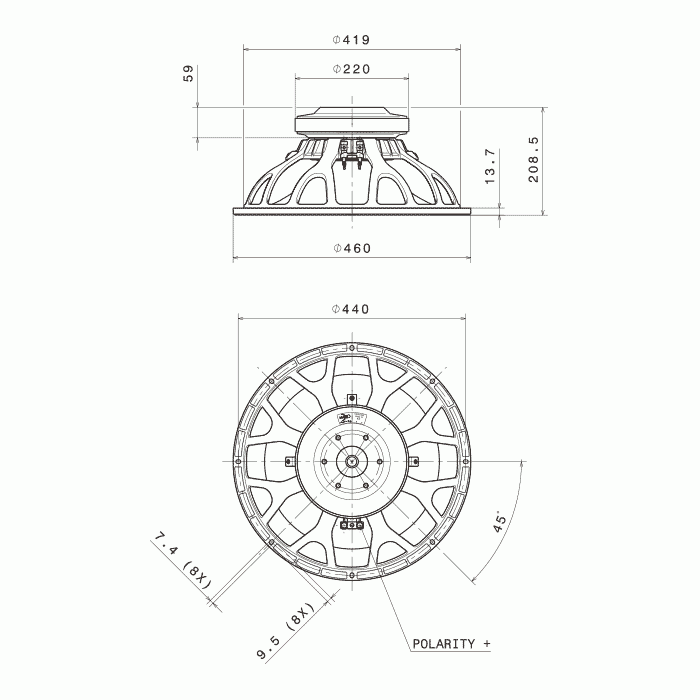

NOMINAL SPECIFICATIONS
• Nominal Diameter: 460 mm (18 in)
• Overall Diameter: 460 mm (18.11 in)
• Bolt Circle Diameter: 440 mm (17.32 in)
• Baffle Cutout Diameter: 421 mm (16.57 in)
• Depth: 208.5 mm (8.20 in)
• Flange and Gasket Thickness: 13.7 mm (0.54 in)
• Net Weight: 12.1 Kg (26.7 lb)
• Shipping Box (Single Carton Box): 503 x 500 x 258 mm | (19.8 x 19.7 x 10.2 in)
• Shipping Weight: 13.5 Kg (29.8 lb)
THIELE AND SMALL PARAMETERS
• Fs: 35 Hz
• Re: 5 Ohm
• Qes: 0.43
• Qms: 11.6
• Qts: 0.41
• Vas: 185.5 dm^3 (6.55 ft^3)
• Sd: 1212 cm^2 (187.86 in^2)
• Xmax (4): 12.45 mm
• Xdamage (5): 23.1 mm
• Mms: 228.6 g
• Bl: 24.3 N/A
• Le: 1.48 mH
• Mmd: 180.9 g
• Cms: 0.09 mm/N
• Rms: 4.3 Kg/s
• Eta Zero: 1.81 %
• EBP: 81 Hz
PART NUMBER (P/N)
• Push Terminals - 8 Ohm Version: 04604074
