FaitalPro 18HP1010 |
LF Loudspeakers 8 ohms |
18" - 1000 W - 98 dB
• Nominal Impedance: 8 Ohm
• Minimum Impedance: 6.9 Ohm
• AES Power Handling (1): 1000 W
• Maximum Power Handling (2): 2000 W
• Sensitivity (1W/1m): 98 dB
• Frequency Range: 35÷2000 Hz
• Voice Coil Diameter: 100 mm (4 in)
• Winding Material: Cu
• Former Material: Glass Fiber
• Winding Depth: 23 mm (0.91 in)
• Magnetic Gap Depth: 10.5 mm (0.41 in)
• Flux Density: 1.05 T
• Magnet: Ferrite Ring
• Basket Material: Aluminum
• Demodulation: No
• Cone Surround (3): Triple Roll
• NET Air Volume filled by Loudspeaker: 7.1 dm^3 (0.251 ft^3)
• Spider Profile: 2x non-adjacent symmetrical constant height waves

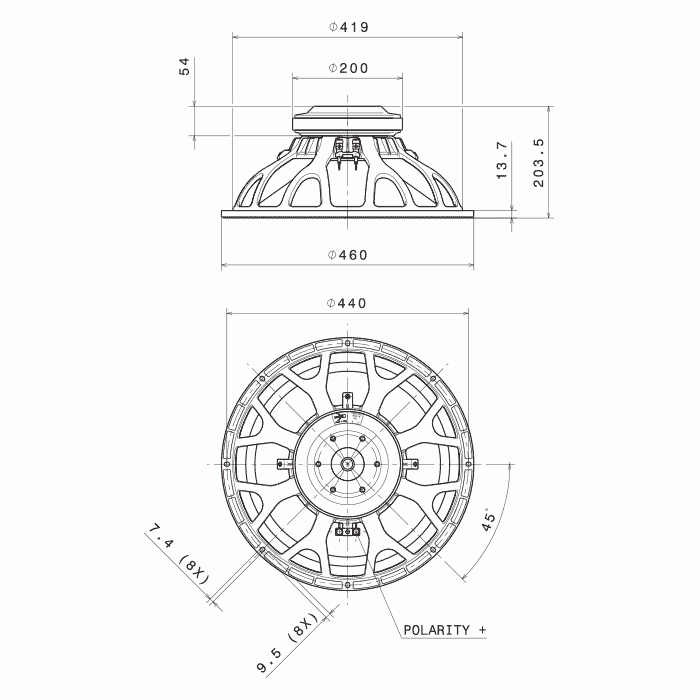

NOMINAL SPECIFICATIONS
• Nominal Diameter: 460 mm (18 in)|
• Overall Diameter: 460 mm (18.11 in)
• Bolt Circle Diameter: 440 mm (17.32 in)
• Baffle Cutout Diameter: 421 mm (16.57 in)
• Depth: 203.5 mm (8.01 in)
• Flange and Gasket Thickness: 13.7 mm (0.54 in)
• Net Weight: 10.1 Kg (22.3 lb)
• Shipping Box (Single Carton Box): 503 x 500 x 258 mm | (19.8 x 19.7 x 10.2 in)
• Shipping Weight: 11.5 Kg (25.4 lb)
THIELE AND SMALL PARAMETERS
• Fs: 35 Hz
• Re: 5.3 Ohm
• Qes: 0.42
• Qms: 7.8
• Qts: 0.40
• Vas: 240.1 dm^3 (8.48 ft^3)
• Sd: 1207 cm^2 (187.09 in^2)
• Xmax (4): 9.75 mm
• Xdamage (5): 21.9 mm
• Mms: 175.2 g
• Bl: 22 N/A
• Le: 1.8 mH
• Mmd: 127.8 g
• Cms: 0.12 mm/N
• Rms: 4.94 Kg/s
• Eta Zero: 2.37 %
• EBP: 83 Hz
PART NUMBER (P/N)
• Push Terminals - 8 Ohm Version: 04604071
FaitalPro 18HP1010
LF Loudspeakers 8 ohms
