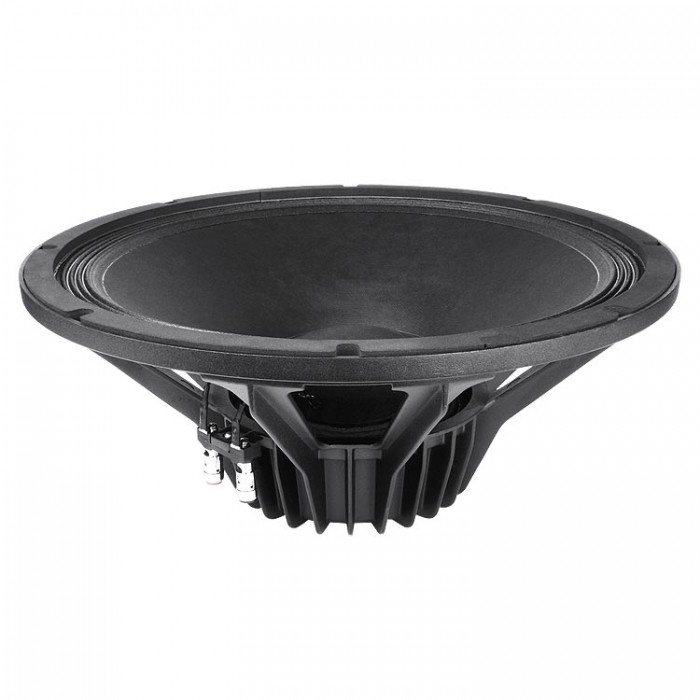

FaitalPro 15PR400 | LF Loudspeakers 8 ohms |
15" - 400 W - 99 dB |
• Nominal Impedance: 8 Ohm
• Minimum Impedance: 5.9 Ohm
• AES Power Handling (1): 400 W
• Maximum Power Handling (2): 800 W
• Sensitivity (1W/1m): 99 dB
• Frequency Range: 35÷4000 Hz
• Voice Coil Diameter: 77 mm (3 in)
• Winding Material: Al
• Former Material: Glass Fiber
• Winding Depth: 15 mm (0.59 in)
• Magnetic Gap Depth: 10.5 mm (0.41 in)
• Flux Density: 1.15 T
• Magnet: Neodymium Slug
• Basket Material: Aluminum
• Demodulation: No
• Cone Surround (3): Accordion (4 waves)
• NET Air Volume filled by Loudspeaker: 3.7 dm^3 (0.131 ft^3)
• Spider Profile: 1x constant height waves

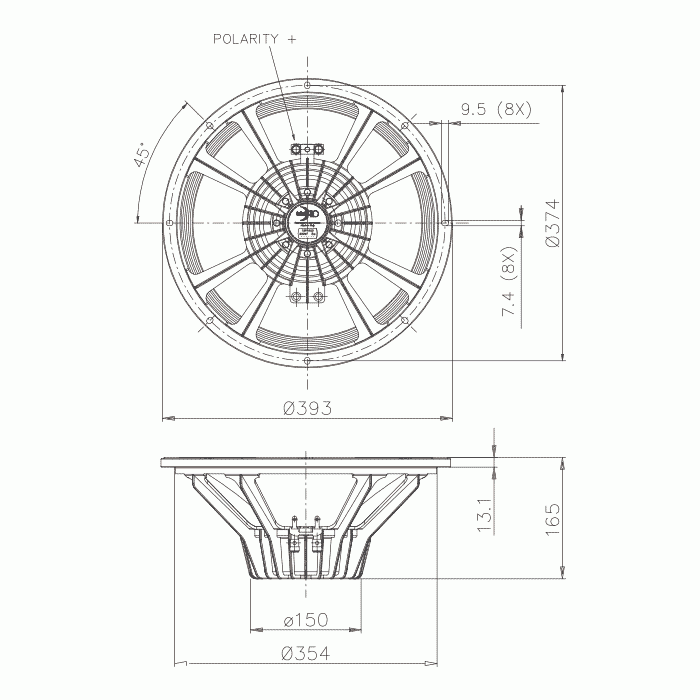

NOMINAL SPECIFICATIONS
• Nominal Diameter: 380 mm (15 in)
• Overall Diameter: 393 mm (15.47 in)
• Bolt Circle Diameter: 374 mm (14.72 in)
• Baffle Cutout Diameter: 356 mm (14.02 in)
• Depth: 165 mm (6.50 in)
• Flange and Gasket Thickness: 13.1 mm (0.52 in)
• Net Weight: 3.6 Kg (7.9 lb)
• Shipping Box (Single Carton Box): 430 x 427 x 236 mm | (16.9 x 16.8 x 9.3 in)
• Shipping Weight: 4.7 Kg (10.4 lb)
THIELE AND SMALL PARAMETERS
• Fs: 35 Hz
• Re: 5.1 Ohm
• Qes: 0.34
• Qms: 6.0
• Qts: 0.32
• Vas: 248.9 dm^3 (8.79 ft^3)
• Sd: 857 cm^2 (132.84 in^2)
• Xmax (4): 5.75 mm
• Xdamage (5): 15.5 mm:
• Mms: 85.2 g
• Bl: 16.7 N/A
• Le: 0.72 mH
• Mmd: 56.8 g
• Cms: 0.24 mm/N
• Rms: 3.1 Kg/s
• Eta Zero: 3.02 %
• EBP: 103 Hz
PART NUMBER (P/N)
• Push Terminals - 8 Ohm Version: 03803827
FaitalPro LF Loudspeakers | 15PR400 8 ohms
