FaitalPro 15HP1030 |
LF Loudspeakers 8 ohms |
15" - 1000 W - 96 dB
• Nominal Impedance: 8 Ohm
• Minimum Impedance: 6.7 Ohm
• AES Power Handling (1): 1000 W
• Maximum Power Handling (2): 2000 W
• Sensitivity (1W/1m): 96 dB
• Frequency Range: 40÷2000 Hz
• Voice Coil Diameter: 100 mm (4 in)
• Winding Material: Cu
• Former Material: Glass Fiber
• Winding Depth: 28.9 mm (1.14 in)
• Magnetic Gap Depth: 12 mm (0.47 in)
• Flux Density: 1.1 T
• Magnet: Ferrite Ring
• Basket Material: Aluminum
• Demodulation: Aluminum Ring
• Cone Surround (3): Triple Roll
• NET Air Volume filled by Loudspeaker: 5.1 dm^3 (0.180 ft^3)
• Spider Profile: 2x non-adjacent symmetrical variable height waves

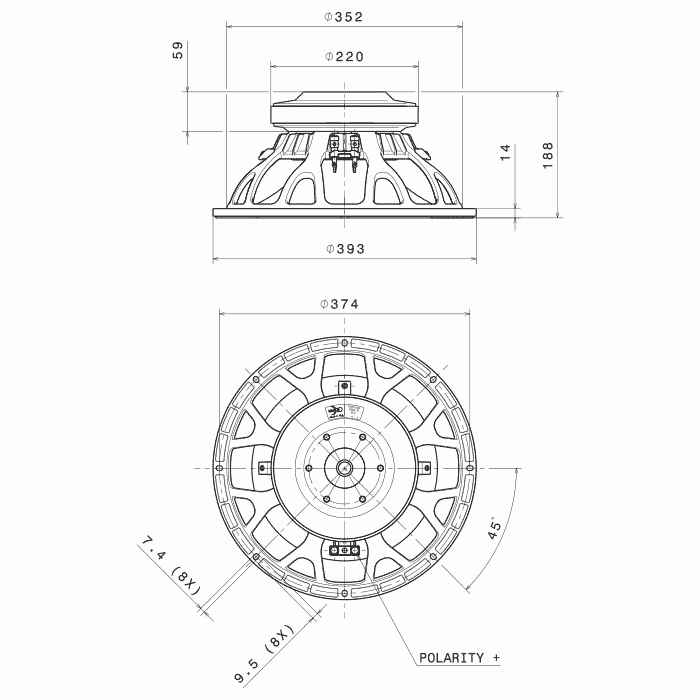

NOMINAL SPECIFICATIONS
• Nominal Diameter: 380 mm (15 in)
• Overall Diameter: 393 mm (15.47 in)
• Bolt Circle Diameter: 374 mm (14.72 in)
• Baffle Cutout Diameter: 354 mm (13.94 in)
• Depth: 188 mm (7.40 in)
• Flange and Gasket Thickness: 14 mm (0.55 in)
• Net Weight: 11.7 Kg (25.8 lb)
• Shipping Box (Single Carton Box): 430 x 427 x 236 mm | (16.9 x 16.8 x 9.3 in)
• Shipping Weight: 12.8 Kg (28.2 lb
THIELE AND SMALL PARAMETERS
• Fs: 40 Hz
• Re: 5 Ohm
• Qes: 0.35
• Qms: 11.8
• Qts: 0.34
• Vas: 95.0 dm^3 (3.35 ft^3)
• Sd: 842 cm^2 (130.51 in^2)
• Xmax (4): 12.45 mm
• Xdamage (5): 23.05 mm
• Mms: 165.0 g
• Bl: 24.3 N/A
• Le: 1.4 mH
• Mmd: 137.4 g
• Cms: 0.10 mm/N
• Rms: 3.5 Kg/s
• Eta Zero: 1.68 %
• EBP: 114 Hz
PART NUMBER (P/N)
• Push Terminals - 8 Ohm Version: 03804073
