FaitalPro 15HP1010 |
LF Loudspeakers 8 ohms |
15" - 700 W - 96 dB
• Nominal Impedance: 8 Ohm
• Minimum Impedance: 6.9 Ohm
• AES Power Handling (1): 700 W
• Maximum Power Handling (2): 1400 W
• Sensitivity (1W/1m): 96 dB
• Frequency Range: 40÷2500 Hz
• Voice Coil Diameter: 100 mm (4 in)
• Winding Material: Cu
• Former Material: Glass Fiber
• Winding Depth: 23 mm (0.91 in)
• Magnetic Gap Depth: 10.5 mm (0.41 in)
• Flux Density: 1.05 T
• Magnet: Ferrite Ring
• Basket Material: Aluminum
• Demodulation: No
• Cone Surround (3): Triple Roll
• NET Air Volume filled by Loudspeaker: 4.7 dm^3 (0.166 ft^3)
• Spider Profile: 2x non-adjacent symmetrical constant height waves

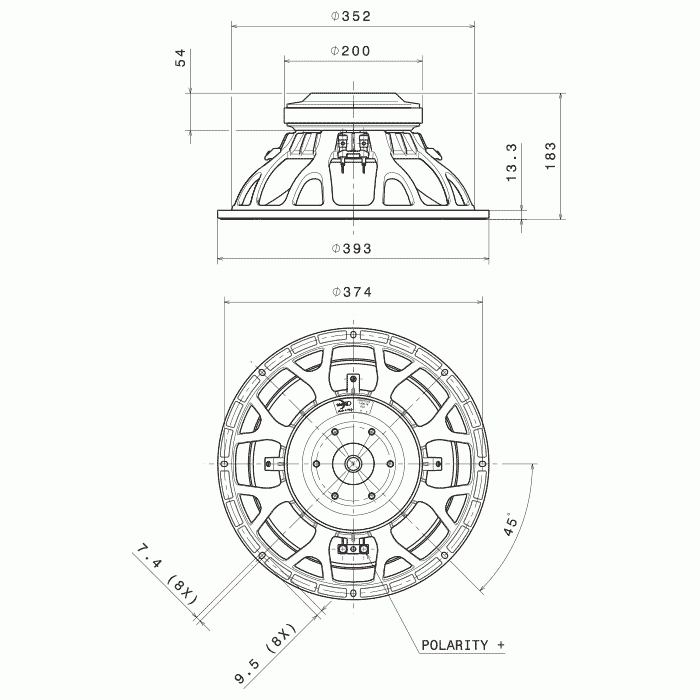

NOMINAL SPECIFICATIONS
• Nominal Diameter: 380 mm (15 in)
• Overall Diameter: 393 mm (15.47 in)
• Bolt Circle Diameter: 374 mm (14.72 in)
• Baffle Cutout Diameter: 354 mm (13.94 in)
• Depth: 183 mm (7.20 in)
• Flange and Gasket Thickness: 13.3 mm (0.52 in)
• Net Weight: 9.8 Kg (21.5 lb)
• Shipping Box (Single Carton Box): 430 x 427 x 236 mm | (16.9 x 16.8 x 9.3 in)
• Shipping Weight: 10.8 Kg (23.8 lb)
THIELE AND SMALL PARAMETERS
• Fs: 40 Hz
• Re: 5.3 Ohm
• Qes: 0.38
• Qms: 10.0
• Qts: 0.37
• Vas: 107.5 dm^3 (3.80 ft^3)
• Sd: 822 cm^2 (127.41 in^2)
• Xmax (4): 9.75 mm
• Xdamage (5): 21.9 mm
• Mms: 138.9 g
• Bl: 22 N/A
• Le: 1.8 mH
• Mmd: 112.3 g
• Cms: 0.11 mm/N
• Rms: 3.5 Kg/s
• Eta Zero: 1.75 %
• EBP: 105 Hz
PART NUMBER (P/N)
• Push Terminals - 8 Ohm Version: 03804070
FaitalPro 15HP1010
LF Loudspeakers 8 ohms
