FaitalPro 15FX560 |
LF Loudspeakers 8 ohms |
15" - 700 W - 99 dB
• Nominal Impedance: 8 Ohm
• Minimum Impedance: 6.5 Ohm
• AES Power Handling (1): 700 W
• Maximum Power Handling (2): 1400 W
• Sensitivity (1W/1m): 99 dB
• Frequency Range: 40÷4000 Hz
• Voice Coil Diameter: 77 mm (3 in)
• Winding Material: Al
• Former Material: Glass Fiber
• Winding Depth: 23.5 mm (0.93 in)
• Magnetic Gap Depth: 14 mm (0.55 in)
• Flux Density: 1.1 T
• Magnet: Neodymium Slug Crown
• Basket Material: Aluminum
• Demodulation: Aluminum Ring
• Cone Surround (3): Triple Roll
• NET Air Volume filled by Loudspeaker: 4.1 dm^3 (0.145 ft^3)
• Spider Profile: 1x variable height waves
NOMINAL SPECIFICATIONS

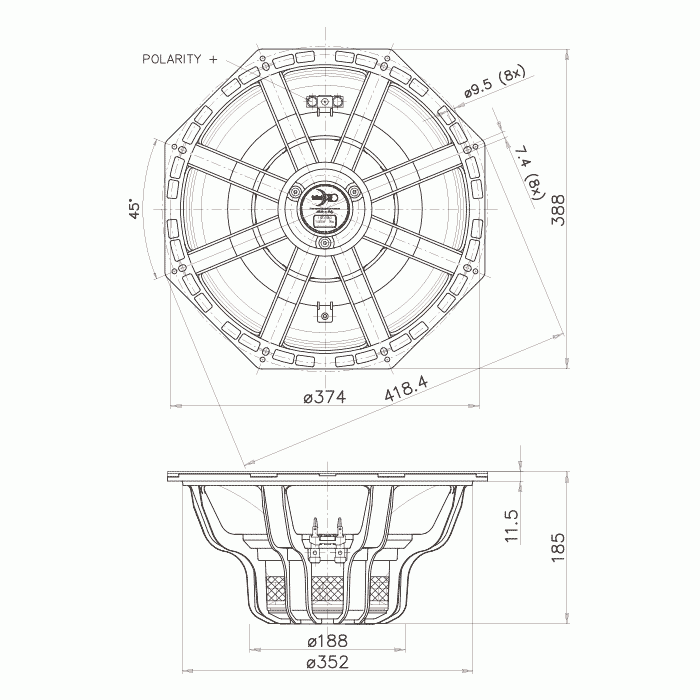

• Nominal Diameter: 380 mm (15 in)
• Overall Diameter: 418.4/388 mm (16.46/15.28 in)
• Bolt Circle Diameter: 374 mm (14.72 in)
• Baffle Cutout Diameter: 354 mm (13.98 in)
• Depth: 185 mm (7.28 in)
• Flange and Gasket Thickness: 11.5 mm (0.45 in)
• Net Weight: 7.5 Kg (16.5 lb)
• Shipping Box (Single Carton Box): 430 x 427 x 236 mm | (16.9 x 16.8 x 9.3 in)
• Shipping Weight: 8.6 Kg (19.0 lb)
THIELE AND SMALL PARAMETERS
• Fs: 38 Hz
• Re: 5.2 Ohm
• Qes: 0.31
• Qms: 6.8
• Qts: 0.30
• Vas: 159.0 dm^3 (5.62 ft^3)
• Sd: 864 cm^2 (133.92 in^2)
• Xmax (4): 9.42 mm
• Xdamage (5): 21.8 mm
• Mms: 115.0 g
• Bl: 21.5 N/A
• Le: 0.64 mH
• Mmd: 86.3 g
• Cms: 0.15 mm/N
• Rms: 4.0 Kg/s
• Eta Zero: 2.74 %
• EBP: 123 Hz
PART NUMBER (P/N)
• Push Terminals - 8 Ohm Version: 03803997
