FaitalPro 15FH520 |
LF Loudspeakers 8 ohms |
15" - 600 W - 98 dB
• Nominal Impedance: 8 Ohm
• Minimum Impedance: 6.9 Ohm
• AES Power Handling (1): 600 W
• Maximum Power Handling (2): 1200 W
• Sensitivity (1W/1m): 98 dB
• Frequency Range: 40÷4000 Hz
• Voice Coil Diameter: 77 mm (3 in)
• Winding Material: Al
• Former Material: Glass Fiber
• Winding Depth: 21.5 mm (0.85 in)
• Magnetic Gap Depth: 12 mm (0.47 in)
• Flux Density: 1.1 T
• Magnet: Neodymium Slug
• Basket Material: Aluminum
• Demodulation: Aluminum Ring
• Cone Surround (3): Triple Roll
• NET Air Volume filled by Loudspeaker: 3.4 dm^3 (0.120 ft^3)
• Spider Profile: 1x variable height waves

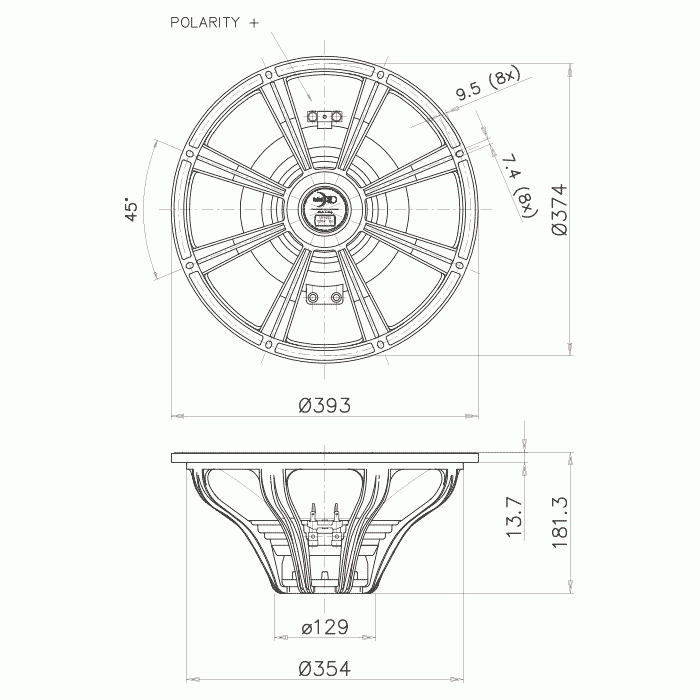

NOMINAL SPECIFICATIONS
Nominal Diameter: 380 mm (15 in)
Overall Diameter: 393 mm (15.47 in)
Bolt Circle Diameter: 374 mm (14.72 in)
Baffle Cutout Diameter: 356 mm (14.02 in)
Depth: 181.3 mm (7.14 in)
Flange and Gasket Thickness: 13.7 mm (0.54 in)
Net Weight: 4.6 Kg (10.1 lb)
Shipping Box (Single Carton Box): 430 x 427 x 236 mm | (16.9 x 16.8 x 9.3 in)
Shipping Weight: 5.7 Kg (12.6 lb)
THIELE AND SMALL PARAMETERS
• Fs: 36 Hz
• Re: 5.6 Ohm
• Qes: 0.41
• Qms: 10.1
• Qts: 0.39
• Vas: 186.5 dm^3 (6.59 ft^3)
• Sd: 847 cm^2 (131.29 in^2)
• Xmax (4): 8.75 mm
• Xdamage (5): 16 mm
• Mms: 105 g
• Bl: 18.4 N/A
• Le: 0.89 mH
• Mmd: 77.1 g
• Cms: 0.19 mm/N
• Rms: 2.4 Kg/s
• Eta Zero: 2.15 %
• EBP: 88 Hz
PART NUMBER (P/N)
• Push Terminals - 8 Ohm Version: 03803974
FaitalPro 15FH520
LF Loudspeakers 8 ohms
