FaitalPro 15FH500 |
LF Loudspeakers 8 ohms |
15" - 500 W - 98 dB - 8 Ohm
• Nominal Impedance: 8 Ohm
• Minimum Impedance: 6 Ohm
• AES Power Handling (1): 500 W
• Maximum Power Handling (2): 1000 W
• Sensitivity (1W/1m): 98 dB
• Frequency Range: 35÷3150 Hz
• Voice Coil Diameter: 77 mm (3 in)
• Winding Material: Cu
• Former Material: Glass Fiber
• Winding Depth: 22 mm (0.87 in)
• Magnetic Gap Depth: 10.5 mm (0.41 in)
• Flux Density: 1.2 T
• Magnet: Neodymium Slug
• Basket Material: Aluminum
• Demodulation: No
• Cone Surround (3): M-Roll
• NET Air Volume filled by Loudspeaker: 3.4 dm^3 (0.120 ft^3)
• Spider Profile: 1x variable height waves

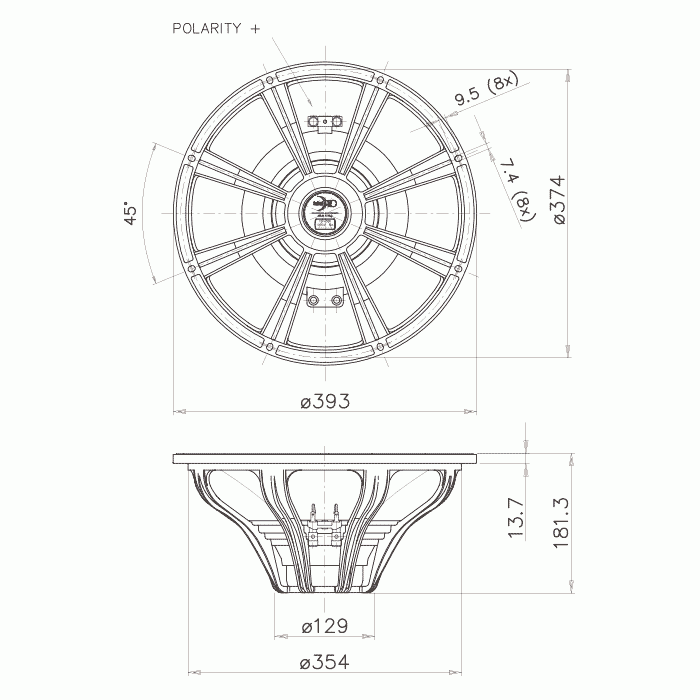

NOMINAL SPECIFICATIONS
• Nominal Diameter: 380 mm (15 in)
• Overall Diameter: 393 mm (15.47 in)
• Bolt Circle Diameter: 374 mm (14.72 in)
• Baffle Cutout Diameter: 356 mm (14.02 in)
• Depth: 181.3 mm (7.14 in)
• Flange and Gasket Thickness: 13.7 mm (0.54 in)
• Net Weight: 4.3 Kg (9.5 lb)
• Shipping Box Single Carton Box): 430 x 427 x 236 mm (16.9 x 16.8 x 9.3 in):
• Shipping Weight: 5.4 Kg (11.9 lb)
THIELE AND SMALL PARAMETERS
• Fs: 35 Hz
• Re: 5.1 Ohm
• Qes: 0.32
• Qms: 10.4
• Qts: 0.31
• Vas: 199.2 dm^3 (7.03 ft^3)
• Sd: 847 cm^2 (131.29 in^2)
• Xmax (4): 9.25 mm
• Xdamage (5): 16 mm
• Mms: 104.0 g
• Bl: 19.2 N/A
• Le: 1.3 mH
• Mmd: 76.1 g
• Cms: 0.20 mm/N
• Rms: 2.2 Kg/s
• Eta Zero: 2.62 %
• EBP: 109 Hz
PART NUMBER (P/N)
• Push Terminals - 8 Ohm Version: 03803926
FaitalPro 15FH500
LF Loudspeakers 8 ohms
