FaitalPro 12RS1066 |
LF Loudspeakers 8 ohms |
12" - 1000 W - 93 dB
• Nominal Impedance: 8 Ohm
• Minimum Impedance: 6.5 Ohm
• AES Power Handling (1): 1000 W
• Maximum Power Handling (2): 2000 W
• Sensitivity (1W/1m): 93 dB
• Frequency Range: 45÷2500 Hz
• Voice Coil Diameter: 100 mm (4 in)
• Winding Material: Cu
• Former Material: Glass Fiber
• Winding Depth: 28.9 mm (1.14 in)
• Magnetic Gap Depth: 12 mm (0.47 in)
• Flux Density: 1.22 T
• Magnet: Neodymium Ring
• Basket Material: Aluminum
• Demodulation: Aluminum Ring
• Cone Surround (3): Half Roll
• NET Air Volume filled by Loudspeaker: 2.9 dm^3 (0.102 ft^3)
• Spider Profile: 2x non-adjacent symmetrical variable height waves

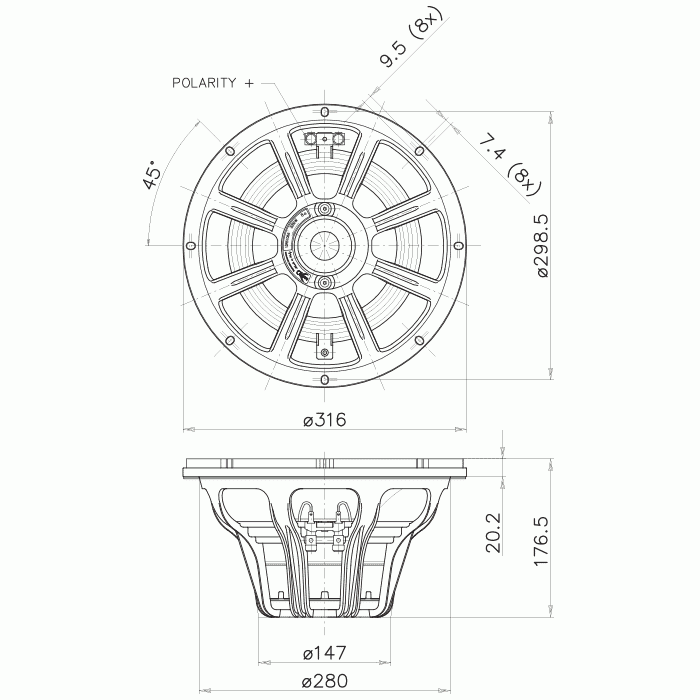

NOMINAL SPECIFICATIONS
• Nominal Diameter: 300 mm (12 in)
• Overall Diameter: 316 mm (12.44 in)
• Bolt Circle Diameter: 298.5 mm (11.75 in)
• Baffle Cutout Diameter: 282 mm (11.10 in)
• Depth: 176.5 mm (6.95 in)
• Flange and Gasket Thickness: 20.2 mm (0.80 in)
• Net Weight: 6.6 Kg (14.6 lb)
• Shipping Box (Single Carton Box): 350 x 346 x 216 mm | (13.8 x 13.6 x 8.5 in)
• Shipping Weight: 7.3 Kg (16.1 lb)
THIELE AND SMALL PARAMETERS
• Fs: 42 Hz
• Re: 5 Ohm
• Qes: 0.34
• Qms: 13.9
• Qts: 0.33
• Vas: 31.5 dm^3 (1.11 ft^3)
• Sd: 496 cm^2 (76.88 in^2)
• Xmax (4): 12.45 mm
• Xdamage (5): 20.5 mm
• Mms: 156.5 g
• Bl: 24.8 N/A
• Le: 1.35 mH
• Mmd: 144.0 g
• Cms: 0.09 mm/N
• Rms: 3.0 Kg/s
• Eta Zero: 0.67 %
• EBP: 124 Hz
PART NUMBER (P/N)
• Push Terminals - 8 Ohm Version: 03004219
