FaitalPro 12PR330 |
LF Loudspeakers 8 ohms |
12" - 300 W - 98 dB
• Nominal Impedance: 8 Ohm
• Minimum Impedance: 6.6 Ohm
• AES Power Handling (1): 300 W
• Maximum Power Handling (2): 600 W
• Sensitivity (1W/1m): 98 dB
• Frequency Range: 50÷4000 Hz
• Voice Coil Diameter: 65 mm (2.56 in)
• Winding Material: Al
• Former Material: Glass Fiber
• Winding Depth: 17.4 mm (0.69 in)
• Magnetic Gap Depth: 8 mm (0.31 in)
• Flux Density: 1.2 T
• Magnet: Ferrite Ring
• Basket Material: Aluminum
• Demodulation: No
• Cone Surround (3): M-Roll
• NET Air Volume filled by Loudspeaker: 1.9 dm^3 (0.067 ft^3)
• Spider Profile: 1x variable height waves

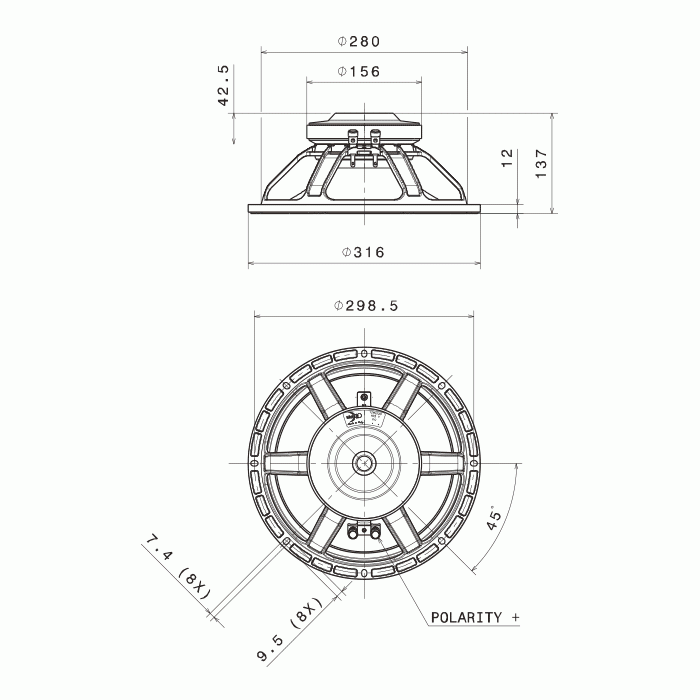

NOMINAL SPECIFICATIONS
• Nominal Diameter: 300 mm (12 in)
• Overall Diameter: 316 mm (12.44 in)
• Bolt Circle Diameter: 298.5 mm (11.75 in)
• Baffle Cutout Diameter: 282 mm (11.10 in)
• Depth: 135 mm (5.31 in)
• Flange and Gasket Thickness: 12 mm (0.47 in)
• Net Weight: 4.3 Kg (9.5 lb)
• Shipping Box (Single Carton Box): 350 x 346 x 190 mm | (13.8 x 13.6 x 7.5 in)
• Shipping Weight: 5 Kg (11.0 lb)
THIELE AND SMALL PARAMETERS
• Fs: 50 Hz
• Re: 5.3 Ohm
• Qes: 0.42
• Qms: 10.9
• Qts: 0.40
• Vas: 79.1 dm^3 (2.79 ft^3)
• Sd: 533 cm^2 (82.62 in^2)
• Xmax (4): 7.37 mm
• Xdamage (5): 15.25 mm
• Mms: 50.8 g
• Bl: 14.2 N/A
• Le: 0.76 mH
• Mmd: 36.9 g
• Cms: 0.20 mm/N
• Rms: 1.5 Kg/s
• Eta Zero: 2.29 %
• EBP: 119 Hz
PART NUMBER (P/N)
• Push Terminals - 8 Ohm Version: 03004244
FaitalPro 12PR330
LF Loudspeakers 8 ohms
