FaitalPro 12HP1030 |
LF Loudspeakers 8 ohms |
12" - 1000 W - 95 dB
• Nominal Impedance: 8 Ohm
• Minimum Impedance: 6.7 Ohm
• AES Power Handling (1): 1000 W
• Maximum Power Handling (2): 2000 W
• Sensitivity (1W/1m): 95 dB
• Frequency Range: 45÷1600 Hz
• Voice Coil Diameter: 100 mm (4 in)
• Winding Material: Cu
• Former Material: Glass Fiber
• Winding Depth: 28.9 mm (1.14 in)
• Magnetic Gap Depth: 12 mm (0.47 in)
• Flux Density: 1.1 T
• Magnet: Ferrite Ring
• Basket Material: Aluminum
• Demodulation: Aluminum Ring
• Cone Surround (3): Triple Roll
• NET Air Volume filled by Loudspeaker: 3.7 dm^3 (0.131 ft^3)
• Spider Profile: 2x non-adjacent symmetrical variable height waves

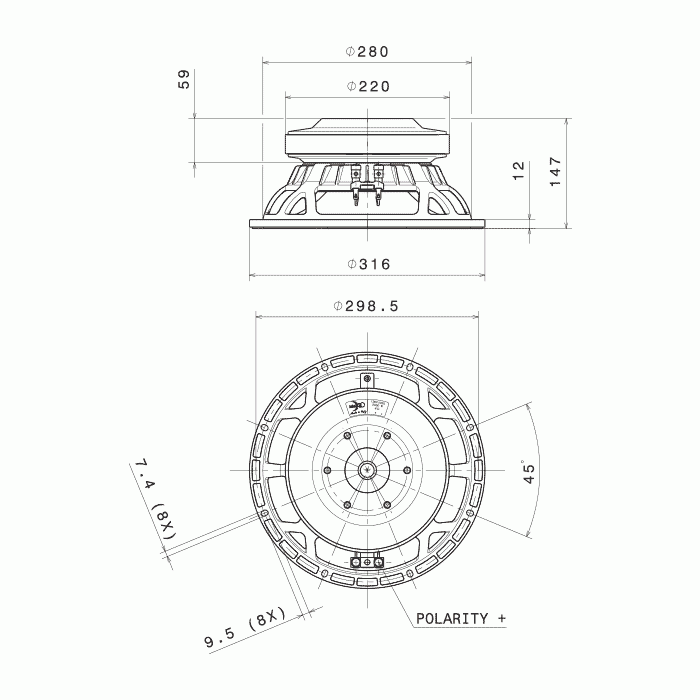

NOMINAL SPECIFICATIONS
• Nominal Diameter: 300 mm (12 in)
• Overall Diameter: 316 mm (12.44 in)
• Bolt Circle Diameter: 298.5 mm (11.75 in)
• Baffle Cutout Diameter: 282 mm (11.10 in)
• Depth: 147 mm (5.79 in)
• Flange and Gasket Thickness: 12 mm (0.47 in)
• Net Weight: 11.1 Kg (24.5 lb)
• Shipping Box (Single Carton Box): 350 x 346 x 190 mm (13.8 x 13.6 x 7.5 in)
• Shipping Weight | 11.8 Kg (26.0 lb)
THIELE AND SMALL PARAMETERS
• Fs: 45 Hz
• Re: 5 Ohm
• Qes: 0.31
• Qms: 13.8
• Qts: 0.30
• Vas: 35.9 dm^3 (1.27 ft^3)
• Sd: 518 cm^2 (80.29 in^2)
• Xmax (4): 12.45 mm
• Xdamage (5): 20.5 mm
• Mms: 130.5 g
• Bl: 24.3 N/A
• Le: 1.35 mH
• Mmd: 117.2 g
• Cms: 0.10 mm/N
• Rms: 2.7 Kg/s
• Eta Zero: 1.02 %
• EBP: 145 Hz
PART NUMBER (P/N)
• Push Terminals - 8 Ohm Version: 03004072
